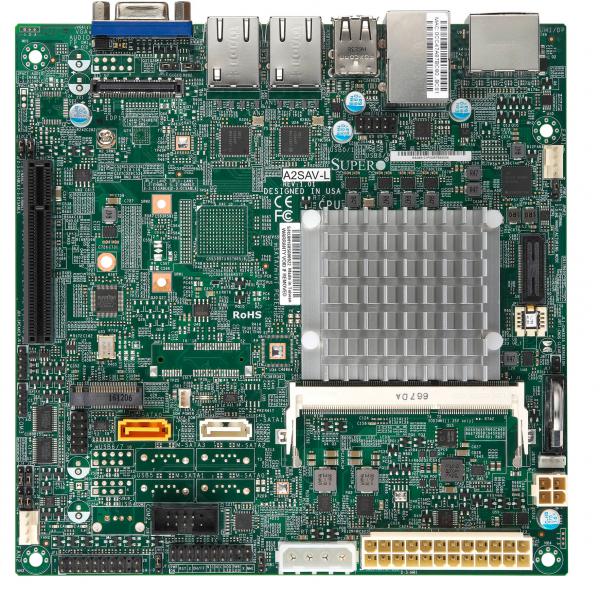

A2SAV-L

A2SAV-L
Embedded

Key Features


  1. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
  2. Intel® Atom processor E3940 (9W, 4C)
  3. 1 PCIe 2.0 x2 (in x8), and 2 SATA 3.0
  4. Dual GbE LAN with Intel® i210-AT
  5. Intel® Goldmont microarchitecture 14nm System-on-Chip
  6. 1 M.2 M-key with SATA
  7. 12V DC Input and ATX Power Source
  8. 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays
  9. 2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector
...
...

Optimized Servers


SYS-E200-9AP
Specifications Resources Parts List
Specifications
Product SKUs
MBD-A2SAV-L
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® Atom® Processor E3940
  • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9W TDP
System Memory
Memory Capacity
  • 1 DIMM slots
Memory Type
  • 1866 MT/s DDR3L up to 8GB
DIMM Sizes
  • 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 2 SATA3 (6 Gbps) ports
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210IT
Input / Output
USB
  • 4 USB 2.0 port(s) (2 via header; 2 rear)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
Serial Port
  • 3 COM Port(s) (1 rear; 2 header)
Others
  • 1 COM in RJ45
  • 1 COM in RS232
  • 1 COM in RS485
Expansion Slots
PCIe
  • 1 PCIe 2.0 x2 (in x8 slot)
M.2
  • Form Factor: 2280, 2242
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
Voltage
  • +5V standby, +5V, +12V
FAN
  • 2x 4-pin fan headers (up to 2 fans)
  • PWM fan speed control
  • Low noise fan speed control
  • Fan speed control
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • -30°C - 70°C (-22°F - 158°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Servers (Optimized for A2SAV-L)
SYS-E200-9AP
...
Chassis
SC505-203B
SC504-203B
SC721TQ-250B
...
  1. = Optimized SuperServer Chassis
  2. = Optimized Global Chassis
  3. Blue color = Compatible Chassis
  4. = Compatible Global Chassis
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

A2SAV-L

Certain products may not be available in your region
