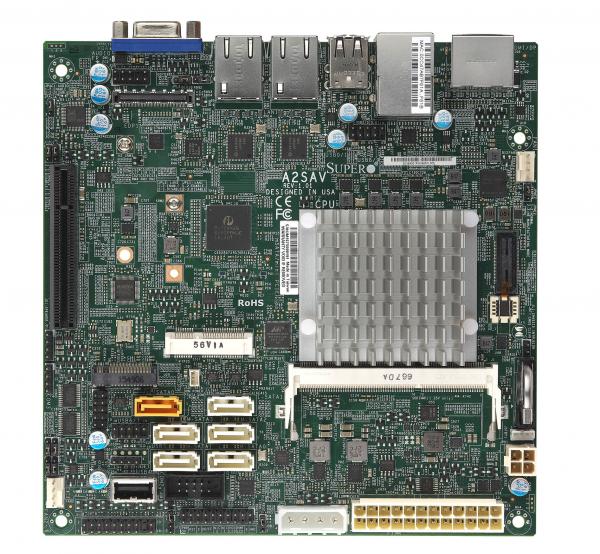

A2SAV

Embedded

Key Features


  1. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
  2. Intel® Atom processor E3940 (9W, 4C)
  3. 1 PCIe 2.0 x2 (in x8), 1 Mini-PCIe (mSATA support) and 2 SATA 3.0
  4. Dual GbE LAN with Intel® i210-AT
  5. Intel® Goldmont microarchitecture 14nm System-on-Chip
  6. 1 M.2 M-key with SATA
  7. 4 SATA 3.0 (RAID 0, 1, 10)
  8. 1 HDMI, 1 DP, 1 VGA, Intel HD Graphic 3 independent displays
  9. 12V DC Input and ATX Power Source
  10. 2 USB 3.0 ports, 7 USB 2.0 ports, 3 COM ports, and 1 DOM connector
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-A2SAV
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® Atom® Processor E3940
  • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9W TDP
System Memory
Memory Capacity
  • 1 DIMM slots
Memory Type
  • 1866 MT/s DDR3L up to 8GB
DIMM Sizes
  • 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 2 SATA3 (6 Gbps) ports
  • Marvel 88SE9230 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,10
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210-AT
Input / Output
USB
  • 8 USB 2.0 port(s) (2 rear; 5 via header; 1 Type A)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
Serial Port
  • 3 COM Port(s) (1 rear; 2 header)
Others
  • 1 COM in RJ45
  • 1 COM in RS232
  • 1 COM in RS485
Expansion Slots
PCIe
  • 1 PCIe 2.0 x2 (in x8 slot)
  • 1x Mini-PCIe with mSATA
M.2
  • Form Factor: 2280, 2242
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
Voltage
  • System level control, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V, +1.8V
FAN
  • 2x 4-pin fan headers (up to 2 fans)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Low noise fan speed control
  • Fan speed control
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Servers (Optimized for A2SAV)
Chassis
Component Options
Software
Documentation
Parts List

A2SAV

Certain products may not be available in your region
