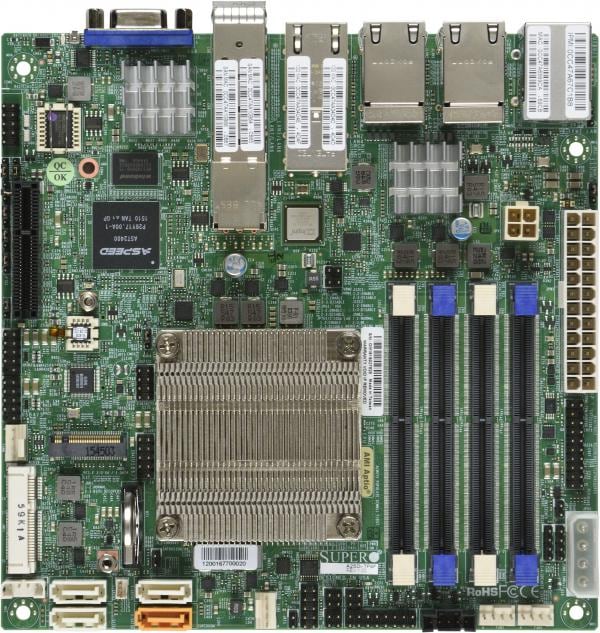

A2SDi-TP8F

Key Features


  1. Intel® Atom® Processor C3858.
    Single Socket FCBGA-1310 supported, CPU TDP support Up to 25W TDP
  2. Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2400MHz, in 4 DIMM slots
  3. 1 PCIe 3.0 x4
    1 miniPCIe with mSATA supports (half card only)
    M.2 Interface: PCIe 3.0 x4 and SATA
    M.2 Form Factor: 2242, 2280
    M.2 Key: M-Key
  4. SoC controller for 4 SATA3 (6 Gbps) ports;
  5. Quad LAN with Intel® C3000 SoC
    2 10GBaseT, 2 10Gb SFP+
    Quad LAN with Intel® Ethernet Controller I350-AM4
    1GbE
  6. 1 VGA port
  7. System on Chip
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-A2SDi-TP8F
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® Atom® Processor C3858
  • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
Core
  • Up to 12 cores, 12 threads / 12MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 64GB Unbuffered ECC/non-ECC SODIMM, DDR4-2400MT/s
Memory Type
  • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 SODIMM Unbuffered
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2400 BMC
Graphics
  • 1 ASPEED AST2400 BMC port(s)
Network Controllers
  • Quad LAN with Intel® C3000 SoC, 2 10GBaseT, 2 10Gb SFP+
  • Quad LAN with Intel® Ethernet Controller I350-AM4, 1GbE
Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 10G SFP+ LAN ports
  • 2 RJ45 10GBase-T ports
USB
  • 4 USB 2.0 port(s) (4 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x4
  • 1 miniPCIe with mSATA supports (half card only)
M.2
  • M.2 Interface: PCIe 3.0 x4; SATA
  • Form Factor: 2242, 2280
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1
Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, IPMI2.0, Watchdog
System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V, +12V, +1.8V, VCGI
LED
  • UID/Remote UID
Temperature
  • CPU thermal trip support
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication, Support 3-pin fans (w/o speed control)
Other Features
  • WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Resources
Servers (Optimized for A2SDi-TP8F)
Chassis
Component Options
Software
Documentation
Parts List

A2SDi-TP8F
