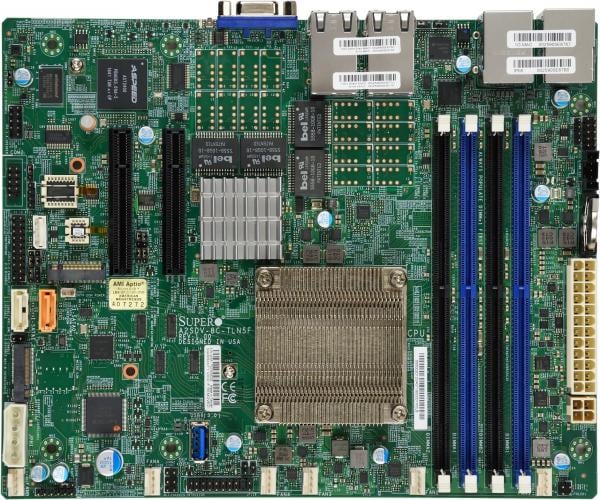

A2SDV-16C-TLN5F

16-Core Denverton
Quad 10GbE LAN
Intel® Quick Assist Technology
IPMI

Key Features


  1. Intel Atom Processor C3958,
    Single Socket FCBGA1310 supported,
    CPU TDP support 31W
  2. Intel Quick Assist Technology
  3. Up to 256GB Registered ECC DDR4-2400MHz,
    Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
  4. Expansion slots:
    1 PCIe 3.0 x8 (Slot 6 or 7 option)
  5. M.2 Interfaces:
    1 M-Key 2242/80 supports PCIe 3.0 x2/SATA
    1 B-Key 3042/2280 supports PCIe 3.0 x2/SATA/USB
  6. 4x 10GbE LAN ports,
    1x 1GbE LAN port (IPMI shared LAN)
  7. 2 SATA3 (6 Gbps) ports
  8. Supports 12V DC power input
  9. System on Chip
  10. I/O: 1 VGA, 2 COM (1 via header, 1 rear RJ45), TPM header
  11. 5 USB 3.0 (4 rear, Type-A)
    2 USB 2.0 (2 via headers)
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-A2SDV-16C-TLN5F
Physical Stats
Form Factor
  • Flex ATX
Dimension
  • 9" x 7.25" (22.86cm x 18.42cm)
Processor
CPU
  • Intel® Atom® Processor C3958
  • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 31W TDP
Core
  • Up to 16 cores, 16 threads / 16MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 256GB ECC RDIMM, DDR4-2400MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
Memory Type
  • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 2 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2400 BMC
Graphics
  • 1 ASPEED AST2400 BMC port(s)
Network Controllers
  • Quad LAN with 10GBase-T with Intel® X557
  • Single LAN with Intel® i210 Gigabit Ethernet Controller
Input / Output
LAN
  • 4 RJ45 10GBase-T ports
  • 1 RJ45 GbE port (IPMI Shared LAN)
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 5 USB 3.2 Gen1 port(s) (4 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x8
  • Option for Slot 6 or Slot 7
M.2
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1
Management
Software
  • SuperDoctor® 5, NMI, IPMI2.0, Watchdog
System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
Temperature
  • CPU thermal trip support
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Other Features
  • WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology, Innovation Engine, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
