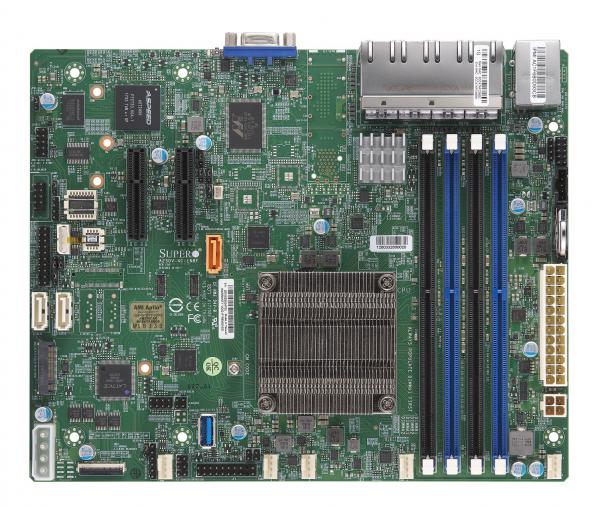

A2SDV-4C-LN8F

4-Core Denverton
Eight 1GbE RJ45
Intel® Quick Assist Technology

Key Features


  1. Intel® Atom® Processor C3558,
    Single Socket FCBGA1310 supported,
    CPU TDP support 16W
  2. Intel Quick Assist Technology
  3. Up to 256GB Registered ECC DDR4-2133MHz,
    Up to 64GB Unbuffered ECC/Non-ECC DDR4-2133MHz; in 4 DIMM slots
  4. M.2 Interfaces:
    1 B-Key 3042/2280 supports PCIe 3.0 x2/SATA/USB
  5. Expansion slots:
    1 PCIe 3.0 x2 (Slot 6 or 7 option)
  6. 8x 1GbE RJ45 LAN ports
  7. 3 SATA3 (6 Gbps) ports
  8. Supports 12V DC power input
  9. System on Chip
  10. I/O: 1 VGA, 1 COM (1 via header), TPM header
  11. 3 USB 3.0 (2 rear, Type-A)
    2 USB 2.0 (2 via headers)
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-A2SDV-4C-LN8F
Physical Stats
Form Factor
  • Flex ATX
Dimension
  • 9" x 7.25" (22.86cm x 18.42cm)
Processor
CPU
  • Intel® Atom® Processor C3558
  • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 16W TDP
Core
  • Up to 4 cores, 4 threads / 8MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 256GB ECC RDIMM, DDR4-2133MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MT/s
Memory Type
  • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered (Operating speed up to 2133MHz)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 3 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2400 BMC
Graphics
  • 1 ASPEED AST2400 BMC port(s)
Network Controllers
  • Quad LAN with Intel® Ethernet Controller I350-AM4
  • Quad LAN with Intel® C3000 SoC
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 8 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 1 USB 3.2 Gen1 port(s) (1 type A)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x2 (in x4 slot)
  • Option for Slot 6 or Slot 7
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0
  • Form Factor: 2280, 3042
  • Key: B-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1
Management
Software
  • SuperDoctor® 5, NMI, IPMI2.0, Watchdog
System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
PC Health Monitoring
Voltage
  • VBAT, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
Temperature
  • CPU thermal trip support
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Dual Cooling Zone
  • 5 fans with tachometer status monitoring
Other Features
  • UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, Intel® QuickAssist Technology, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
