Add-on Card AOC-S3816L-L16iT / AOC-S3808L-L8iT
Products Accessories [ AOC-S3816L-L16iT / AOC-S3808L-L8iT ]
Add-on Card

Supermicro 12Gb/s Multi-Port SAS PCIe Gen 4.0 Internal Host Bus Adapter

The Supermicro HBA AOC-S3816L-L16iT features 16 internal SAS connectors, while the AOC-S3808L-L8iT features 8 internal SAS connectors. Both are designed for high-performance storage connectivity.

They use Broadcom’s 3816 & 3808 I/O processors for optimum performance with PCI Express Gen 4.0 host interface for increased bandwidth.

Each Add-On-Card supports up to 122 devices as HBA in IT mode via expander backplane.

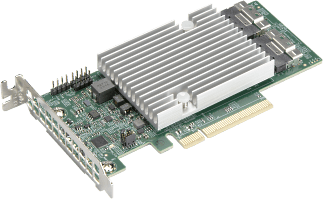

AOC-S3816L-L16iT
AOC-S3816L-L16iT

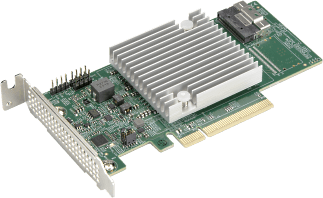

AOC-S3808L-L8iT
AOC-S3808L-L8iT

This product is only available through Supermicro.

Compatible with Supermicro motherboards only.
Compliance
RoHS
  • RoHS Compliant 6/6, Pb Free

Key Features

  • Broadcom 3816/3808 SAS controller, 16/8 internal ports, 12Gb/s per port
  • 2x (for 3816) and 1x (for 3808) SlimSAS x8 black (100-Ohm) connector interface
  • Supports up to 122 physical devices with expander
  • Processor at 1.2 GHz
  • Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA
  • Supports MCTP over PCIe
  • UEFI Configuration utility
  • Supports HW Secure Boot
  • OS Support: Windows/Linux
  • Thermal operating range: System dependent (55°C or higher w/ enough airflow)
Dimensions
W x D
5.4" x 2.71"

Qualified Platforms
Servers
[Qualified Platform List]
Qualified Drives
Tested HDD/SSD
[ Tested HDD List ]
Downloads
User's Guide [ Download ]
Driver [ Download ]
Firmware [ Download ]
Parts List - (Items Included)
Part Number Qty Description
Add-on Card AOC-S3816L-L16iT 1 Supermicro 12Gb/s 16-Port SAS Internal HBA Adapter
Add-on Card AOC-S3808L-L8iT 1 Supermicro 12Gb/s 8-Port SAS Internal HBA Adapter
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-1264F-100 - Slimline x8 (STR) to 2x Slimline x4 (STR), FFC, 64/64CM, 100-Ohm
Cable CBL-SAST-1265F-100 - Slimline x8 (STR) to Slimline x4 (STR), 64CM, 100-Ohm
Cable CBL-SAST-1271F-100 - Slimline x8 (RE) to 2x Slimline x4 (STR), FFC, 92/71CM, 100-Ohm
Cable CBL-SAST-1276F-100 - Slimline x8 (LE) to 2x Slimline x4 (STR), FFC, 76/76CM, 100-Ohm
Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Certain products may not be available in your region
