Add-on Card AOC-SMG3-2H8M2-BW
Products Accessories [ AOC-SMG3-2H8M2-BW ]
Add-on Card

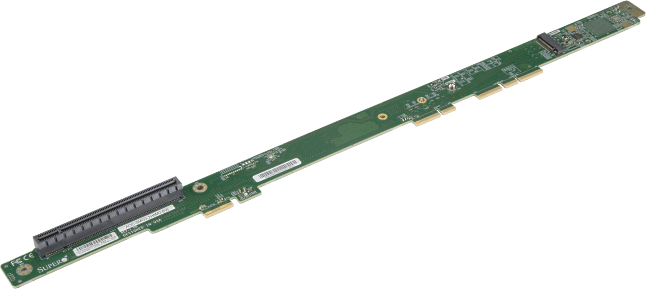

Supermicro M.2 SATA/NVMe Hybrid Carrier Card for X12 BigTwin®

Perfectly streamlined for the BigTwin, the SATA/NMVe M.2 Carrier Card AOC-SMG3-2H8M2-BW features 2 M-key connectors for x2 NVMe or SATA M.2 SSDs. It auto-detects SATA or NVMe protocols. Both NVMe M.2 SSDs are linked to 4 lanes of PCI-E 3.0 bandwidth. It delivers a cost effective and reliable storage solution with SATA and NVMe drives.

This product is only available through Supermicro.
Compliance
RoHS
  • RoHS Compliant 6/6, Pb Free

Key Features

  • Hybrid (NVMe or SATA) M.2 carrier riser card for X12 BigTwin®
  • Supports 2x Supports x2 M.2 M key connectors for the following length:
    • Top side: 80mm
    • Bottom side: 80mm or 110mm with OEM SKU support (Please contact your Supermicro Sales representative for more information)
  • Auto-detects SATA or NVMe M.2
  • Each NVMe M.2 SSD links to a full x4 PCI-E Gen3 and SATA M.2 SSD links to PCH
  • Supports activity LED onboard for each M.2 SSD
  • Gen4 x16 PCI-E slot riser card function
  • Thermal operating range: System dependent (55°C or higher w/ enough airflow)
Dimensions
L x W
18.05" x 1.24"

Qualified Platforms
Servers
SYS-220BT-DNC8R
SYS-220BT-DNTR
SYS-220BT-HNC8R
SYS-220BT-HNC9R
SYS-220BT-HNTR
SYS-620BT-DNC8R
SYS-620BT-DNTR
SYS-620BT-HNC8R
SYS-620BT-HNTR


Downloads
User's Guide [ Download ]
Parts List
Part Number Qty Description
Add-on Card AOC-SMG3-2H8M2-BW 1 2x Hybrid M.2 riser carrier card for X12 BigTwin ,RoHS
