SuperServer ARS-110M-NR (Complete System Only)

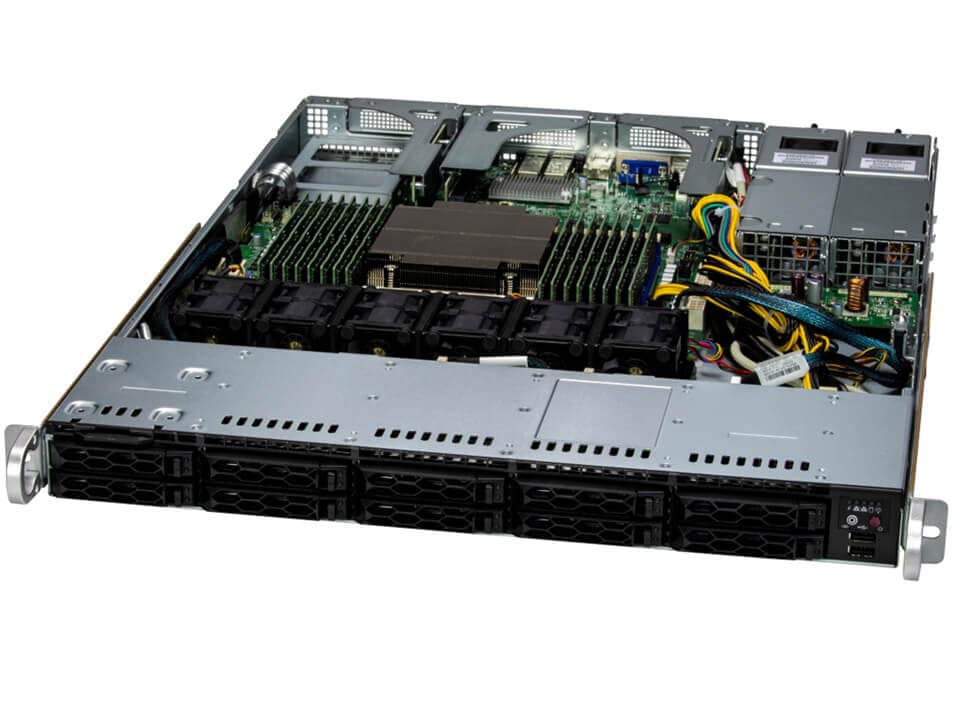

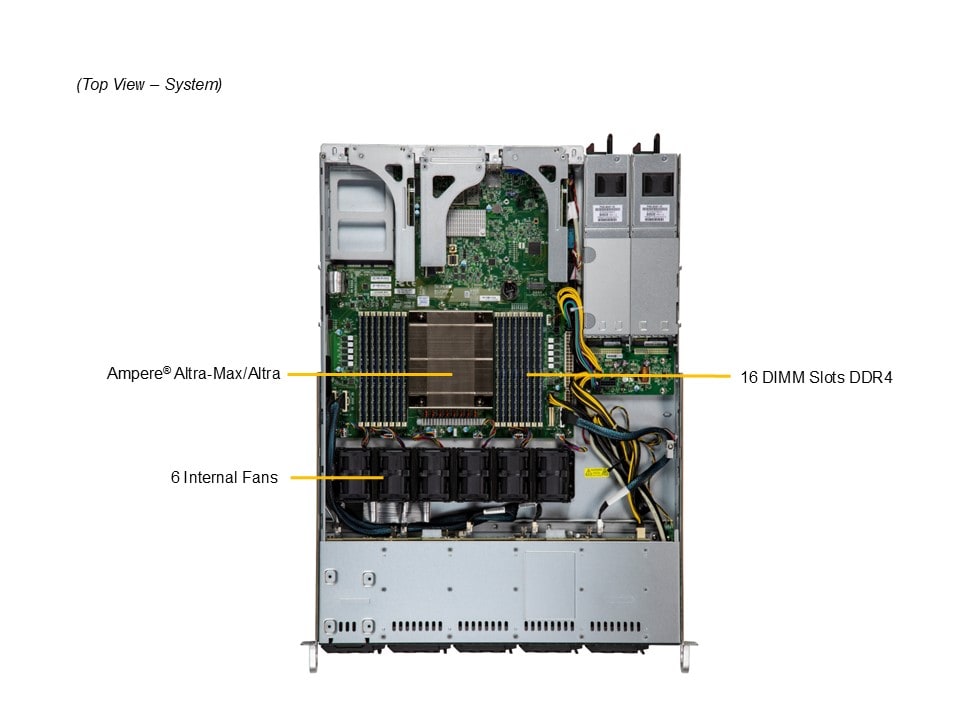

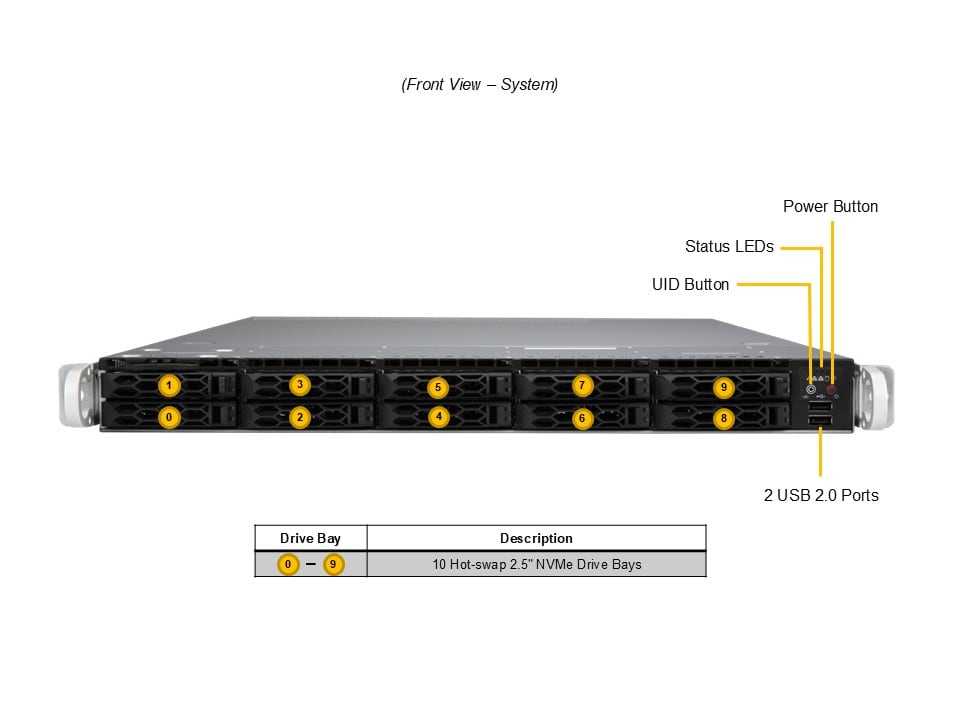

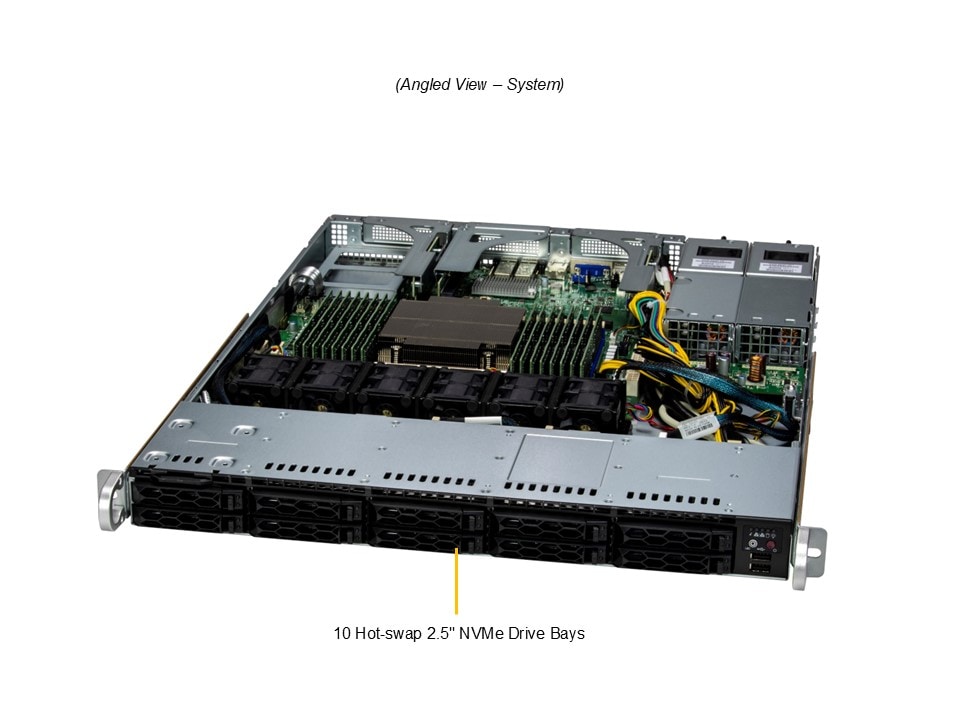

ARS-110M-NR Main ARS-110M-NR Angle ARS-110M-NR Top ARS-110M-NR Front ARS-110M-NR Rear
Integrated Board: R12SPD-A
Learn more

Key Applications

  • Enterprise Server
  • Hyperscale Data Center
  • Front End Server
  • Infrastructure

Key Features

  1. Single Socket Ampere® Altra® Processor (Up to 80 Cores; Up to 3.3Ghz) / Single Socket Ampere® Altra® Max Processor (Up to 128 Cores; Up to 3.0Ghz) ; Up to 250W TDP
  2. 16 DIMMs; Up to 4TB ECC Registered DDR4-3200MHz RDIMM/LRDIMM
  3. 3 PCIe 4.0 x16 (LP) Slots, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
  4. 2x 25Gb LAN SFP28 Ports via Mellanox ConnectX®-4 Lx EN Controller
  5. 10x 2.5" U.2 NVMe Hot-Swap Drive Bays
  6. 800W Redundant Platinum Level High-efficiency Power Supplies
  7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
...
...
ARS-110M-NR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
ARS-110M-NR Standard version with PWS-804P-1R (Platinum Level)
ARS-110M-NR-EU European version with PWS-862A-1R (Titanium Level)
Motherboard
Super R12SPD-A
Processor
CPU
  • Single FCLGA-4926
  • Ampere® Altra® / Altra® Max processor
Note
  • Supports 65W - 250W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 2 SFP28 25 GbE LAN ports
  • 1 RJ45 1 GBASE-T Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 2.0 ports(front)
Video
  • 1 VGA port
Serial
  • 1 port
Management
Software
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R804AMP2
Dimensions and Weight
Height
  • 1.7" (43.18 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 23.5" (596.9 mm)
Package
  • 7.5" (H) x 23.5" (W) x 31.5" (D)
Weight
  • Gross Weight: 46 lbs (20.9 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 3 PCIe 4.0 x16 LP slots
    • 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 6 Heavy Duty 4cm Fan(s)
Power Supply
2x 800W
2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)54.5 x 40.25 x 220 mm
AC Input100-127Vac
750W: 100-127Vac / 50-60Hz
200-240Vac
800W: 200-240Vac / 50-60Hz
230-240Vdc
800W: 230-240Vdc / 50-60Hz
+12VMax: 62.5A / Min: 0.5A (100Vac-127Vac)
Max: 62.5A / Min: 0A (100Vac-127Vac)
Max: 66.6A / Min: 0.5A (200Vac-240Vac)
Max: 66.6A / Min: 0A (200Vac-240Vac)
Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
Max: 66.6A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
3816 HBA Card AOC-S3816L-L16iT 1 Supermicro 12Gb/s 16-Port SAS Internal HBA Adapter
CBL-SAST-1261-100 • 2 Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100
AIOM Network Card AOC-ATG-b2TM 1 OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
Network Card AOC-S25G6-M2S 1 Standard PCIe 4.0 x8 dual port 25GbE with SFP28 ; NVIDIA ConnectX-6 Lx 25GbE controller
