SuperServer ARS-111GL-NHR (Complete System Only)

NVIDIA GH200 Grace Hopper Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

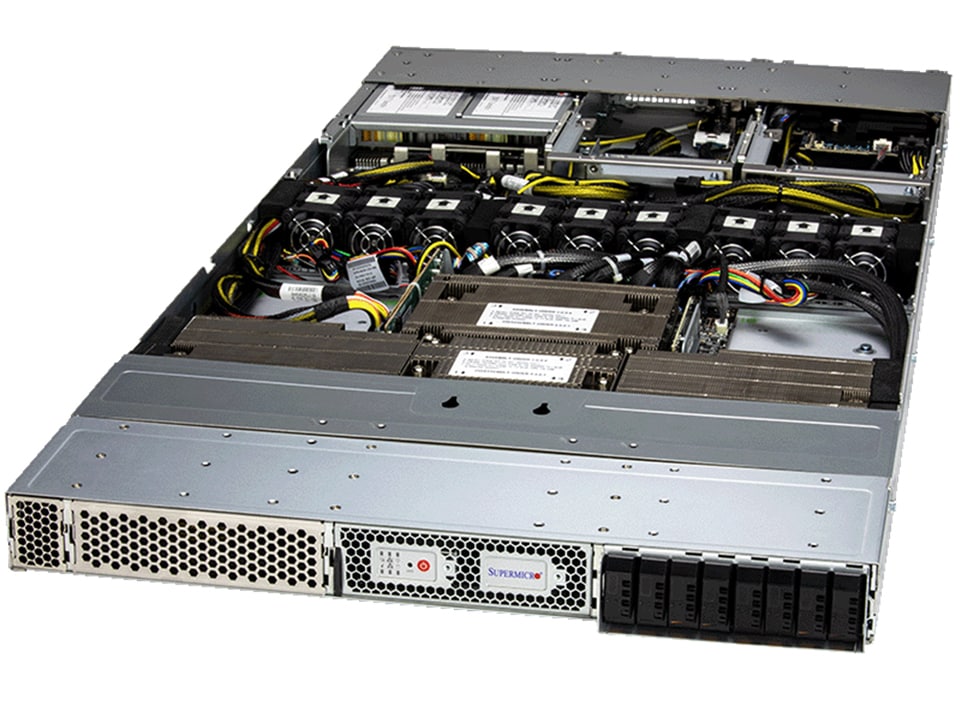

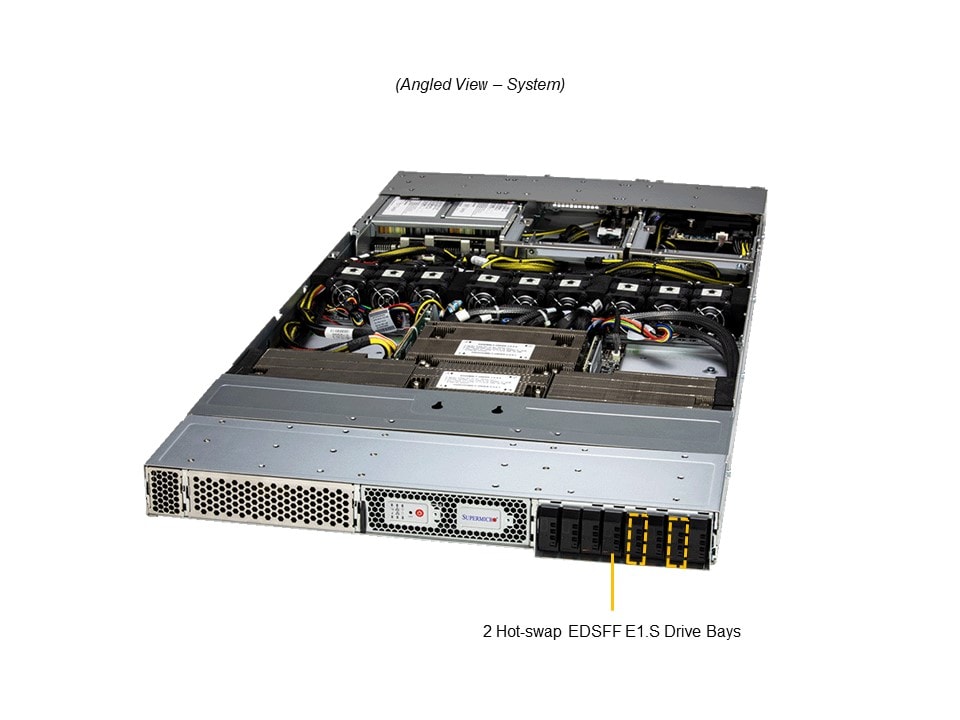

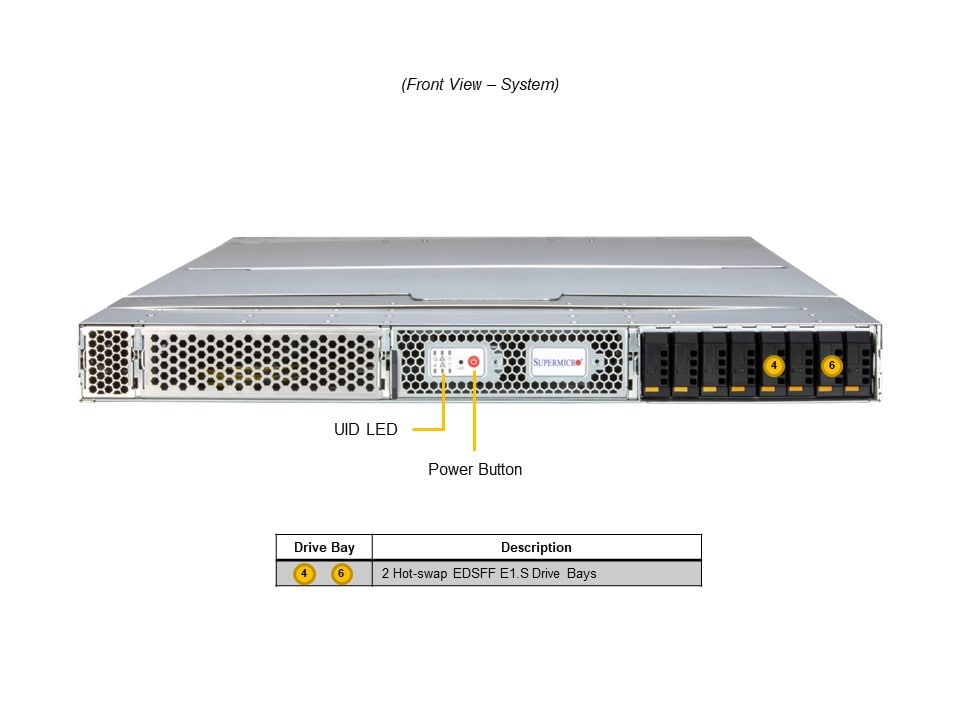

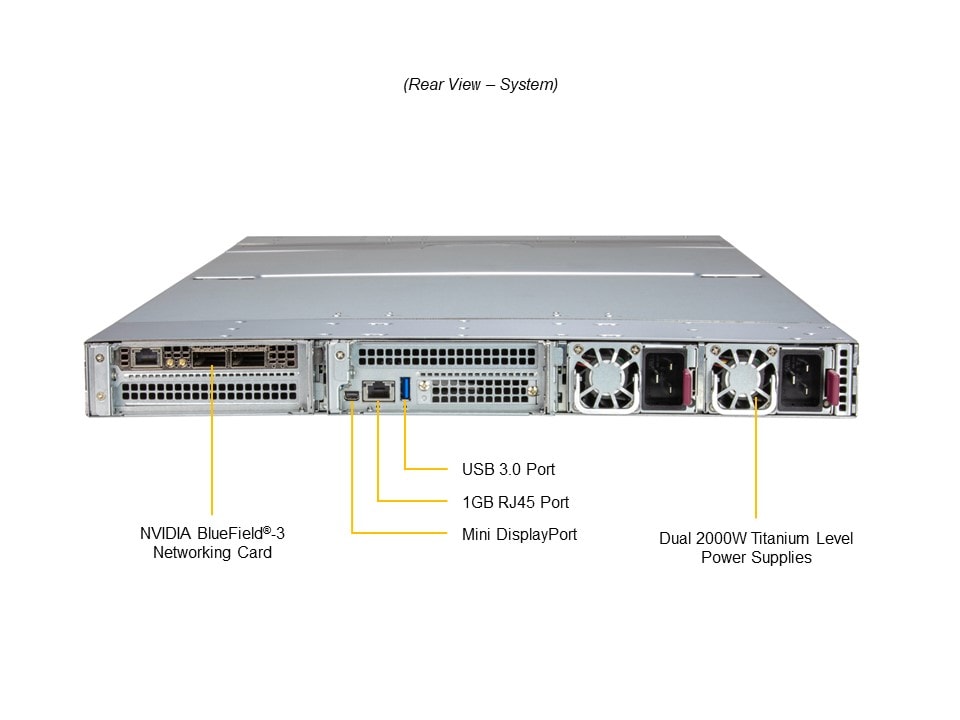

ARS-111GL-NHR Main ARS-111GL-NHR Angle ARS-111GL-NHR Top ARS-111GL-NHR Front ARS-111GL-NHR Rear
Integrated Board: G1SMH-G
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training and Inference
  • Large Language Model (LLM) and Generative AI

Key Features

This system currently supports two E1.S drives direct to the processor and the onboard GPU only. Please consult your Supermicro Salesperson for details.

  1. High density 1U GPU system with Integrated NVIDIA® H100 GPU
  2. NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
  3. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
  4. Up to 576GB of coherent memory per node including 480GB LPDDR5X and 96GB of HBM3 for LLM applications
  5. 2x PCIe 5.0 x16 slots supporting NVIDIA BlueField®-3 or ConnectX®-7
  6. 9 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  7. This system supports two E1.S drives directly from the processor only.
...
...
ARS-111GL-NHR
Specifications Resources & Downloads
Specifications
Product SKUs
ARS-111GL-NHR
Motherboard
Super G1SMH-G
Processor
CPU
  • NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
Note
  • Supports up to 1000W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 onboard GPU
Supported GPU
  • NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled)
  • View GPU Options
CPU-GPU Interconnect
  • NVLink®-C2C
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 480GB ECC LPDDR5X
  • Additional GPU Memory: Up to 96GB ECC HBM3
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 3.0 port(Rear)
Video
  • 1 mini-DP port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MG102TS-R000NDFP
Dimensions and Weight
Height
  • 1.75" (44 mm)
Width
  • 17.33" (440 mm)
Depth
  • 37" (940 mm)
Package
  • 9.5" (H) x 48" (W) x 28" (D)
Weight
  • Gross Weight: 65.5 lbs (29.7 kg)
  • Net Weight: 48.5 lbs (22 kg)
Available Color
  • Silver
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
System Cooling
Fans
  • 9 Removable heavy-duty 4cm Fan(s)
Power Supply
2x 2000W
2x 2000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
AC Input1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
