SuperServer ARS-221GL-NR (Complete System Only)

DP NVIDIA Grace Superchip system with up to 2 L40S or 2 single non-bridged NVIDIA H100 NVL

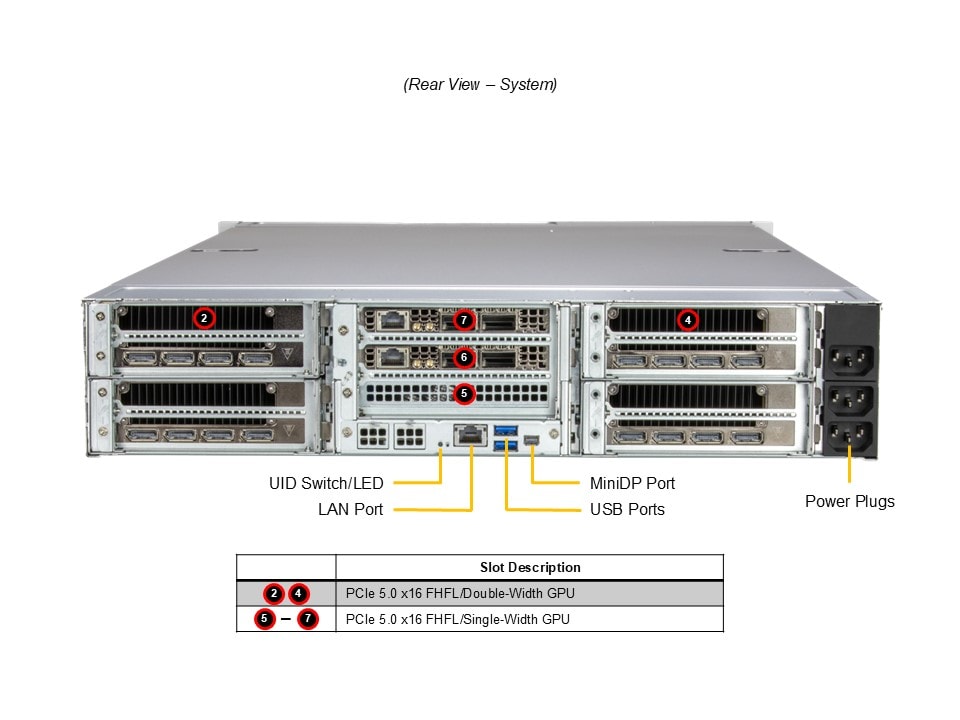

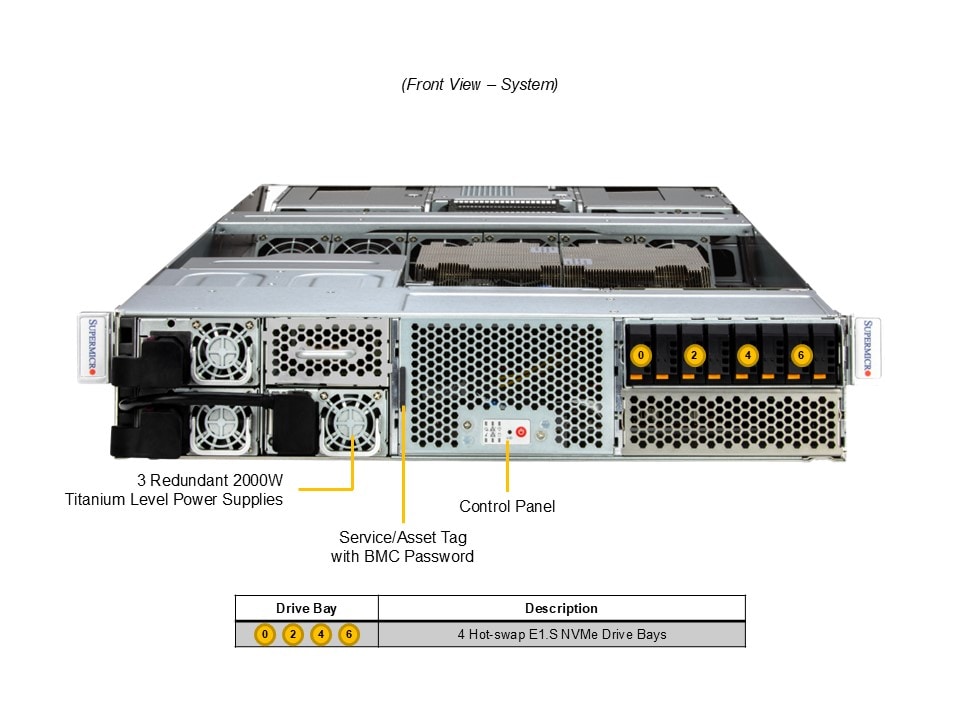

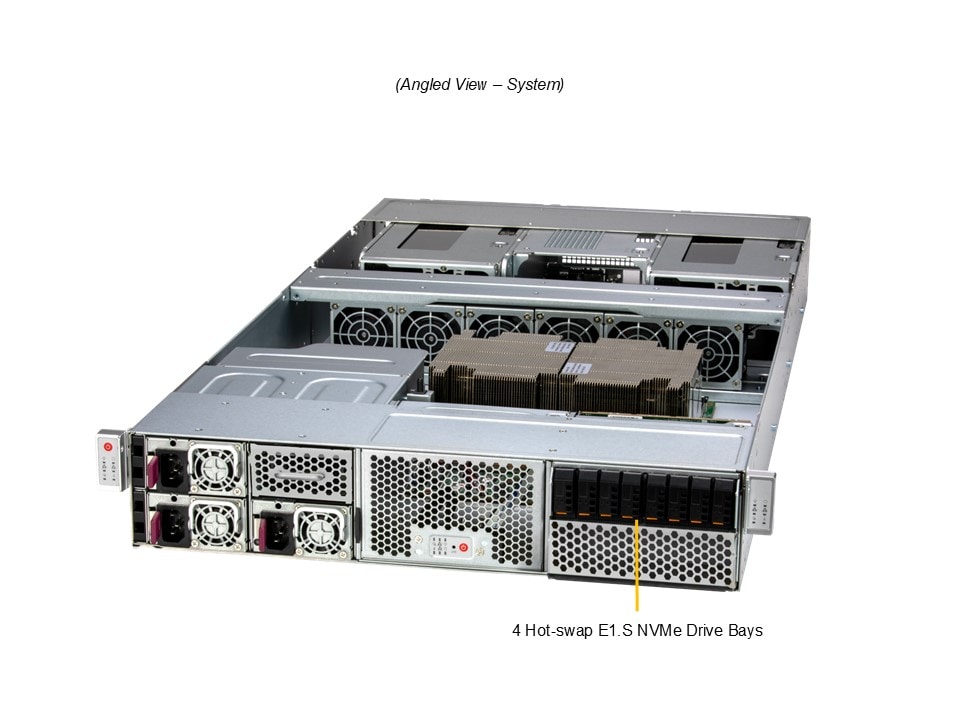

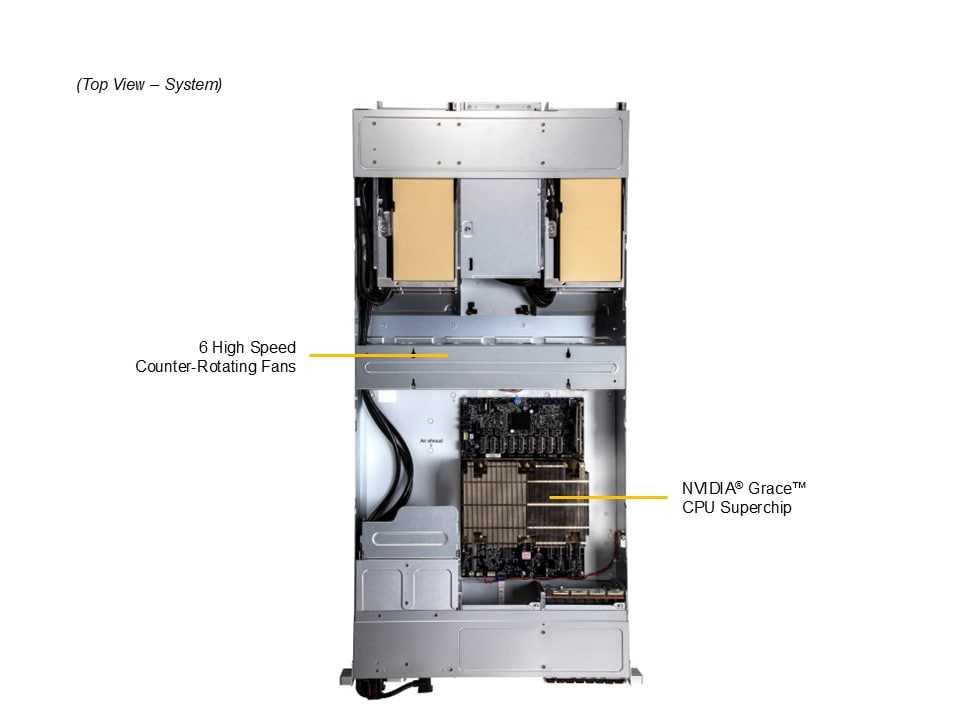

ARS-221GL-NR Main ARS-221GL-NR Angle ARS-221GL-NR Top ARS-221GL-NR Front ARS-221GL-NR Rear
Integrated Board: G1SMH
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Large Language Model (LLM) Natural Language Processing
  • General purpose CPU workloads, including analytics, data science, simulation, HPC, application servers, and more

Key Features

  1. High density 2U GPU system with up to 2 NVIDIA® PCIe GPUs
    PCIe-based NVIDIA H100 NVL and NVIDIA L40s
  2. Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores
  3. Up to 960GB ECC LPDDR5X onboard memory option for minimum latency and maximum power efficiency
  4. 5 PCIe 5.0 x16 FHFL Slots
  5. 4 E1.S NVMe Storage Support
...
...
ARS-221GL-NR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
ARS-221GL-NR
Motherboard
Super G1SMH
Processor
CPU
  • Dual processor(s)
  • NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 960GB ECC LPDDR5X
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • NVIDIA C2
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 mini-DP port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GP201TS-R000NP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.25" (438.4 mm)
Depth
  • 35.43" (900 mm)
Package
  • 11" (H) x 22.5" (W) x 45.5" (D)
Weight
  • Gross Weight: 86.5 lbs (39.2 kg)
  • Net Weight: 67.5 lbs (30.6 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 3 PCIe 5.0 x16 FHFL slots
    • 2 PCIe 5.0 x16 FHFL double-width slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap E1.S NVMe drive bays
M.2
System Cooling
Fans
  • 6 heavy duty fans with optimal fan speed control
Power Supply
3x 2000W
3x 2000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
4x E1.s NVMe optional sets CBL-MCIO-1255M5 • 2 MCIO x8 (STR to STR),55CM,30AWG,RoHS
CBL-MCIO-1213M5 2 MCIO x8 (STR to STR),13CM,85OHM,RoHS
Trusted Platform Module Options AOM-TPM-9672V-O • 1 TPM 2.0 with 10 pins SPI,RoHS
