SuperServer AS -1115S-FWTRT

1U Short-depth front I/O system with AMD EPYC™ 8004 Series processor, 2x 10G ports, 2x 2.5" drive bays and AC redundant PSU

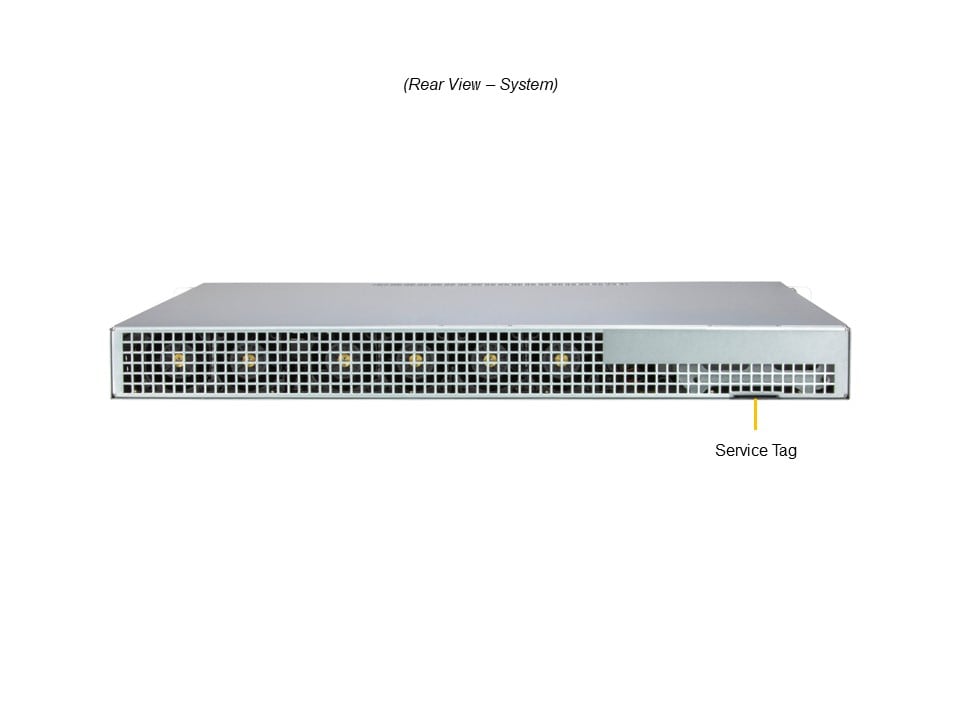

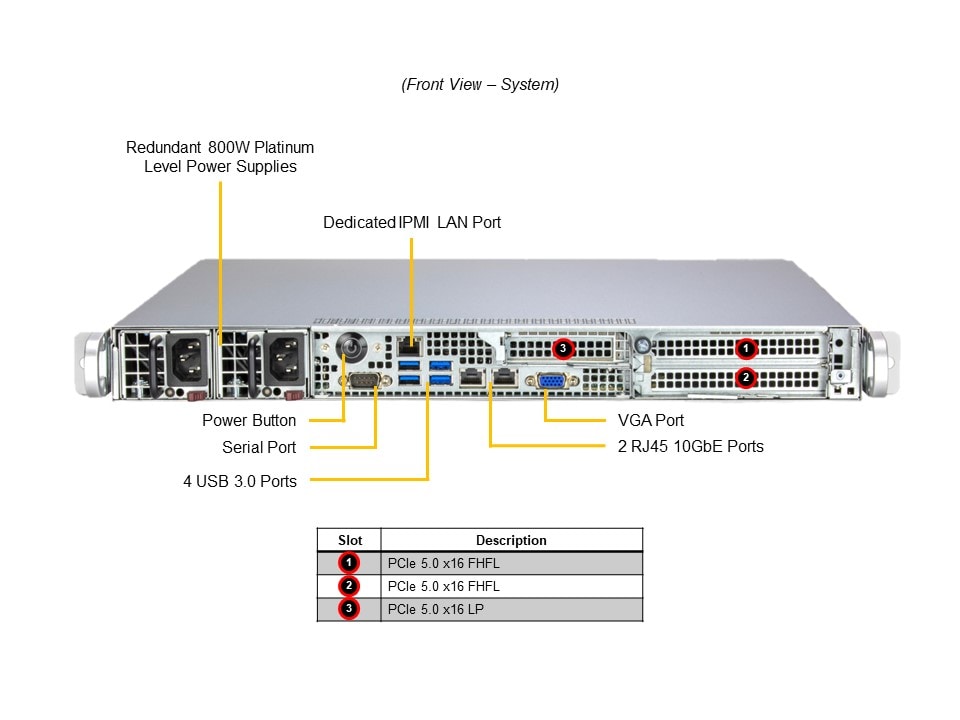

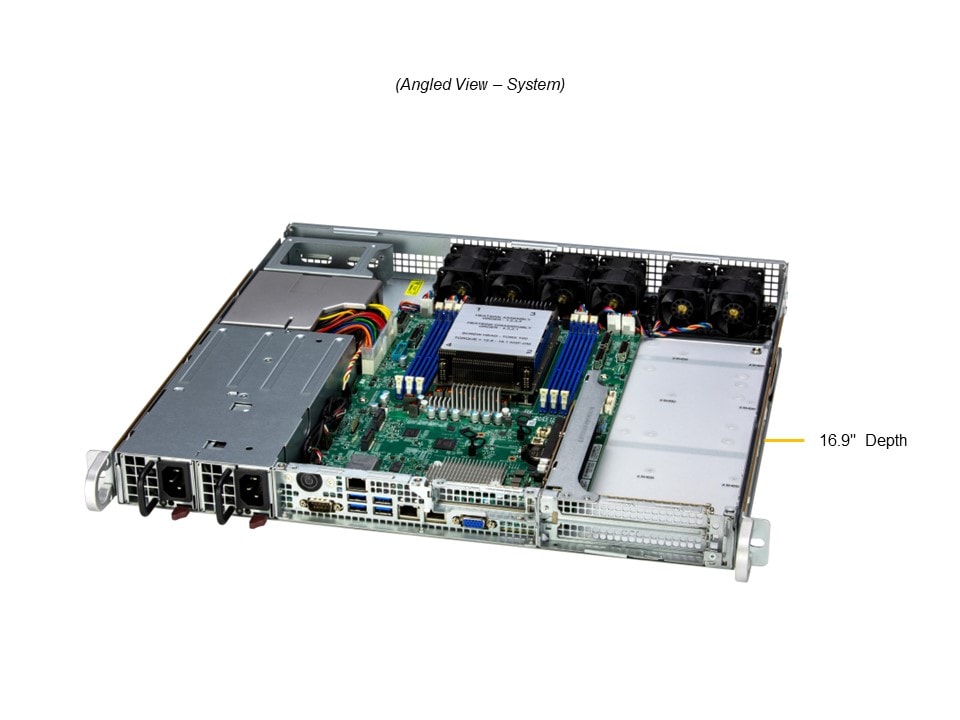

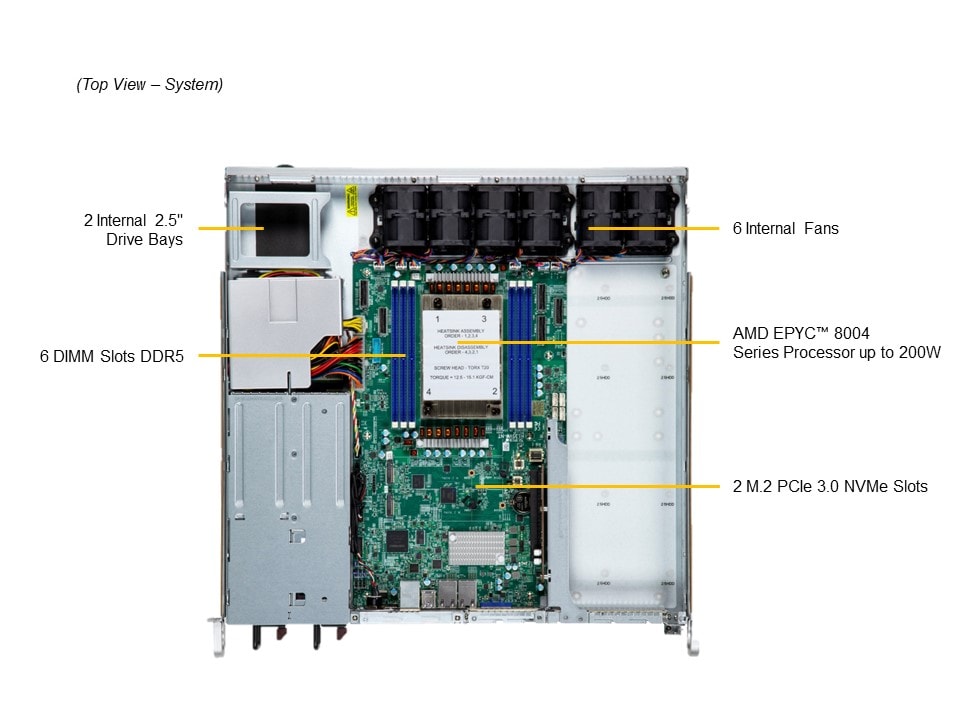

AS -1115S-FWTRT Main AS -1115S-FWTRT Angle AS -1115S-FWTRT Top AS -1115S-FWTRT Front AS -1115S-FWTRT Rear
Integrated Board: H13SVW-NT
Learn more

Key Applications

  • Virtualization
  • Firewall Applications
  • Edge/Cloud Computing Services
  • CDN/vCDN/Cloud CDN
  • 5G/Telco/NEBS environment
  • vRAN/o-RAN

Key Features

  1. 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
  2. 1x dedicated IPMI LAN, 2x 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
  3. 800W Redundant Platinum AC Power Supplies
  4. AMD EPYC™ 8004 Series Processor
...
...
AS-1115S-FWTRT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -1115S-FWTRT
Motherboard
Super H13SVW-NT
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 8004 Series Processor
Core Count
  • Up to 64C/128T
Note
  • Supports up to 200W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 6 DIMM slots
  • Max Memory (2DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
SATA
  • SATA (6Gbps)
NVMe
  • NVMe; (Optional)
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports
USB
  • 4 ports
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8
    Plug and Play (PnP)
    USB Keyboard support
Management
Software
Power configurations
  • 1U 800W Redundant 100-240Vac Platinum AC power supply
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
CPU
  • Monitors for CPU thermal trip, Chipset Voltages, Memory
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515B-R000WNP
Dimensions and Weight
Height
  • 1.7" (44.5 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 16.9" (429.3 mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 15 lbs (6.8 kg)
  • Net Weight: 10 lbs (4.54 kg)
Available Color
  • Silver
Front Panel
LED
  • LAN1 activity
  • LAN2 activity
  • Power status
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 internal fixed 2.5" NVMe/SAS/SATA drive bays
M.2
System Cooling
Fans
  • 6 Heavy duty counter-rotating 4cm Fan(s)
Power Supply
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SVW-NT

CSE-515B-R000WNP
1

1
Super H13SVW-NT Motherboard

1U Chassis
Cable CBL-0082L 1 Y SPLIT SATA POWER ADAPTER, PB FREE
Fan FAN-0167L4 2 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
Riser Card RSC-W-66G5 1 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
RSC-WR-6G5H 1 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0062P-1 1 1U Passive CPU Heat Sink for AMD Socket SP6 Processors
*Power Supply PWS-804S-1R 2 800W 100-240Vac input, Platinum, base module PWS-804P-1R
*Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
