SuperServer AS -1124US-TNRP (Complete System Only)

1U Ultra with 12 NVMe/SATA bays (optional SAS)

AS -1124US-TNRP Main AS -1124US-TNRP Angle AS -1124US-TNRP Top AS -1124US-TNRP Front AS -1124US-TNRP Rear
Integrated Board: H12DSU-iN
Learn more

Key Applications

  • Virtualization
  • Cloud Computing
  • High End Enterprise Server

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  3. 2 PCIe 4.0 x16 FH, 9.5"L,
    1 PCIe 4.0 x16 LP,
    1 PCIe 4.0 x16 (internal proprietary LP slot)
  4. Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
  5. 12 Hot-swap 2.5" NVMe drive bays
    or SATA3/SAS3 (via optional SAS kit)
...
...
AS-1124US-TNRP
Specifications Resources & Downloads
Specifications
Product SKUs
A+ Server AS -1124US-TNRP
Motherboard
Super H12DSU-iN
Processor
CPU
Core Count
  • Up to 64C/128T
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 32 DIMM slots/8 Channels
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 4 USB 3.0 ports
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
  • CSE-119UHTS-R1K22HP-T
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29.1" (739 mm)
Package
  • 7.99" (H) x 23.81" (W) x 37.4" (D)
Weight
  • Gross Weight: 48 lbs (21.8 kg)
Available Color
  • N/A

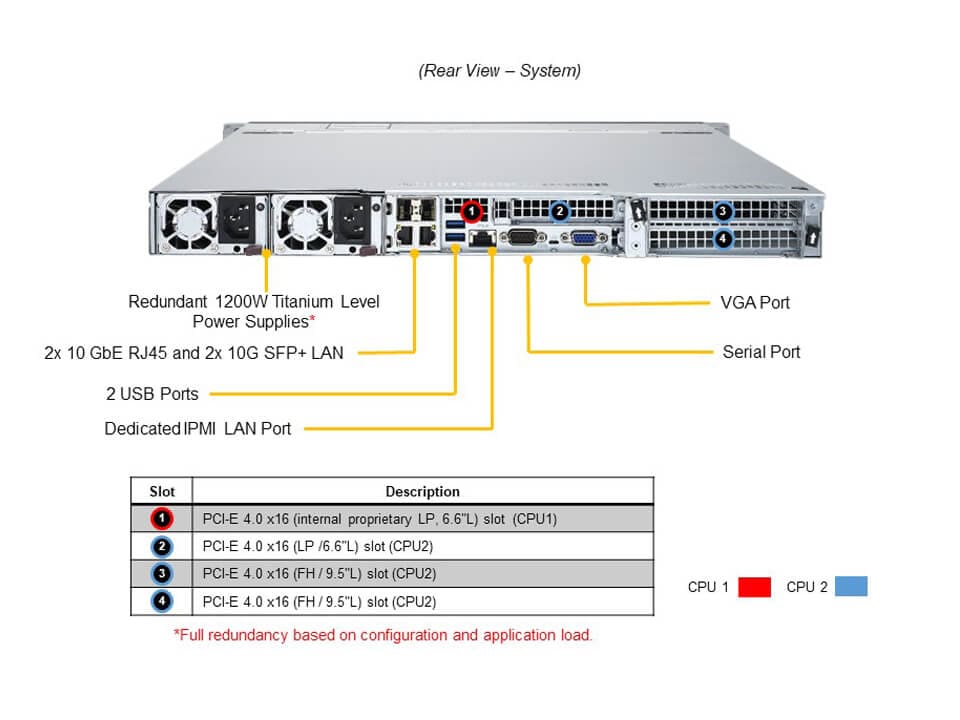

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x16 LP slot
    • 1 PCIe 4.0 x16 INTERNAL slot
    • 2 PCIe 4.0 x16 FH/HL, 9.5"L slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 12 front hot-swap 2.5" NVMe/SAS*/SATA* drive bays
  • (*SAS/SATA support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
