SuperServer AS -1125HS-TNR (Complete System Only)

1U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 slots

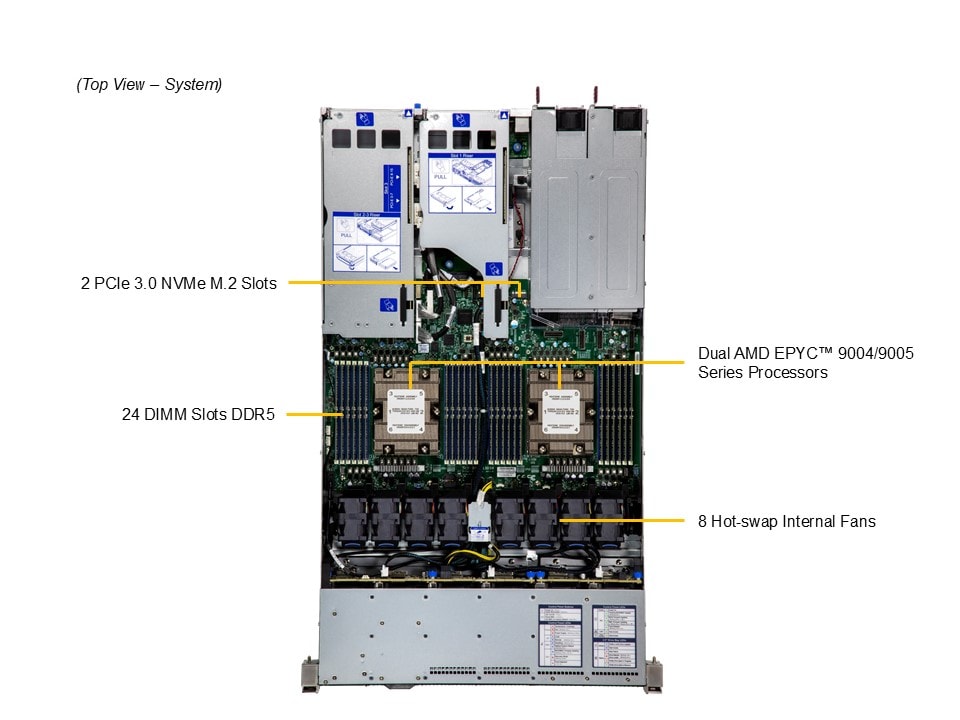

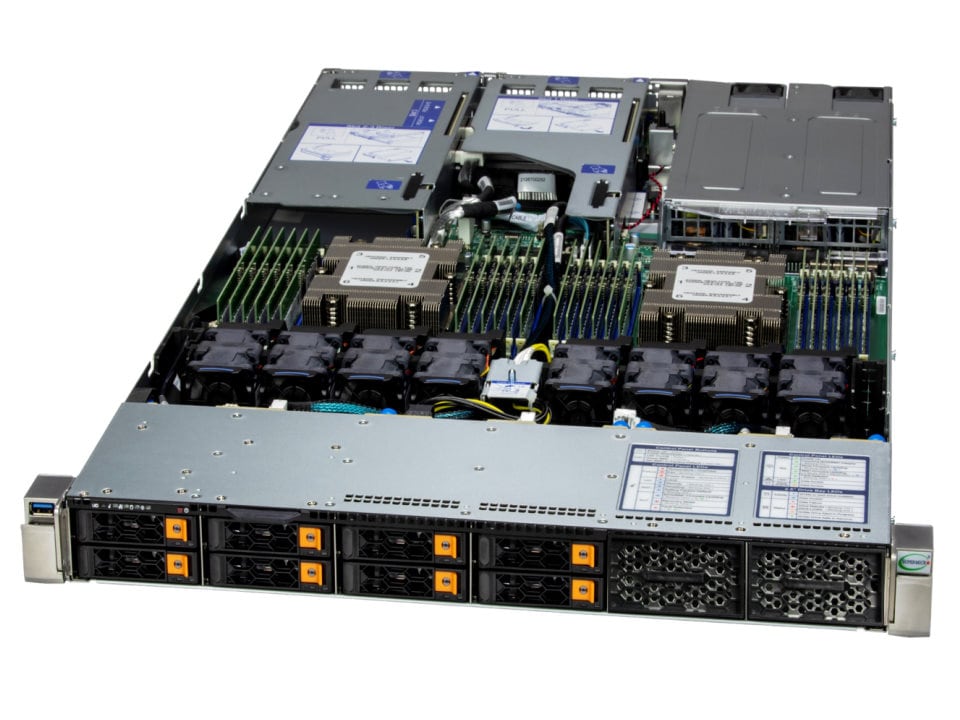

AS -1125HS-TNR Main AS -1125HS-TNR Angle AS -1125HS-TNR Top AS -1125HS-TNR Front AS -1125HS-TNR Rear
Integrated Board: H13DSH
Learn more

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server

Key Features

  1. Dual 4th Generation AMD EPYC™ 9004 Series Processors
  2. 24 DIMM Up to 6TB ECC DDR5 RDIMM
  3. 2 PCIe 5.0 x16 FH, 10.5"L
    1 PCIe 5.0 x16, FH, 6.6"L
    Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  4. 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
...
...
AS-1125HS-TNR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -1125HS-TNR
Motherboard
Super H13DSH
Processor
CPU
Core Count
  • Up to 256C/512T
Note
  • Supports up to 360W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 280W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 1U
Model
  • CSE-HS119-R1K24P2-A
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29.4" (747 mm)
Package
  • 8.1" (H) x 23.8" (W) x 40.6" (D)
Weight
  • Gross Weight: 51 lbs (23.1 kg)
  • Net Weight: 32 lbs (14.5 kg)
Available Color
  • Black front & silver body

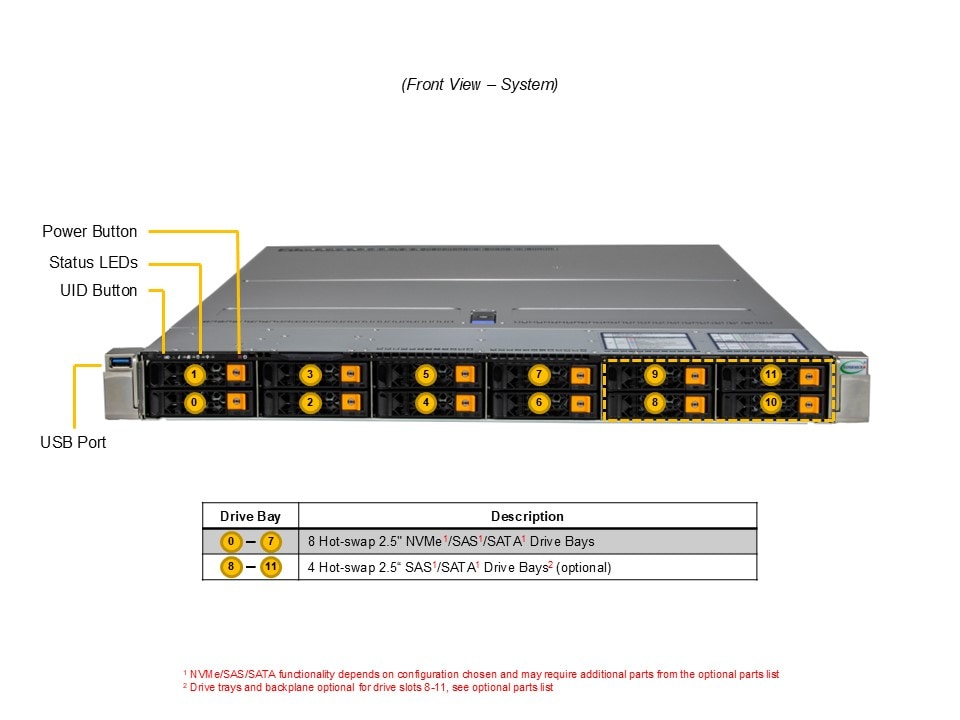

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

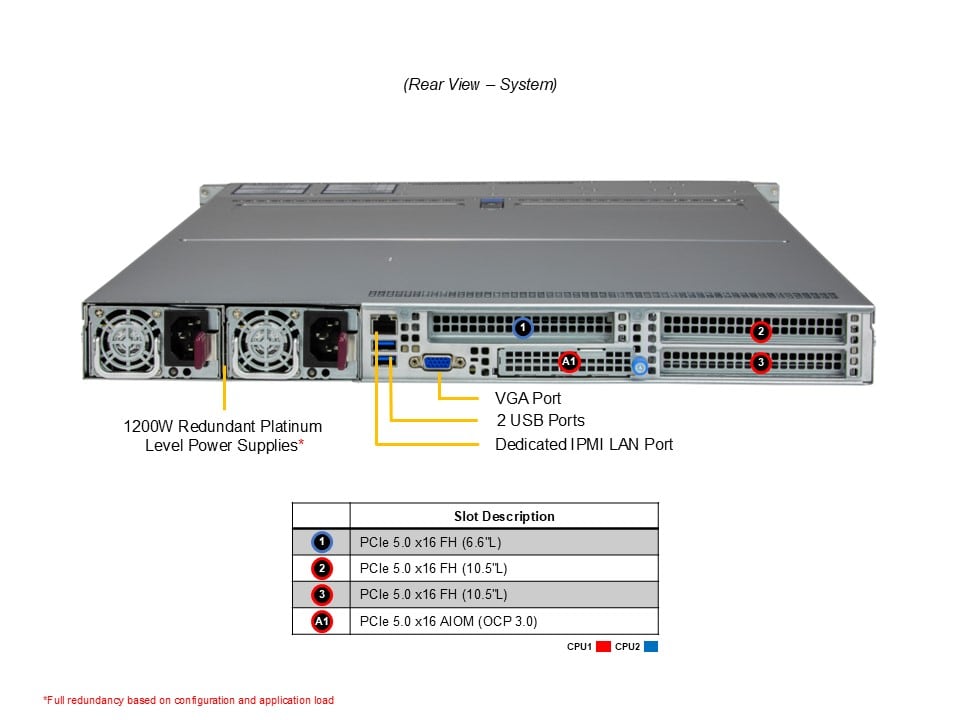

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHHL slot
    • 2 PCIe 5.0 x16 FH/10.5"L slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • Option A: Total 12 bays
    • 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Power Supply
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
***Data Cable Options*** - - -
Component - - -
8 NVMe CBL-KIT-1125HS-TNR-8N 1 8 NVME cable kit
8 NVME + 4 SAS BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS3/SATA3/NVME5
AOC-S3808L-L8iT ORAOC-S3908L-H8iR CBL-SAST-1262LP-100 111 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD Slimline x8 (STR) to SlimLineLP x4 STR,98CM
CBL-KIT-1125HS-TNR-8N 1 8 NVME cable kit
MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
CBL-PWEX-1136-40 1 MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
CBL-CDAT-1062Y-45 1 Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
8 NVME + 4NVME MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
CBL-CDAT-1062Y-45 1 Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
CBL-PWEX-1136-40 1 MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS3/SATA3/NVME5
CBL-MCIO-1343M5FRF 1 MCIO x8 (FR to STR), FFC,43cm,30AWG
CBL-MCIO-1352M5FRF 1 MCIO x8 (FR to STR), FFC,52cm,30AWG
CBL-KIT-1125HS-TNR-8N 1 8 NVME cable kit
8 NVME+ 4 SATA CBL-KIT-1125HS-TNR-8N 1 8 NVME cable kit
CBL-MCIO-1255L4Y 1 MCIO x8 to 2 SlimSAS LP x4,STR,55cm
CBL-PWEX-1136-40 1 MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS3/SATA3/NVME5
CBL-CDAT-1062Y-45 1 Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
8 SAS AOC-S3808L-L8iT ORAOC-S3908L-H8iR CBL-SAST-1273LP-100 111 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM
8 SAS + 4 SAS AOC-S3816L-L16iT OR AOC-S3916L-H16iRCBL-SAST-1273LP-100 (Support HDD slot 0~7)CBL-SAST-1262LP-100 (Support HDD slot 8~11) 1111 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMSlimline x8 (STR) to Slimline x4 (STR),64CM
CBL-PWEX-1136-40 1 MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS3/SATA3/NVME5
CBL-CDAT-1062Y-45 1 Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
8 SATA CBL-CDAT-1062Y-45 1 Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
CBL-MCIO-1255L4Y 1 MCIO x8 to 2 SlimSAS LP x4,STR,55cm
8 SATA + 4 SATA CBL-PWEX-1136-40 1 MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive)
BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS3/SATA3/NVME5
CBL-CDAT-1062Y-45 1 Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG
CBL-MCIO-1255L4Y 2 MCIO x8 to 2 SlimSAS LP x4,STR,55cm
Chassis Rear Handle Kit MCP-290-11905-0N 1 Hyper 1U rear handle kit for immersion cooling
Drive Bay Dummy Cover MCP-220-11902-0B - Dummy cover for two 2.5" drive bays (top & bottom drive bays)
Rail Set MCP-290-21103-0N 1 21.65" ball-bearing rail set for Hyper servers
MCP-290-11903-0N (included in the system ) 1 30.5" ball-bearing rail set for Hyper servers
MCP-290-11902-0N 1 35.25" ball-bearing rail set for Hyper servers
MCP-290-11901-0N 1 41" ball-bearing rail set for Hyper servers
Serial Port DTK Cable with PCIe Bracket CBL-0010L 1 9-Pin 26CM Serial Port DTK Cable with PCIe Bracket
TPM security module AOM-TPM-9672V 1 SPI capable vertical TPM 2.0
AOM-TPM-9670H-FIPS 1 AOM-TPM-9670H-FIPS supporting FIPS 140-2
AOM-TPM-9672V-FIPS 1 AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS
AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
