SuperServer AS -4124GO-NART (Complete System Only)

DP AMD System with NVIDIA HGX A100 8-GPU

AS -4124GO-NART Main AS -4124GO-NART Angle AS -4124GO-NART Top AS -4124GO-NART Node AS -4124GO-NART Front AS -4124GO-NART Rear
Integrated Board: H12DGO-6
Learn more

Key Applications

  • HPC
  • AI / Deep Learning

Key Features

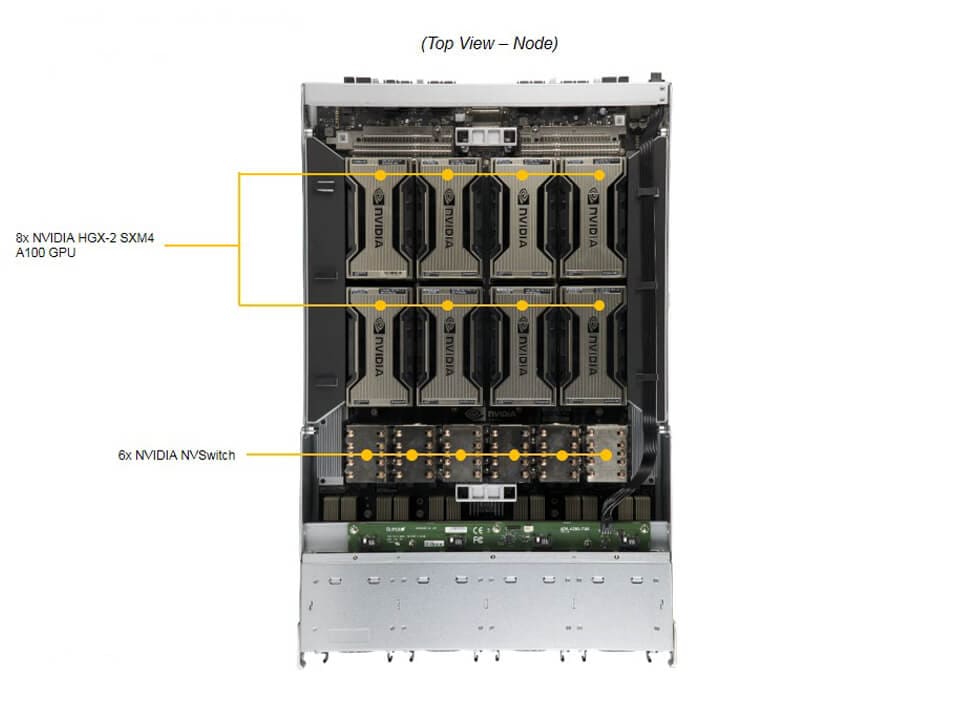

  1. Supports NVIDIA® HGX™ A100 8-GPU
    Highest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™
    NICs for GPUDirect RDMA (1:1 GPU Ratio)
    Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)

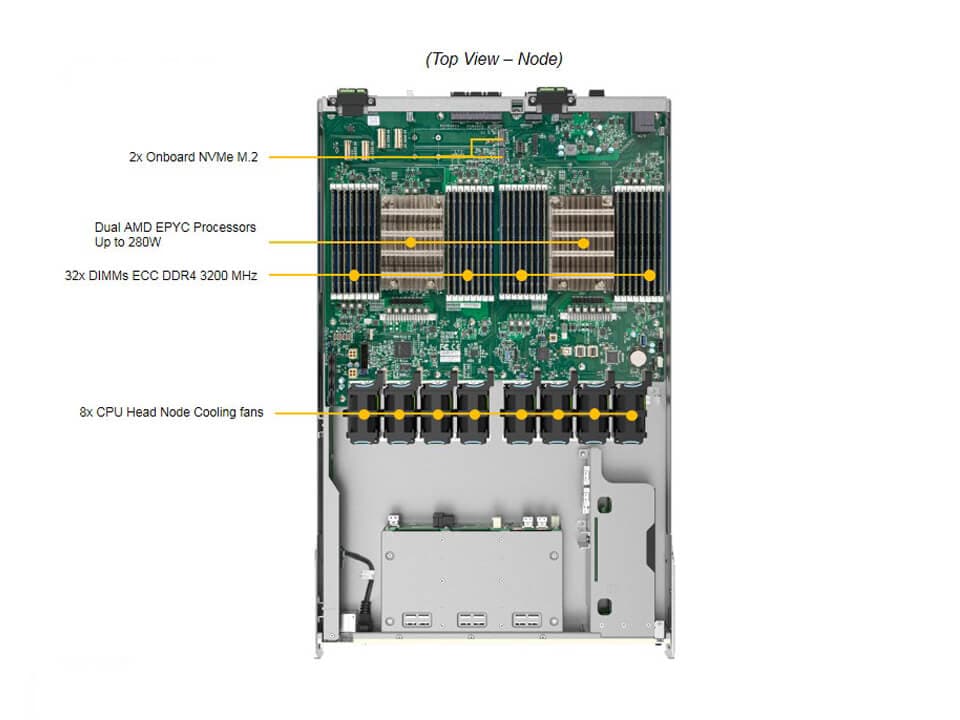

  2. Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  3. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  4. 8 PCIe 4.0 x16 via PCIe switch;

    1 PCIe 4.0 x 16 LP and 1 PCIe 4.0 x8 LP via CPUs;
    AIOM Support

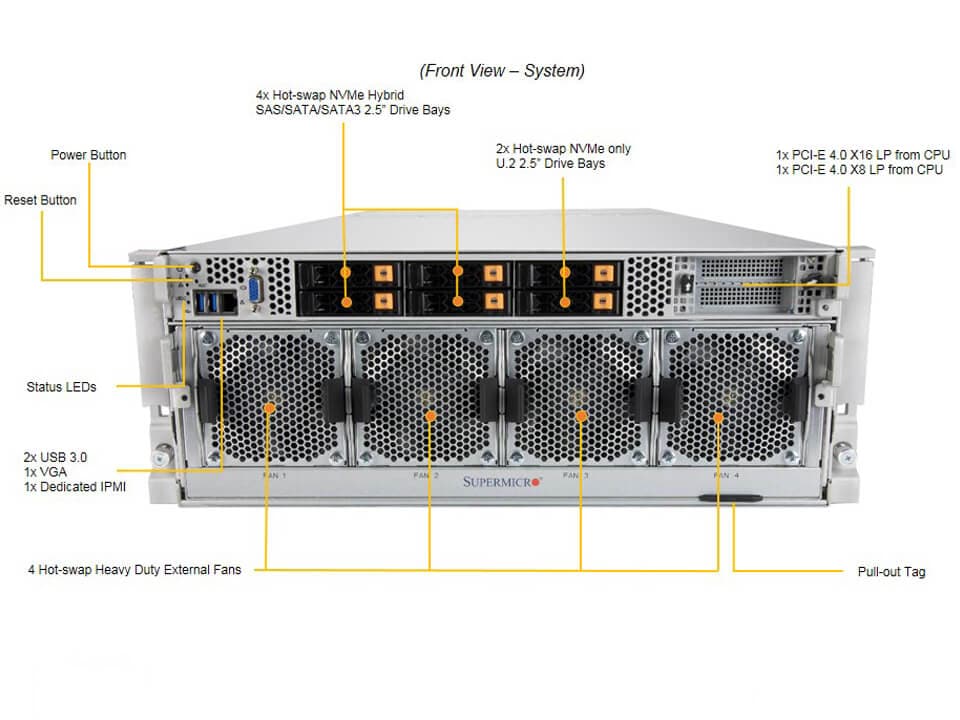

  5. 6 Hot-swap 2.5" NVMe drive bays
    (4 via PCIe switch, 2 via CPU)
    Up to 10 U.2 NVMe 2.5" drives available with an optional 4 drive bays at rear of system
...
...
AS-4124GO-NART
Specifications Resources & Downloads
Specifications
Product SKUs
A+ Server AS -4124GO-NART
Motherboard
Super H12DGO-6
Processor
CPU
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(front)
Video
  • 1 VGA port(Front)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-438G
Dimensions and Weight
Height
  • 6.9" (174 mm)
Width
  • 17.6" (446 mm)
Depth
  • 35.4" (900 mm)
Package
  • 29.5" (H) x 27.4" (W) x 44.9" (D)
Weight
  • Gross Weight: 225 lbs (102.1 kg)
  • Net Weight: 166 lbs (75.3 kg)
Available Color
  • Black Front & Silver Body

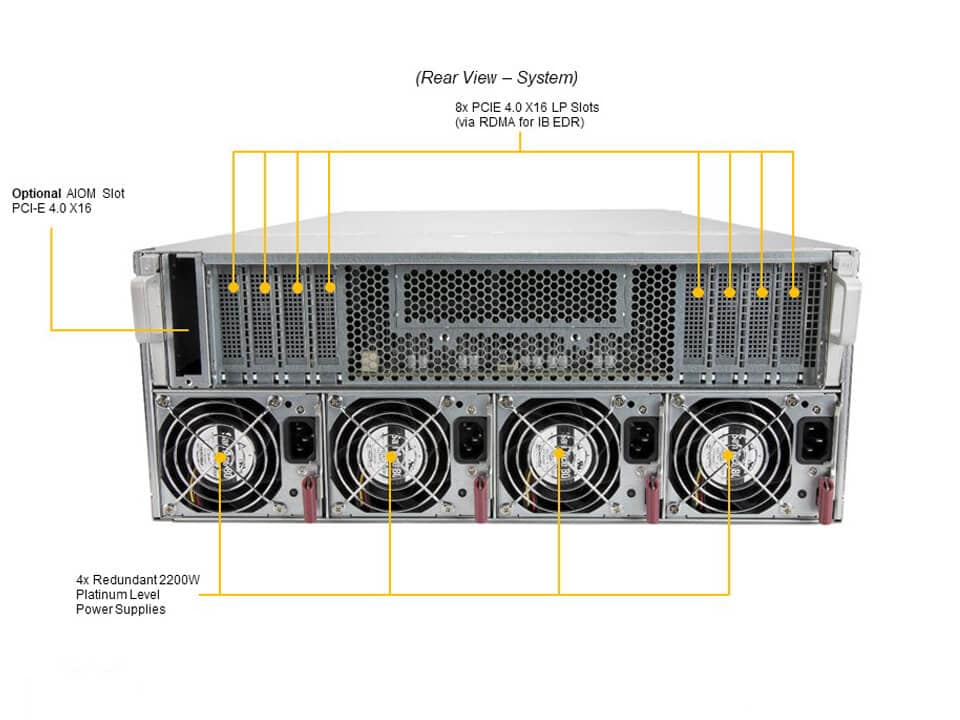

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x16 LP slot
    • 1 PCIe 4.0 x8 LP slot
    • 8 PCIe 4.0 x16 via PCI-E switch slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays
    • 6 front hot-swap 2.5" NVMe drive bays
  • Option A: Total 10 bays
    • 6 front hot-swap 2.5" NVMe drive bays
    • 4 rear hot-swap 2.5" NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 4 hot-swap 11.5K RPM heavy duty Fan(s)
Power Supply
4x 2200W
4x 2200W Redundant (3 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)106.5 x 82.4 x 203.5 mm
AC Input1200W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
2000W: 180-220Vac (UL/CUL only)
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 200-230Vac / 50-60Hz
1980W: 220-230Vac
2200W: 220-240Vac (UL/cUL only)
2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
2090W: 230-240Vac
2090W: 230-240Vdc / 50-60Hz (for CQC only)
2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12VMax: 41.67A (100Vac-240Vac)
Max: 10A / Min: 9.5A (200Vac-220Vac) (CQC only)
Max: 10A / Min: 9.8A (220Vac-230Vac) (CQC only)
Max: 10A / Min: 9.8A (230Vdc-240Vdc) (CQC only)
Max: 10A / Min: 9.8A (230Vac-240Vac) (CQC only)
12V SBMax: 3A
Output TypeBackplanes (connector)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
