SuperServer AS -5014A-TT (Complete System Only)

UP full-tower workstation for AI, design, simulation and media

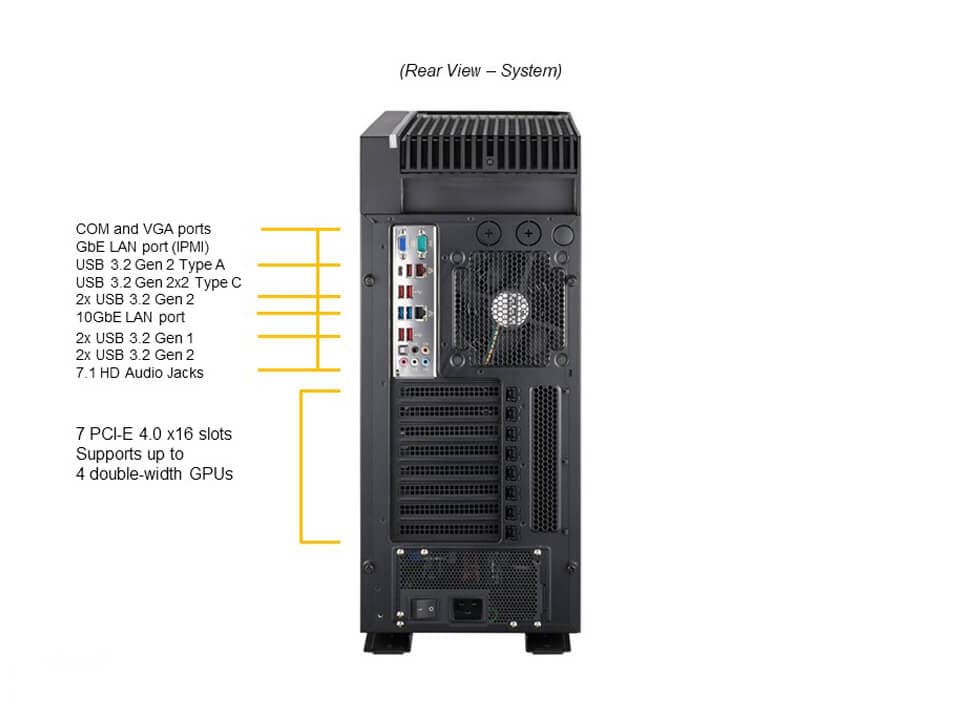

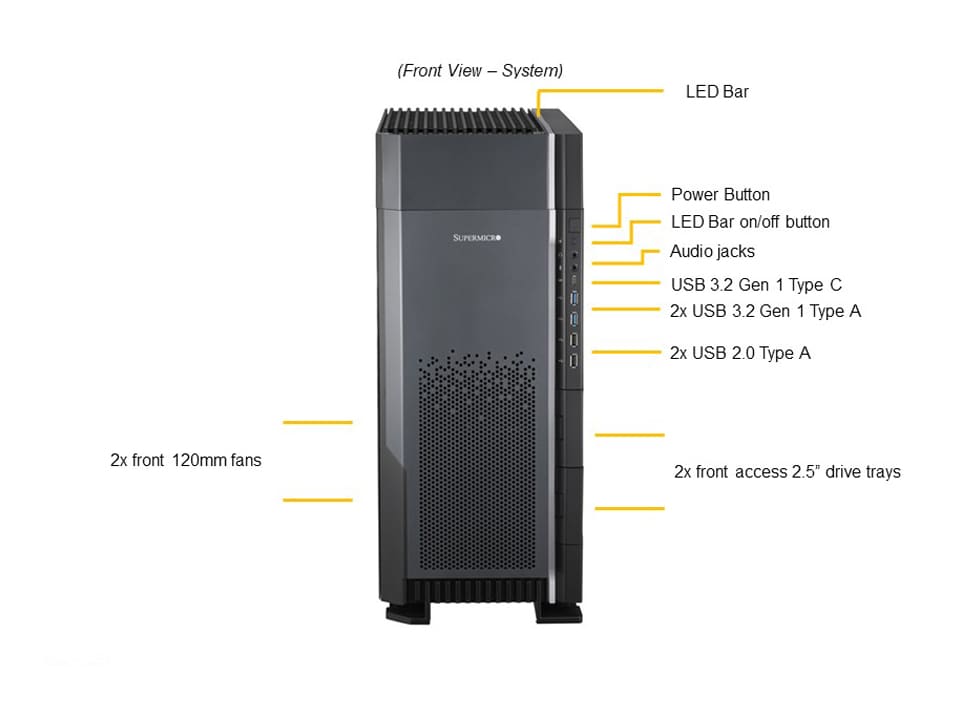

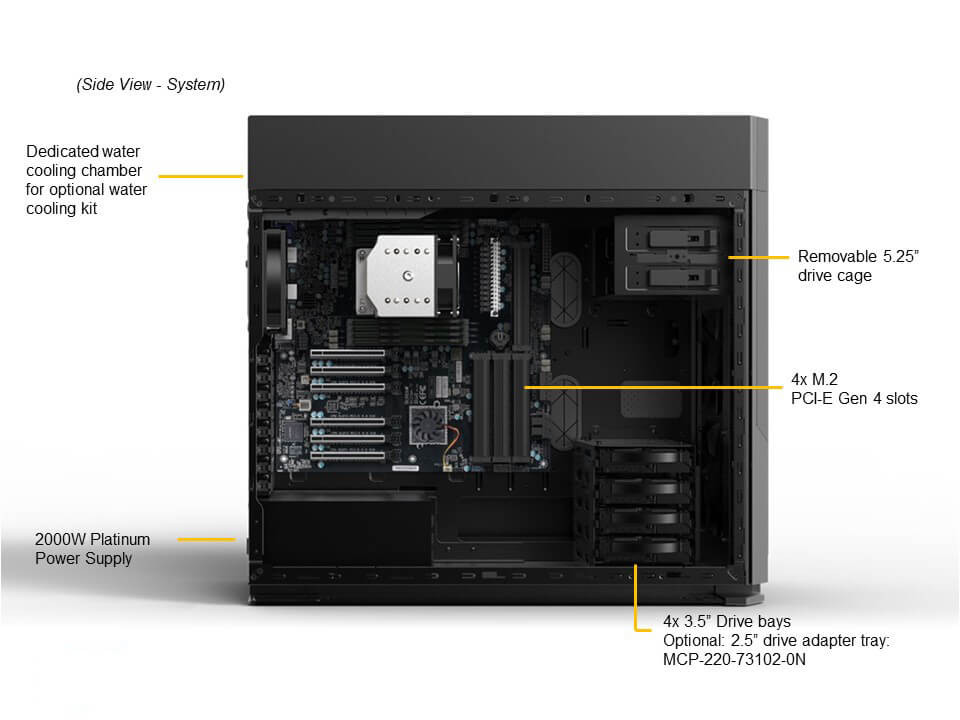

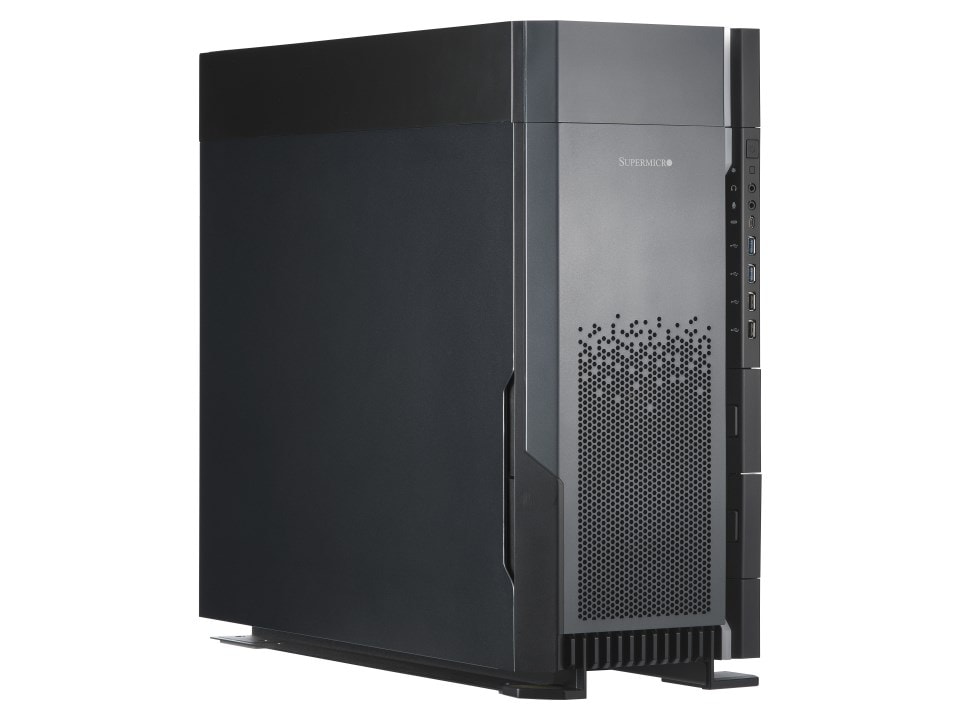

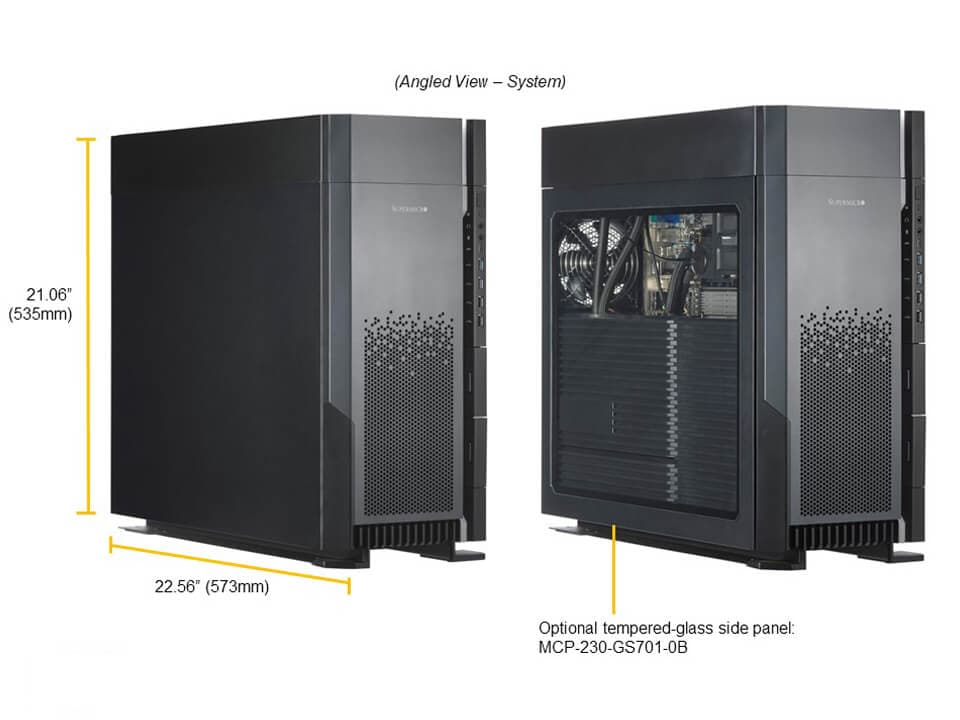

AS -5014A-TT Main AS -5014A-TT Angle AS -5014A-TT Front AS -5014A-TT Rear AS -5014A-TT Side
Integrated Board: M12SWA-TF
Learn more

Key Applications

  • 2D/3D Content Creation
  • VR Content Development
  • AI Inference / Training
  • 3D Rendering
  • Product Design and Engineering Simulation

Key Features

  1. 2000W Platinum Power Supply
  2. AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
  3. 8 DIMMs; up to 2TB Registered ECC DDR4 3200-MHz Memory
  4. 6 PCIe 4.0 x16 slots
    4 M.2 slots: PCIe 4.0 x4 (Software RAID 0, 1, 5 & 10)
    2 U.2 Interface: PCIe 4.0x 4 (Software RAID 0,1)
  5. 1x 10GBase-T LAN port, 1x 1GbE LAN port (shared with IPMI)
  6. 4 fixed internal 3.5"/2.5" SATA drive bays, 2 fixed front 2.5" SATA drive bays
...
...
AS-5014A-TT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Workstation AS -5014A-TT
Motherboard
Super M12SWA-TF
Processor
CPU
  • Single processor(s)
  • AMD Ryzen™ Threadripper™ PRO 3000/5000 WX-Series
Core Count
  • Up to 64C/128T; Up to 256MB Cache
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
  • Supports up to 280W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 1 quad-width or 2 triple-width or 4 double-width or 4 single-width GPUs
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, RTX 6000 Ada Generation, RTX 4090, RTX 4080, RTX 3090
  • AMD PCIe: Radeon Pro W7500, Radeon Pro W7800, Radeon Pro W6800
  • View GPU Options
Certification
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • AMD SP3 SATA
Network Connectivity
  • 1 RJ45 10GbE with Marvell® AQC113C
  • 1 RJ45 1GbE with Intel® I210-AT
  • View AOC Options
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port (Intel® I210-AT) (IPMI shared on LAN port 1)
  • 1 RJ45 10 GbE LAN port
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 1 USB 3.2 Gen2 Type-C port(Rear)
  • 5 USB 3.2 Gen2 Type-A ports(Rear)
  • 2 USB 3.2 Gen2 Type-A ports(Front)
  • 1 USB 3.2 Gen2 Type-C port(Front)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
Audio
  • 7.1 HD Audio
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
FAN
  • Status monitor for speed control
Voltage
  • Monitors CPU Core Voltages, +3.3V, +12V, +3.3Vstb, +5Vstb, Vcore, Vmem
Temperature
  • Monitoring for CPU and chassis environment; CPU Thermal Trip Support; I²C Temperature Sensing Logic
Chassis
Form Factor
  • 5U (Full Tower) Rackmount
Model
Dimensions and Weight
Height
  • 21.06" (535 mm)
Width
  • 8.74" (222 mm)
Depth
  • 22.56" (573 mm)
Package
  • 27.8" (H) x 14.6" (W) x 28.5" (D)
Weight
  • Gross Weight: 39 lbs (17.74 kg)
  • Net Weight: 20 lbs (14.9 kg)
Available Color
  • Black
Front Panel
Port
  • Audio Jacks
  • USB 2.0
  • USB 3.0 Gen 1-Type-A
  • USB 3.0 Gen 1-Type-c
Buttons
  • LED light bar ON/OFF
  • Power On/Off button
LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 4 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays
    • 2 front fixed 2.5" SATA* drive bays
    • 4 internal fixed 3.5" SATA* drive bays
  • (*SATA support may require additional storage controller and/or cables)
  • View Drive Options
M.2
Peripheral Bays
  • 2 5.25" bays
System Cooling
Fans
  • 1 Rear Exhaust Fan 120mm Fan(s)
  • 2 Front Intake 120mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
CPU coolers and fans FAN-0124L4 3 12cm (1850rpm) cooling Fan
FAN-0221L4 3 12cm (2200rpm) cooling Fan
FAN-0222L4 3 12cm (6400rpm) cooling Fan
SNK-P0066AP4 1 High Performance 4.5U Active CPU Heat Sink for AMD Socket SP3 Platform
SNK-P3045A4 1 1U Closed Loop Liquid Cooling Module for AMD Threadripper Pro
Others MCP-290-GS708-0N 1 GS7 Chassis Intrusion Switch
AOM-TPM-9665V 1 TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF
Power cords CBL-PWCD-0240-IS 1 Power cord C19 to CEE 7/7 (EU/KR)
CBL-PWCD-0445 1 Power cord IEC60320, LP-53 to LS-19 (JPN)
CBL-0238L 1 Power cord C19 to AS 3112 (AU)
Rackmount rails and conversion kit MCP-290-GS706-0N 1 GS7 6U Rail Conversion Kit for rack mount (need to add MCP-290-00057-0N).
MCP-290-00057-0N 1 RAIL SET, QUICK/QUICK For 17.2"W

A+ Workstation AS -5014A-TT (Complete System Only )

Certain products may not be available in your region
