SuperServer AS -8125GS-TNMR2 (Complete System Only)

DP AMD 8U System with AMD MI300X

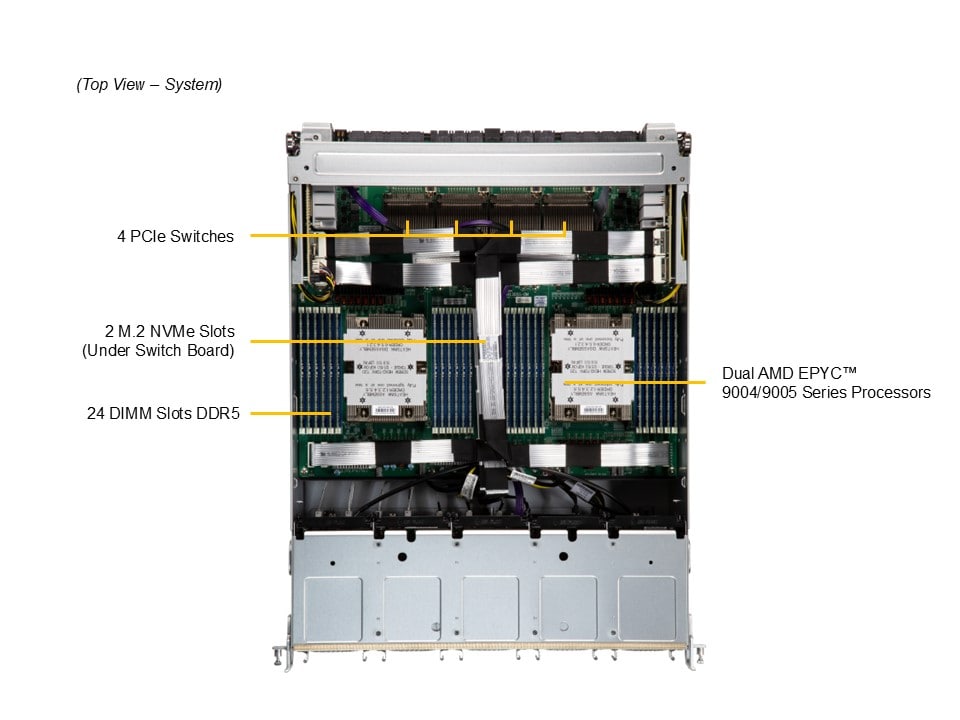

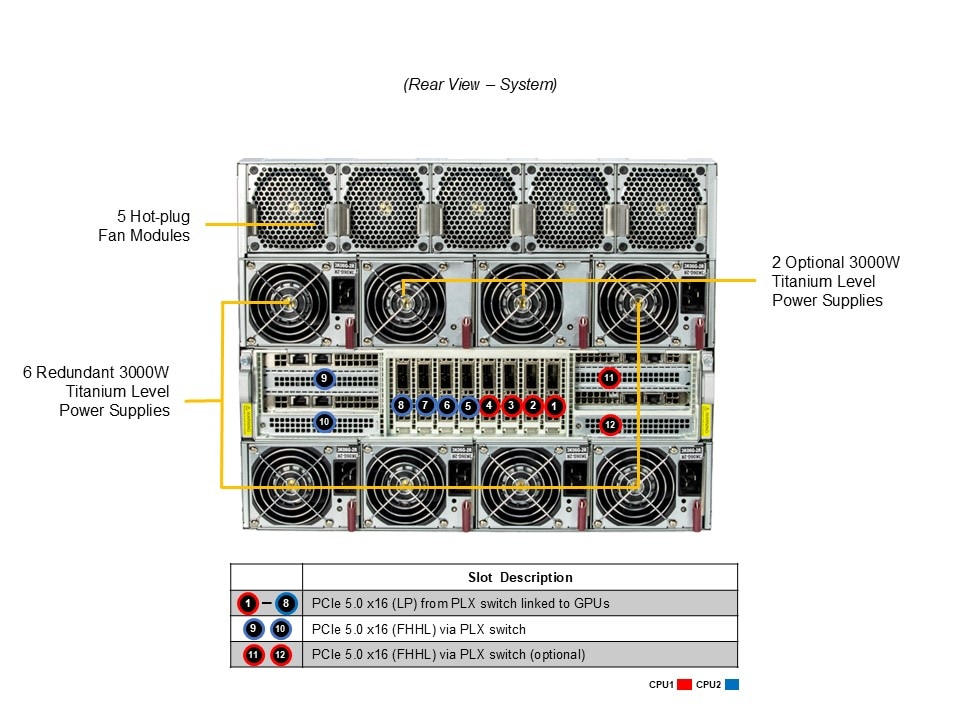

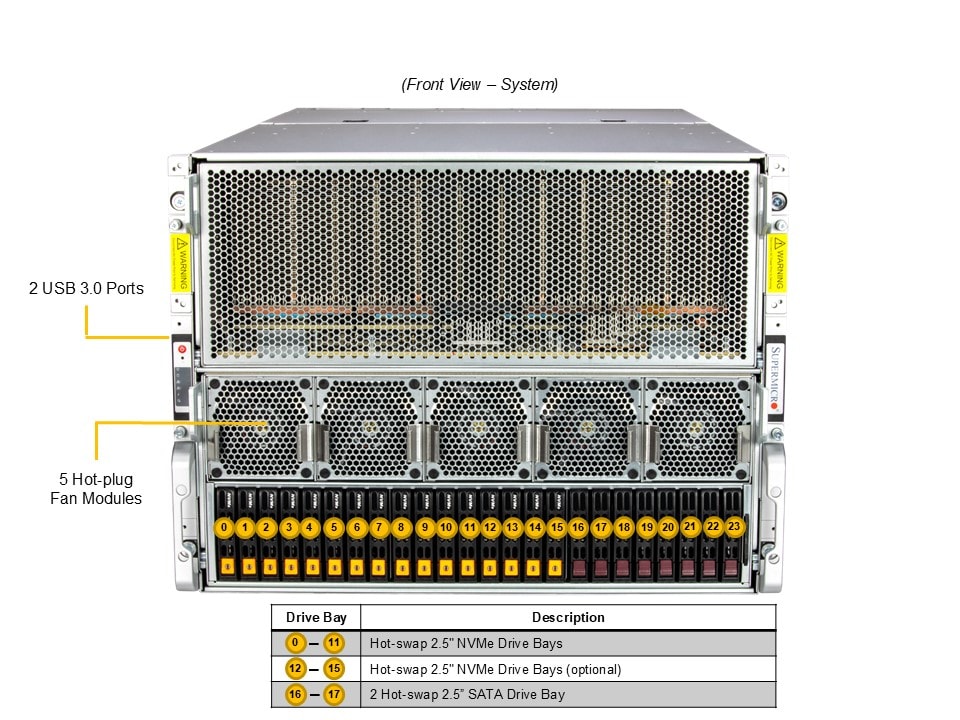

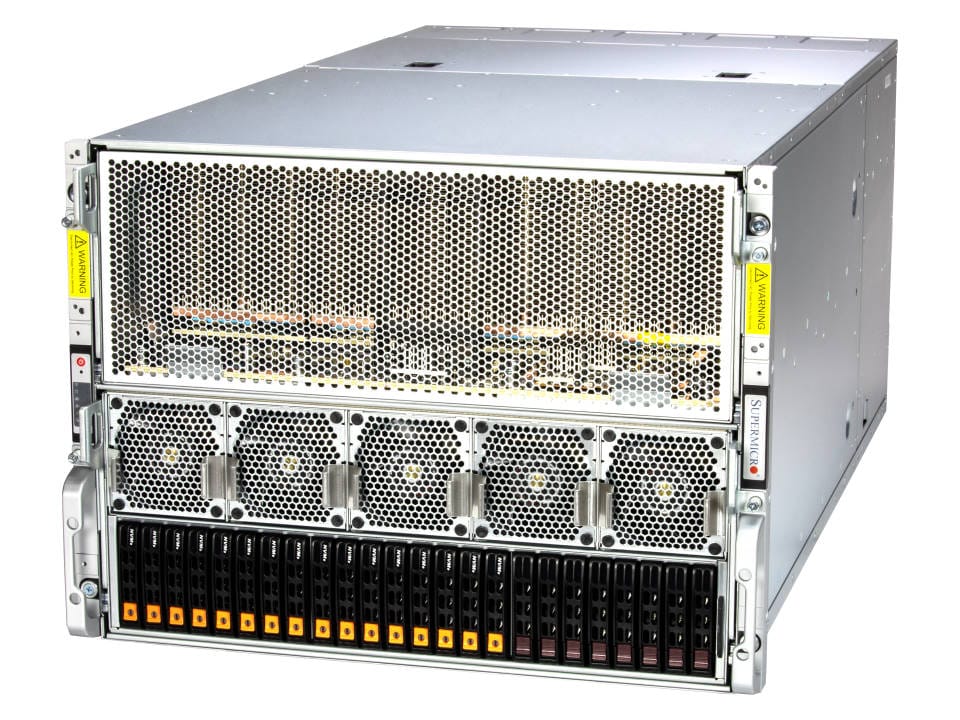

AS -8125GS-TNMR2 Main AS -8125GS-TNMR2 Angle AS -8125GS-TNMR2 Top AS -8125GS-TNMR2 Top1 AS -8125GS-TNMR2 Front AS -8125GS-TNMR2 Rear
Integrated Board: H13DSG-OM

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Industrial Automation, Retail
  • Climate and Weather Modeling

Key Features

  1. 8 NIC for GPU direct RDMA (1:1 GPU Ratio)
    High density 8U system with AMD Instinct MI300X 8-GPU
  2. 24 DIMM Slots; Up to 6TB DRAM; 4800 ECC DDR5 LRDIMM;RDIMM;
  3. 8 PCIe Gen 5.0 X16 LP, and up to 4 PCIe Gen 5.0 X16 FHFL Slots
  4. Flexible networking options
  5. 2x 2.5" Hot-swap  SATA drive bays
    1 M.2 NVMe for boot drive only
    up to 16x 2.5" Hot-swap  NVMe drive bays (12 by default + 4 optional)
  6. 10 heavy duty fans with optimal fan speed control
  7. 6x 3000W redundant Titanium level power supplies
...
...
AS-8125GS-TNMR2
Specifications Resources & Downloads
Specifications
Product SKUs
A+ Server AS -8125GS-TNMR2
Motherboard
Super H13DSG-OM
Processor
CPU
Note
  • Supports up to 400W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 onboard GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • AMD Infinity Fabric™ Link
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • AMD SP5
Network Connectivity
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP801TS
Dimensions and Weight
Height
  • 14" (355.6 mm)
Width
  • 17.2" (437 mm)
Depth
  • 33.2" (843.28 mm)
Package
  • 29.5" (H) x 27.5" (W) x 51.2" (D)
Weight
  • Gross Weight: 225 lbs (102.1 kg)
  • Net Weight: 166 lbs (75.3 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 8 PCIe 5.0 x16 LP slots
    • 2 PCIe 5.0 x16 FHFL slots
  • Option A
    • 8 PCIe 5.0 x16 LP slots
    • 4 PCIe 5.0 x16 FHFL slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 18 bays
    • 12 front hot-swap 2.5" NVMe drive bays
    • 2 front hot-swap 2.5" SATA drive bays
    • 4 front hot-swap 2.5" NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables)
  • View Drive Options
M.2
System Cooling
Fans
  • N/A
Power Supply
6x 3000W
6x 3000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 82.1 x 245.5 mm
AC Input3000W: 0240Vdc / 50-60Hz (for CQC only)
2880W: 200-207Vac / 50-60Hz
3000W: 207-240Vac / 50-60Hz
3000W:
DC Input
+12VMax: 91.66A / Min: 0A (200Vac-240Vac)
12V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
