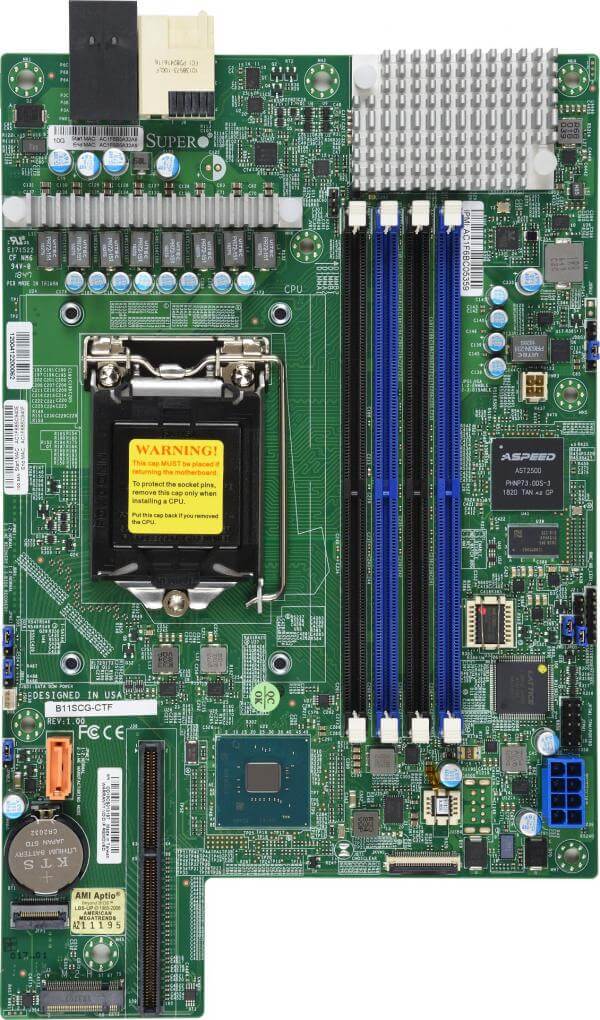

B11SCG-CTF

B11SCG-CTF

Key Features


  1. Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  2. Intel® C246
  3. Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  4. 1 PCIe 3.0 x16 slots (16/NA or 8/8)
    1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
  5. Dual LAN with
    Two(2)10GbE Ethernet ports from KR interface to BP
...
...

Optimized Servers


SBI-4119MG-X
Specifications Resources Parts List
Specifications
Product SKUs
MBD-B11SCG-CTF
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.8" x 12.6" (12.19cm x 32cm)
Processor
CPU
  • Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
  • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Memory Type
  • 2666/2400/2133 MT/s SDRAM 72-bit,
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C246
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN, Two(2)10GbE Ethernet ports from KR interface to BP
Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16 slots (16/NA or 8/8)
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • ACPI 6.1
  • UEFI 2.7
  • SMBIOS 2.8
  • Plug and Play (PnP)
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
PC Health Monitoring
Voltage
  • VBAT, PCH temperature, Monitors CPU voltages, CPU temperature, +12V, Memory Voltages
LED
  • Power LED
Other Features
  • Control of power-on for recovery from AC power loss
  • ACPI power management
