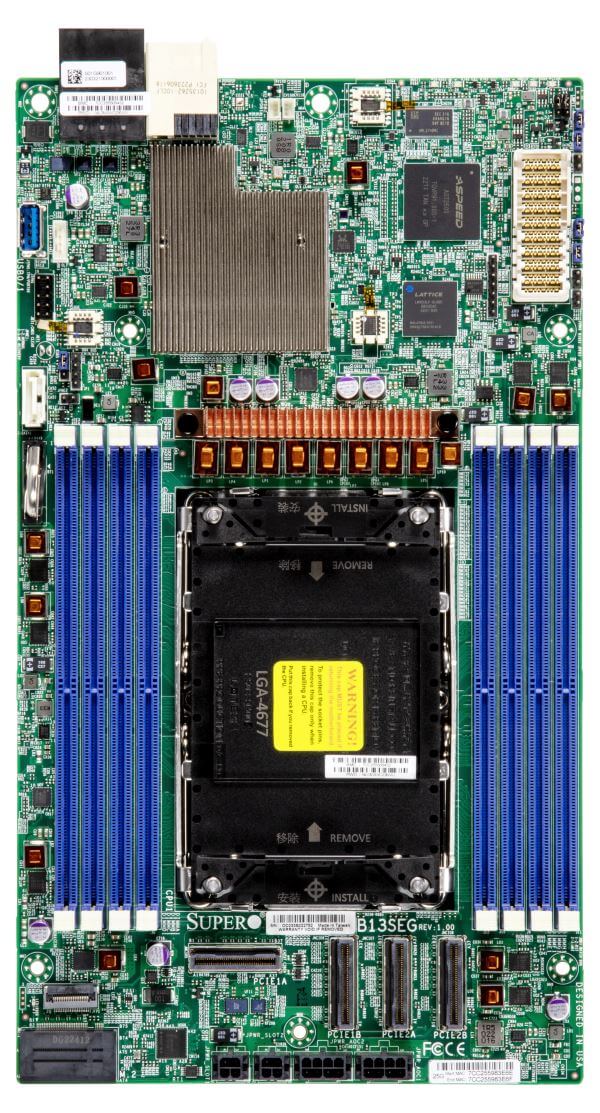

B13SEG

B13SEG
8U SuperBlade

Key Features


  1. 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 270W (air-cooled) or 350W (liquid-cooled)
  2. Intel C741® Chipset
  3. Up to 2TB ECC RDIMM/RDIMM 3DS DDR5-5600MT/s in 8 DIMM slots
  4. 4x PCIe 5.0 x8 MCIO connectors for GPU Riser/E1S/NVMe/AIOM add on module
  5. Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN
  6. Dual M.2 M-Key 2280 PCIe 5.0 Connector
  7. Mezzanine PCIe 5.0 x16 connector for Mezzanine Daughter Card
...
...

Optimized Servers


SBI-411E-1G SBI-411E-5G
Specifications Resources Parts List
Specifications
Product SKUs
MBD-B13SEG
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 6.3" x 11.169" (16cm x 28.37cm)
Processor
CPU
Core
  • Up to 60 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C741
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN
Input / Output
USB
  • 1 USB 3 port(s) (1 type A)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16 Mezzanine card connector,
  • 4 PCIe 5.0 x8 MCIO connector, For GPU Riser/E1S/NVMe/AIOM add on module
M.2
  • M.2 Interface: 2 PCIe 5.0 x4
  • Form Factor: 2280
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +3.3V, +12V, +3.3V standby, Vmem, Peripheral temperature, +12V Standby, Vcore, Temperature of GPU, NvMe, SAS HDD
LED
  • UID/Remote UID
  • Power LED
  • CPU / System Overheat LED
  • LAN activity LED
  • HDD Activity LED
Temperature
  • CPU thermal trip support
  • Platform Environment Control Interface (PECI)/(TSI)
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Servers (Optimized for B13SEG)
SBI-411E-1G
SBI-411E-5G
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

B13SEG (For SuperServer Only)
