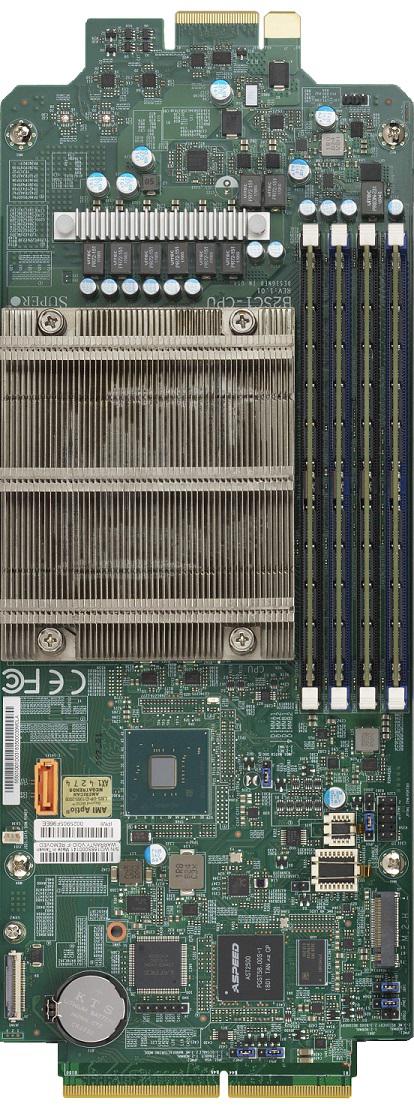

B2SC1-CPU

Key Features


  1. 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  2. Intel® C246
  3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

  4. 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
  5. 1 SATA3 (6 Gbps) ports;
  6. Dual LAN with 1GbE LAN via Intel® i350-AM2
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-B2SC1-CPU
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.8" x 12.6" (12.19cm x 32cm)
Processor
CPU
  • Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
  • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
Memory Type
  • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C246
SATA
  • 1 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE LAN via Intel® i350-AM2
Input / Output
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • N/A
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with UEFI BIOS
BIOS Features
  • ACPI 6.1
  • DMI (SMBIOS) 2.7
  • UEFI 2.6
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
PC Health Monitoring
Voltage
  • System temperature, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • Power LED
Temperature
  • Monitoring for CPU and chassis environment
Other Features
  • System level control
  • RoHS
  • M.2 NGFF connector
  • ACPI power management
Resources
Parts List

B2SC1-CPU (For SuperServer Only)

Certain products may not be available in your region
