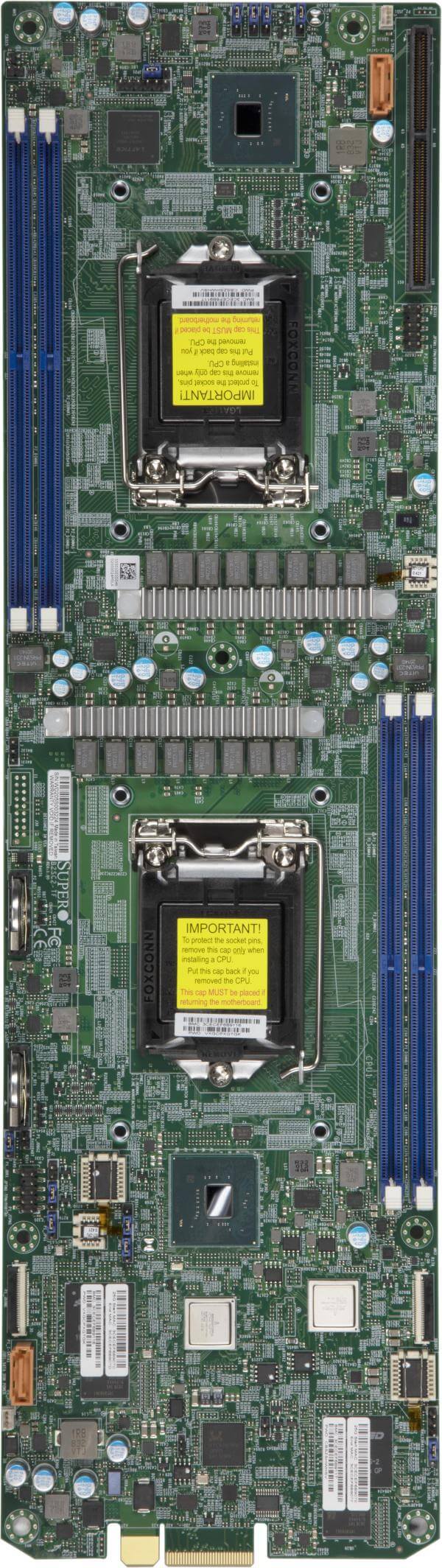

B2SC2-TF

B2SC2-TF

Key Features


  1. Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    Dual Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  2. Intel® C246
  3. Up to 64GB DDR4 ECC/non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
    Up to 64GB ECC VLP UDIMM DDR4-2666Mhz support in 2 DIMM slots per node

  4. 2x U.2 (PCIex4 only) via backplane per node_x000D_
    U.2 Interface: 2 PCIe 3.0 x4
  5. Dual LAN with 10Gbase-T
    Two(2)10GbE Ethernet ports from KR interface to BP
...
...

Optimized Servers


MBI-6219M-2N MBS-314E-6219M
Specifications Resources Parts List
Specifications
Product SKUs
MBD-B2SC2-TF
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.8" x 17" (12.19cm x 43.18cm)
Processor
CPU
  • Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
  • Dual Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
Core
  • Up to 8 cores
Note
  • BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 64GB ECC/non-ECC , DDR4-2666MT/s
  • Up to 64GB ECC VLP UDIMM DDR4-2666Mhz support in 2 DIMM slots per node
Memory Type
  • 64GB DDR4-2666MHz in 4 DIMM slots
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C246
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 10Gbase-T, Two(2)10GbE Ethernet ports from KR interface to BP
Input / Output
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Others
  • 1 SATA DOM and TPM header per node
Expansion Slots
PCIe
  • 2x U.2 (PCIex4 only) via backplane per node
System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • ACPI 6.1
  • UEFI 2.7
  • SMBIOS 2.8
  • SMBIOS 3.1
  • PCI FW 3.2
  • Plug and Play (PnP)
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, Monitors CPU voltages, +12V, Memory Voltages
LED
  • UID/Remote UID
  • Power LED
Other Features
  • Control of power-on for recovery from AC power loss
  • ACPI power management
