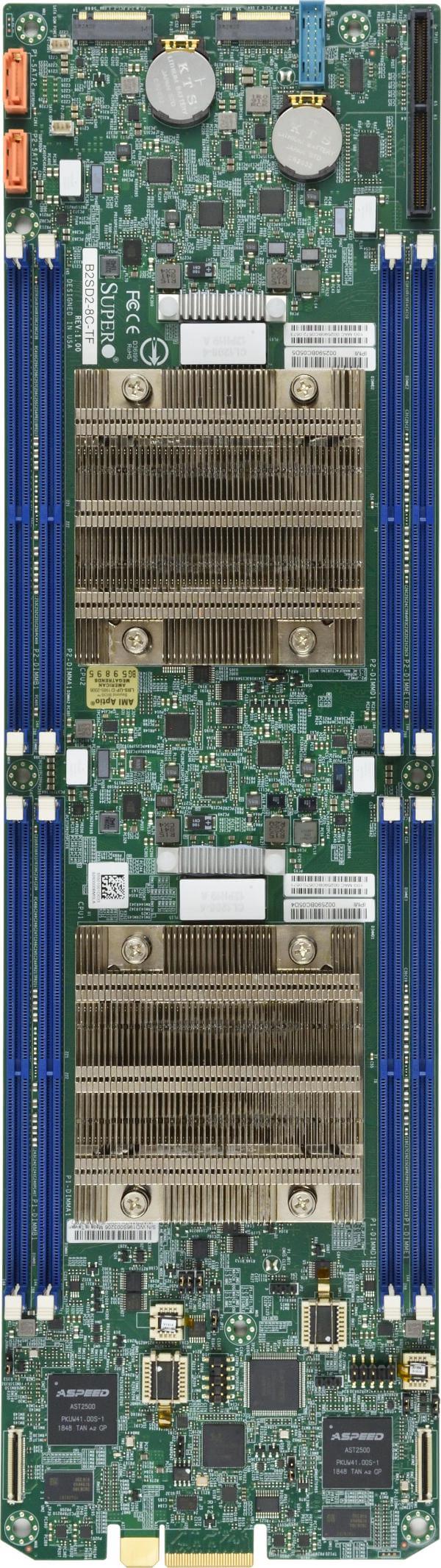

B2SD2-8C-TF

Key Features


  1. Intel® Xeon® D Processor (Skylake-D), Intel® Xeon® Processor D-2141I.
    Single Socket FCBGA-2518 supported, CPU TDP support 65W TDP
  2. Up to 128GB Registered ECC RDIMM, DDR4-2133MHz, in 4 DIMM slots
  3. 1 PCIe 3.0 x4
    M.2 Interface: 1 PCIe 3.0 x4
    M.2 Form Factor: 2242/2280/22110
    M.2 Key: M-Key
    U.2 Interface: 1 PCIe 3.0 x4
  4. Dual LAN with SoC
    Two(2)10GbE Ethernet ports from KR interface to BP
  5. System on Chip
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-B2SD2-8C-TF
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.803" x 17.086" (12.2cm x 43.39cm)
Processor
CPU
  • Intel® Xeon® Processor D-2141I, Intel® Xeon® D Processor (Skylake-D)
  • Single Socket FCBGA-2518 supported, CPU TDP supports Up to 65W TDP
Core
  • Up to 8 cores, 16 threads / 11MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB ECC RDIMM, DDR4-2133MT/s
Memory Type
  • 2133/2400 MT/s ECC DDR4 RDIMM VLP
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with SoC, Two(2)10GbE Ethernet ports from KR interface to BP
Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCIe
  • 1 PCIe 3.0 x4
M.2
  • M.2 Interface: 1 PCIe 3.0 x4
  • Form Factor: 2242/2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.1
  • UEFI 2.7
  • SMBIOS 2.8
  • SMBIOS 3.1
  • PCI FW 3.2
  • Plug and Play (PnP)
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, Monitors CPU voltages, +12V, Memory Voltages
LED
  • UID/Remote UID
  • Power LED
Other Features
  • Control of power-on for recovery from AC power loss
  • ACPI power management
Resources
Parts List

B2SD2-8C-TF (For SuperServer Only)
