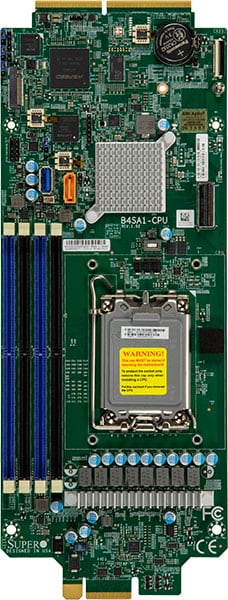

B4SA1-CPU

MicroBlade

Key Features


  1. 12th/13th Gen Intel® Core™ i5/i7/i9 Processors
  2. Single Socket LGA-1700, CPU TDP up to 125W
  3. Intel® W680 Chipset
  4. Up to 128GB DDR5 ECC UDIMM in 4 DIMM slots. Supports up to 4400MT/s (1DPC)
  5. 1 PCIe 4.0 x8 for AIOM Add-On-Module
  6. Dual LAN with Broadcom BCM57414 Dual-Port 10G Base-KR PCIe Gen 3 via AOM-BPNIO-MSH2
  7. Dual 1GbE LAN ports with Intel i350 via AOM-BPNIO-MSC
  8. M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH)
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-B4SA1-CPU
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.8" x 12.6" (12.192cm x 32.004cm)
Processor
CPU
  • 12th/13th Gen Intel® Core™ i5/i7/i9 Processors
  • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 125W TDP
Core
  • Up to 16 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB ECC UDIMM, DDR5-4400MT/s
Memory Type
  • 4400 MT/s
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB
  • UDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • N/A
On-Board Devices
Chipset
  • W680
Network Controllers
  • AIOM for LAN
Expansion Slots
PCIe
  • 1 PCIe 4.0 x8 AIOM, 2x U.2 SATA 3.0 PCIe x4 Gen 4 plus M.2 2280/22110 via AOM-BPNIO-MSH2 OR,
  • 1 PCIe 4.0 x8 AIOM, Up to 2x 2.5" SAS3 (12Gbps) drives via Avago 3008 controller on AOM-BPNIO-MSC
M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 22110, 2280
  • Key: M-Key
System BIOS
BIOS Type
  • 32MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later
Management
Software
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • Power LED
  • CPU / System Overheat LED
  • Fan failed LED
  • LAN activity LED
Other Features
  • RoHS
Operating Environment
Operating Temperature Range
  • 10°C - 38°C (50°F - 100°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Parts List

B4SA1-CPU

Certain products may not be available in your region
