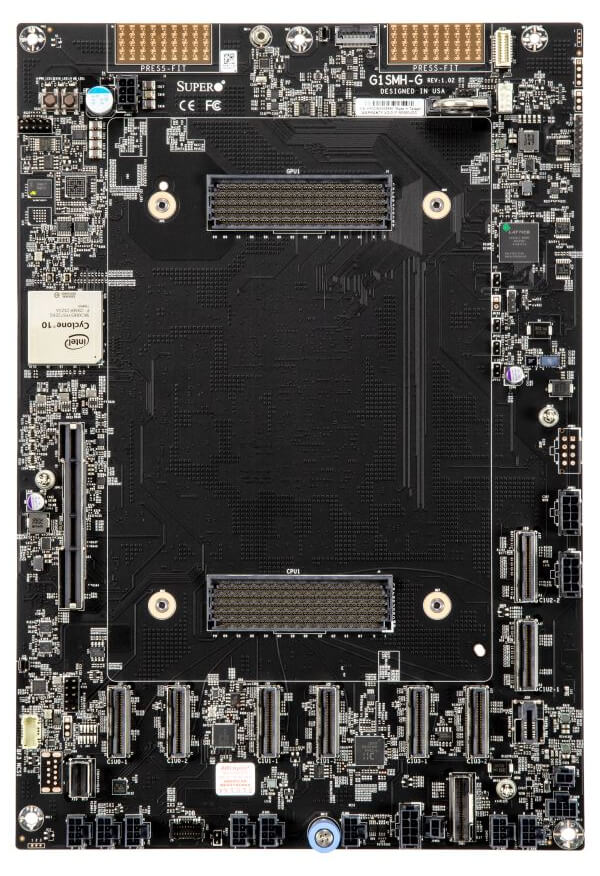

G1SMH-G

G1SMH-G
MGX

Key Features


  1. NVIDIA GH200 Grace Hopper™ Superchip
  2. Intel Cyclone 10 GX FPGA
  3. 6x PCIe 5.0 x8 M-XIO
  4. DC-SCM support
  5. 2x NVMe Gen.5 M.2
...
...

Optimized Servers


ARS-111GL-NHR ARS-111GL-DNHR-LCC ARS-111GL-NHR-LCC
Specifications Resources Parts List
Specifications
Product SKUs
MBD-G1SMH-G
Physical Stats
Form Factor
  • DC-MHS DNO Type2
Dimension
  • 8.3" x 12" (21cm x 30.48cm)
Processor
CPU
  • NVIDIA GH200 Grace Hopper™ Superchip
  • Single Socket 2x Mirror Mezz supported, CPU TDP supports Up to 1000W TDP
Core
  • Up to 72 cores
System Memory
Memory Capacity
  • Up to 480GB ECC Embedded on the NVIDIA Superchip, LPDDR5X-4266MT/s
Memory Type
  • 4266 MT/s ECC LPDDR5X Embedded on the NVIDIA Superchip
DIMM Sizes
  • N/A
Memory Voltage
  • N/A
On-Board Devices
Chipset
  • Intel Cyclone 10 GX FPGA
Network Controllers
  • N/A
Expansion Slots
PCIe
  • 6 PCIe 5.0 x8 M-XIO
M.2
  • M.2 Interface: 2 NVMe Gen.5
  • Form Factor: 22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
PC Health Monitoring
Other Features
  • DC-SCM support
Resources
Servers (Optimized for G1SMH-G)
ARS-111GL-NHR
ARS-111GL-DNHR-LCC
ARS-111GL-NHR-LCC
...
Parts List

G1SMH-G (For SuperServer Only)
