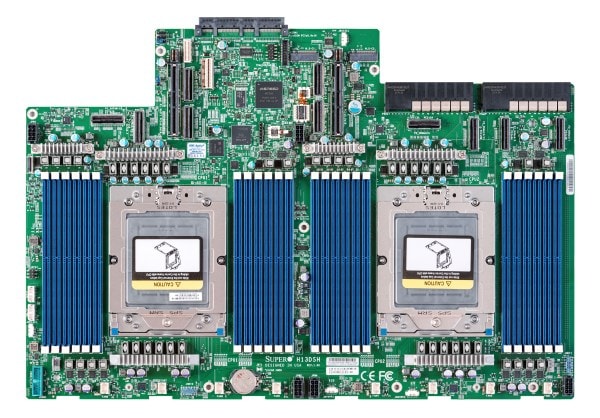

Hyper DP Server board

Key Features


  1. AMD EPYC™ 9004 series Processors
  2. Up to 6TB 3DS ECC RDIMM, DDR5-4800MHz in 24 DIMM slots
  3. Integrated IPMI 2.0 + KVM with dedicated LAN
  4. 32x SATA3 Hybrid via MCIO, 1 AIOM slot
  5. ASPEED AST2600 BMC graphics via I/O board
  6. 10 PCIe 5.0 x8 MCIO connectors
  7. 4x USB 3.0 ports (2 rear via I/O board + 2 via header)
...
...

Optimized Servers


AS -1125HS-TNR AS -2025HS-TNR AS -2125HS-TNR
Specifications Resources Parts List
Specifications
Product SKUs
MBD-H13DSH
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 17" x 11.5" (43.18cm x 29.21cm)
Processor
CPU
Core
  • Up to 256 cores, 512 threads
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
Memory Type
  • 4800/6000 MT/s ECC DDR5 RDIMM (3DS)
    Up to 6TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
    Up to 9TB 3DS ECC Registered RDIMM, DDR5-6000MT/s (*Board revision 2.x required for AMD EPYC 9005 series only)
DIMM Sizes
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • N/A
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port via I/O board
USB
  • 2 USB 3.0 port(s) (2 via header)
TPM
  • 1 TPM Header
Others
  • 6 MCIO (PCIe 5.0 x8) Port(s)
  • 4 MCIO (PCIe 5.0 x8/SATA3) Port(s)
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16 Right Riser Slot,
  • 1 PCIe 5.0 x16 Left Riser Slot
M.2
  • M.2 Interface: 2 PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • Plug and Play (PnP)
  • USB Keyboard support
Management
Software
Power Configurations
  • Power-on mode for AC power recovery, Power button override mechanism, ACPI / ACPM Power Management
PC Health Monitoring
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
  • Suspend static indicator LED
  • CPU / System Overheat LED
Other Features
  • RoT
FAN
  • 8x 6-pin fan headers (up to 8 fans)
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Servers (Optimized for H13DSH)
AS -1125HS-TNR
AS -2025HS-TNR
AS -2125HS-TNR
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

H13DSH (For A+ Server Only) New
