Supermicro® OSNEXUS Software-Defined Storage Solution

QuantaStor™, a simplified scale-up and scale-out software-defined storage solution for files, blocks, and objects

Solution Overview

With rapid growth of business activities and transactions, exponential data growth brings more IT challenges to organizations. How does an IT organization effectively and efficiently deploy a storage solution, manage and maintain multiple non-integrated clusters, and access data faster and turn it into useful insight meanwhile without exceeding tight IT budgets? This has become a critical concern that organizations care about, to which Supermicro and OSNEXUS offer a compelling solution.

Today Supermicro and OENEXUS offer an integrated file, block, and object storage solution that can easily scale-up and scale-out, and unifies security enforcement and storage management across clusters and sites, to help organizations overcome these critical challenges.

QuantaStor diagram
OSNEXUS QuantaStor

Solution Features

OSNEXUS’s QuantaStor delivers both scale-up and scale-out in a single platform and offers unified file, block, and object storage. Its Storage Grid Technology greatly reduces the complexity of cluster management by combining storage appliances together across public and private clouds to manage all of the components as one.

ストレージ・グリッド・テクノロジー

Storage Grid Technology

Built-in to the platform and unified management of QuantaStor storage servers and clusters across racks, sites, and clouds.
ファイル、ブロック、オブジェクトの統合

Unified File, Block & Object

All major storage protocols are supported including NFS/SMB, iSCSI/FC, and S3.
エンドツーエンドのセキュリティ

End-to-End Security

IT Advanced RBAC, end-to-end encryption support, and compliance with NIST 800-53, 800-171, HIPAA & CJIS.
Flexibility

Flexibility

The broadest hardware portfolio and deep hardware integration
Built on an Open Storage Foundation

Built on an Open Storage Foundation

QuantaStor is integrated with enterprise-grade open storage technologies (Ceph & ZFS).

Use Cases

ITサービス

IT Services

Virtualization, Databases
銀行

Banking

High-Performance Block Storage and Remote Replication
金融&保険

Finance & Insurance

Long Term Archive, Data Lakes
EDU/Research

EDU/Research

Biology/Microscopy, Physics/Astronomy Departments
M&E

M&E

Media Editing, Archive
MSPs/CSPs

MSPs/CSPs

Dynamic Deployment on Commodity Hardware
医疗

Healthcare

PACS Images, Data Lakes
GOV / Defense Industry

GOV / Defense Industry

Supermicro-OSNEXUS Scale-Out & Scale-Up Configurator

With deep hardware integration with QuantaStor, Supermicro offers the broadest product portfolio that provides customers more flexibility to choose ones that fit their needs best. Together with OSNEXUS, we deliver a unified file, block, and object storage solution that not only simplifies the cluster management at scale but reduces the total cost of ownership.

Supermicro-QuantaStor Scale-out Storage Cluster – SAN/NAS & S3

Supermicro-QuantaStor Scale-up Storage Cluster – SAN/NAS

* For any requests, please contact Osnexus-PM@supermicro.com or APAC_osnexus-pm@supermicro.com (for APAC region).

Certified Servers and JBODs for Supermicro-OSNEXUS Reference Architecture

Scale-Out:

ImageServer SKUDescription
SSG-121E-NES24RSSG-121E-NES24R1U X13 All flash E1.S Petascale Storage Server

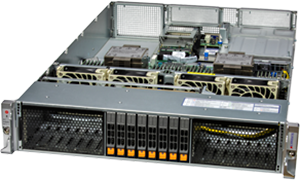

SYS-221H-TNRSYS-221H-TNR2U X13 16x 2.5” Hyper All-flash Server

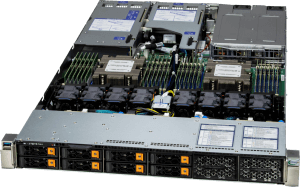

AS -1125HS-TNRAS -1125HS-TNR1U H13 8x 2.5” Hyper A+ All-flash Server

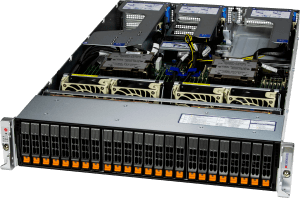

AS -2125HS-TNRAS -2125HS-TNR2U H13 24x 2.5” Hyper A+ All-flash Server

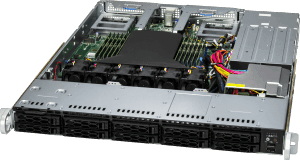

AS -1115CS-TNRAS -1115CS-TNR1U H3 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays

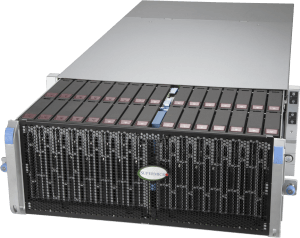

SSG-640SP-E1CR60SSG-640SP-E1CR604U X12 1-node 60-bay top-loading SuperStorage

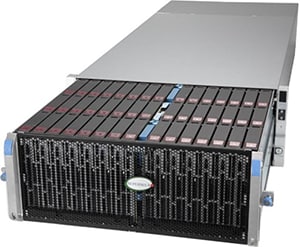

SSG-640SP-E1CR90SSG-640SP-E1CR904U X12 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives 2x Fixed slim SATA SSD 2x NVMe M.2

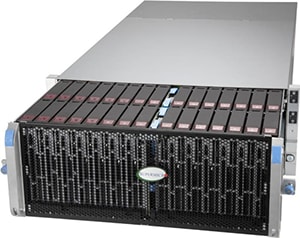

SSG-640SP-DE1CR60SSG-640SP-DE1CR604U X12 60 3.5"/2.5" Hot-swap SAS3/SATA3 drives (Each node controls 30 drives)

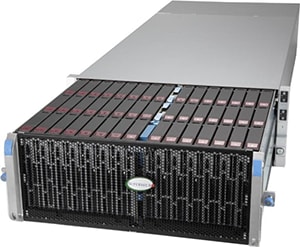

SSG-640SP-DE1CR90SSG-640SP-DE1CR904U X12 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives (Each node controls 45 drives)
SSG-641E-E1CR36LSSG-641E-E1CR36L4U X13 36x 3.5"/2.5" Hot-swap SAS3/SATA3 drives 2x Rear 2.5" SATA Slots 2x NVMe M.2

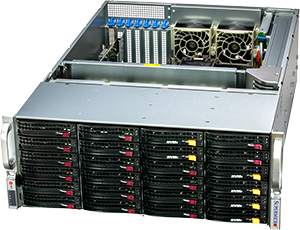

SSG-641E-E1CR24LSSG-641E-E1CR24L4U X13 24x 3.5"/2.5" Hot-swap SAS3/SATA3 drives 2x Rear 2.5" SATA Slots 2x NVMe M.2

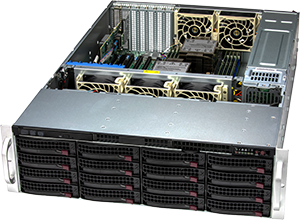

SSG-631E-E1CR16LSSG-631E-E1CR16L3U X13 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives 2x Rear 2.5" SATA Slots 2x NVMe M.2

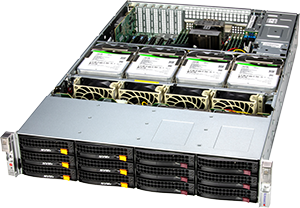

SSG-621E-ACR16LSSG-621E-ACR16L2U X13 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives 2x Rear 2.5" SATA Slots 2x NVMe M.2

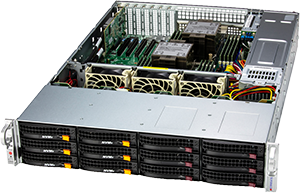

SSG-621E-ACR12LSSG-621E-ACR12L2U X13 12x 3.5"/2.5" Hot-swap SAS3/SATA3 drives 2x Rear 2.5" SATA Slots 2x NVMe M.2

Scale-Up:

ImageHeadnode Server SKUDescription

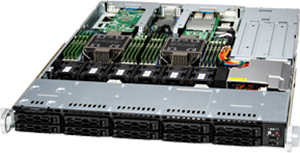

SYS-121C-TN10RSYS-121C-TN10R1U X13 10x 2.5" CloudDC SuperServer
SYS-621C-TN12RSYS-621C-TN12R2U X13 12x 3.5" CloudDC SuperServer

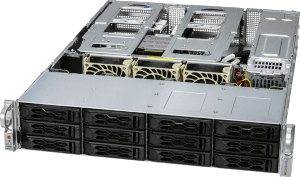

AS -2015CS-TNRAS -2015CS-TNR2U H13 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays

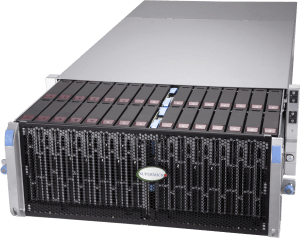

SSG-640SP-DE2CR60SSG-640SP-DE2CR604U X12 2-node 60-bay top-loading SuperStorage with Enterprise High Availability (SBB) Architecture, shared storage, fully redundant

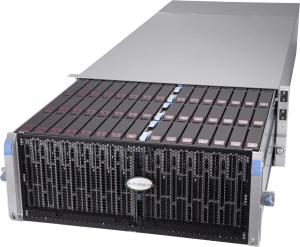

SSG-640SP-DE2CR90SSG-640SP-DE2CR904U X12 2-node 90-bay top-loading SuperStorage with Enterprise High Availability (SBB) Architecture, shared storage, fully redundant
ImageJBOD SKUDescription

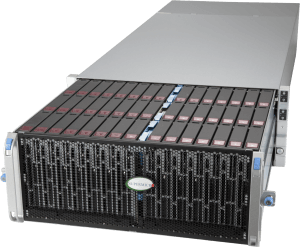

CSE-947HE2C-R2K05JBODCSE-947HE2C-R2K05JBOD4U 90-bay top-loading JBOD with dual-path enclosure
CSE-947SE2C-R1K66JBODCSE-947SE2C-R1K66JBOD4U 60-bay top-loading JBOD with dual-path enclosure
CSE-847E2C-R1K23JBODCSE-847E2C-R1K23JBOD4U 44x 3.5" double-sided JBOD
CSE-216BE2C-R609JBODCSE-216BE2C-R609JBOD2U 24x 2.5" JBOD
CSE-846BE2C-R1K03JBODCSE-846BE2C-R1K03JBOD4U 24x 3.5" JBOD
CSE-826BE2C-R609JBODCSE-826BE2C-R609JBOD2U 12x 3.5" JBOD
Resources

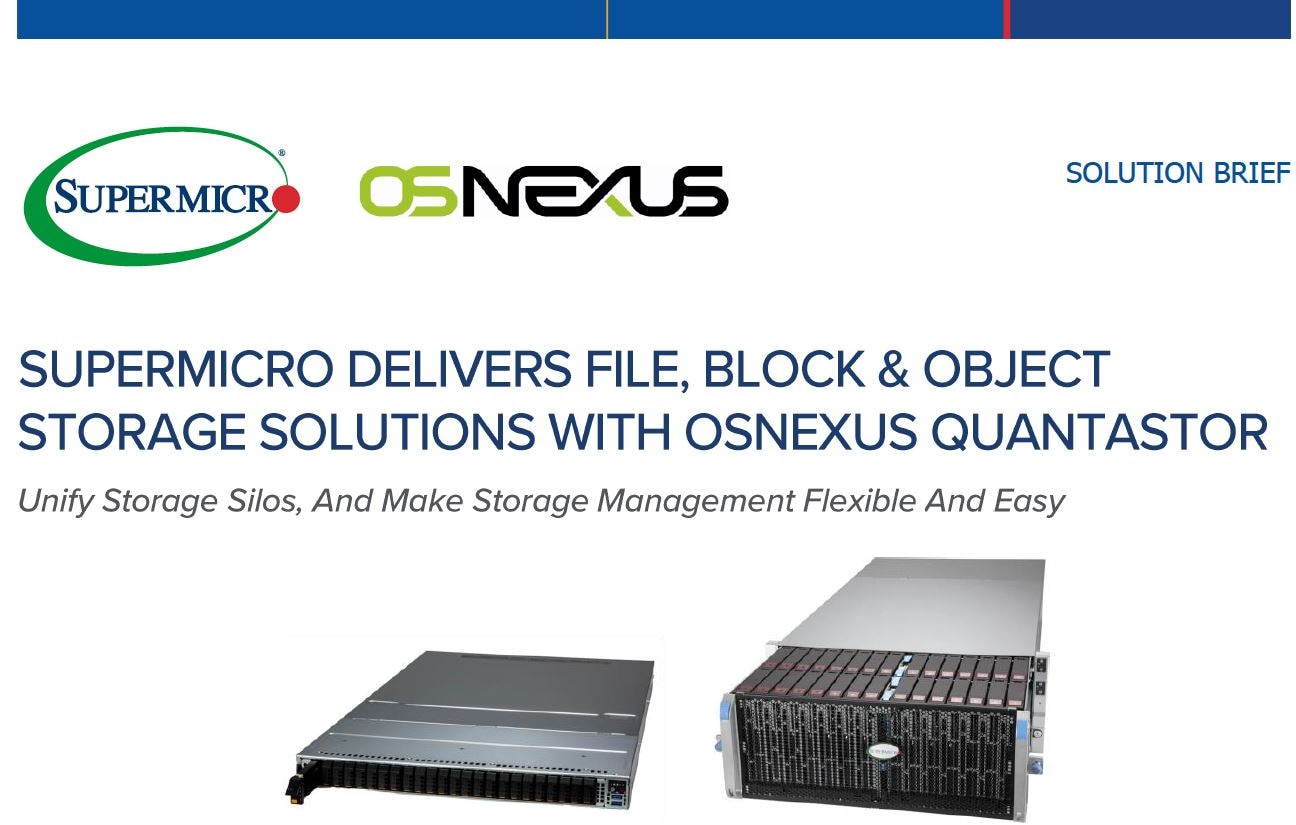

Supermicro Delivers File, Block & Object Storage Solutions with OSNEXUS Quantastor
