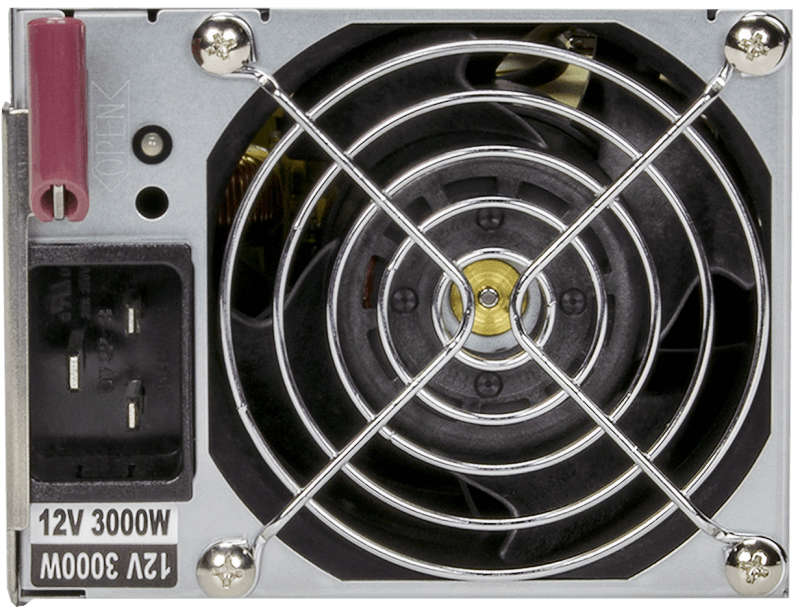

  • PWS-3K01A-BR

    Power Supply

Maximum Output Power
  • 2880W/3000W
Type
  • Redundant Module (N+N, N+1)
+12V
  • 240 (2880W)
  • 250A (3000W)
12Vsb
  • 3A
PFC
  • Yes
Peak Efficiency
  • 96%
Input AC Range
  • 200-207V (2880W)
  • 207.1-240V (3000W)
Operating Conditions
  • Temp: 0 to 60°C
  • Humidity: 20 to 90% RH
Fan Type
  • 80x80mm counter rotating fan
Certification80PLUS Titanium95%+


  80 PLUS
  Titanium Certified

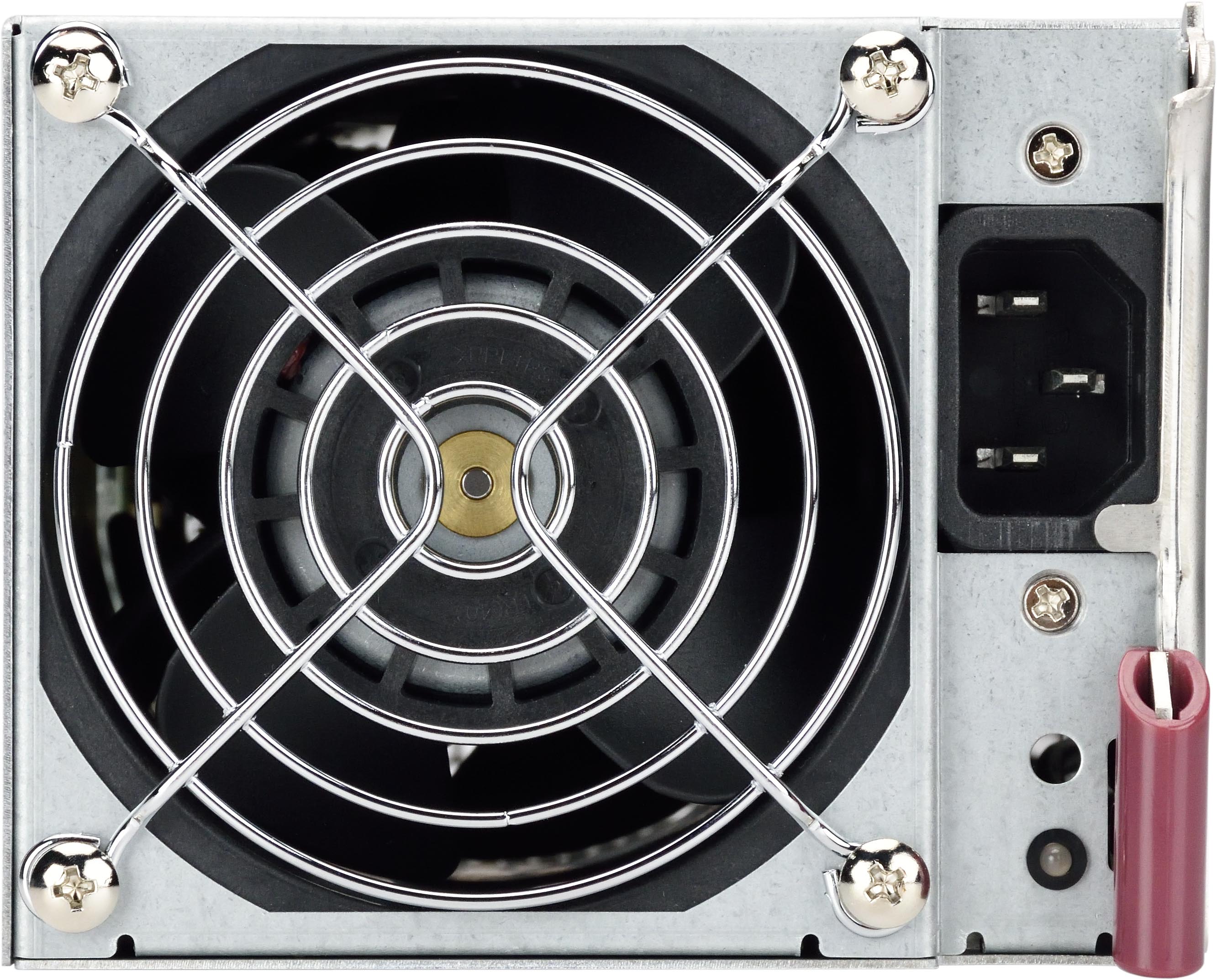

  • PWS-2K21A-BR

    (Power Supply) & PWS-DF006-2F (Fan)

Maximum Output Power
  • 2200W
Type
  • Redundant Module (N+1)
+12V
  • 183.33A (2200W)
  • 174.17A (2090W)
  • 165A (1980W)
  • 150A (1800W)
  • 100A (1200W)
12Vsb
  • 2A
PFC
  • Yes
Peak Efficiency
  • 96%
Input AC Range
  • 200-220V (2090W for North America - UL & cUL)
  • 220-240V (2200W for North America - UL & cUL)
  • 100-127V (1200W for the Rest of the World)
  • 200-220V (1800W for the Rest of the World)
  • 220-230V (1980W for the Rest of the World)
  • 230-240V (2090W for the Rest of the World)
Operating Conditions
  • Temp: 0 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 80x80mm counter rotating fan
Certification80PLUS Titanium95%+
  80 PLUS
  Titanium Certified

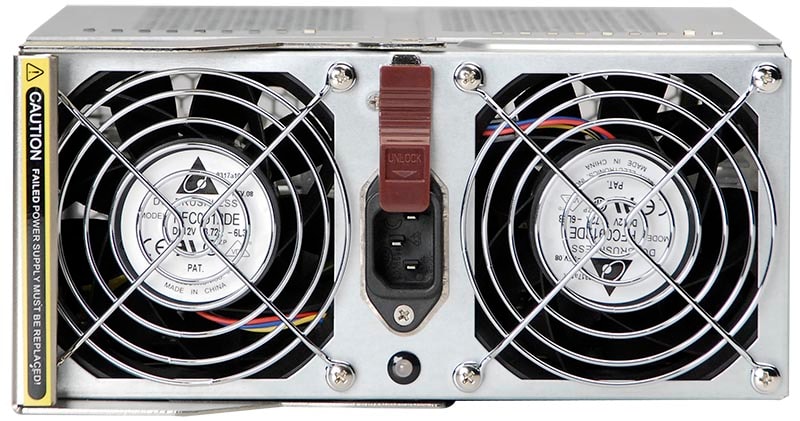

  • PWS-1K62-BR

    Power Supply

For 7U SuperBlade only
Output
  • 1620W / 1200W *
Type
  • Redundant Module (N+1)
+12V
  • 132A (200~240VAC input)
  • 100A (100~140VAC input)
5VSB
  • 16A
PFC
  • Yes
Peak Efficiency
  • 93%
Input AC Range
  • 100~240VAC
Operating Conditions
  • Temp: -5 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 2x 90mm fans
  • PFC0912DE-6L38 (8000 RPM with PWM)

  * 1620W (200~240VAC input) , 1200W (100~140VAC input)

Certain products may not be available in your region
