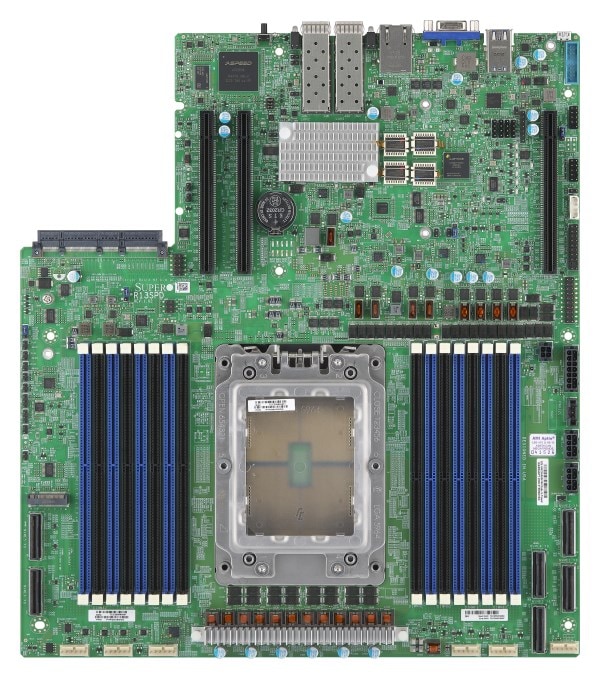

R13SPD

MegaDC

Key Features


  1. AmpereOne™ up to 192-cores, up to 400W TDP, 128 lanes of PCIe Gen 5,5964-Pin Flip Chip Land Grid Array (FCLGA)
  2. Up to 16x ECC RDIMM DDR5-4800 MTs,up to 8TB/socket
  3. 3 x PCI-e 5.0 x16 PCI-e slot
  4. 6 x PCI-e 5.0 x8 Mcio connector
  5. 2x 10Gb or 1x 25Gb SFP28 Broadcom BCM 57414
  6. 1 x AIOM (OCP3.0 Compliant)

  7. M.2 Interface: 1 PCIe 5.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  8. 1 x Aspeed 2600
...
...

Optimized Servers


Specifications Resources Parts List
Specifications
Product SKUs
MBD-R13SPD
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 12" x 13.4" (30.48cm x 34.036cm)
Processor
CPU
  • AmpereOne™
  • Single Socket 5964-Pin FCLGA supported, CPU TDP supports Up to 400W TDP
Core
  • Up to 192 cores / 64MB Cache
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 8TB ECC Registered RDIMM, DDR5-4800MT/s
Memory Type
  • ECC DDR5 RDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • N/A
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with , Or One(1) 25Gb port with the 2nd port being redundant/failover
Input / Output
USB
  • 2 USB 2 port(s) (2 via header)
  • 4 USB 3 port(s) (2 via header; 2 Type A)
Serial Port
  • 1 COM Port(s) (1 Micro USB for COM (Debug))
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 6 PCIe 5.0 x8 MCIO connector
  • 1 x AIOM (OCP3.0 Compliant)
  • 3 x PCI-e 5.0 x16 slot
M.2
  • M.2 Interface: 1 PCIe 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
System Management Software
  • IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
PC Health Monitoring
Other Features
  • CPU thermal trip support
