Blade SBI-612B-5NE34 (Complete System Only)

  Products  SuperBlade   [ SBI-612B-5NE34 ]









Integrated Board
B14SBE-CPU-25G

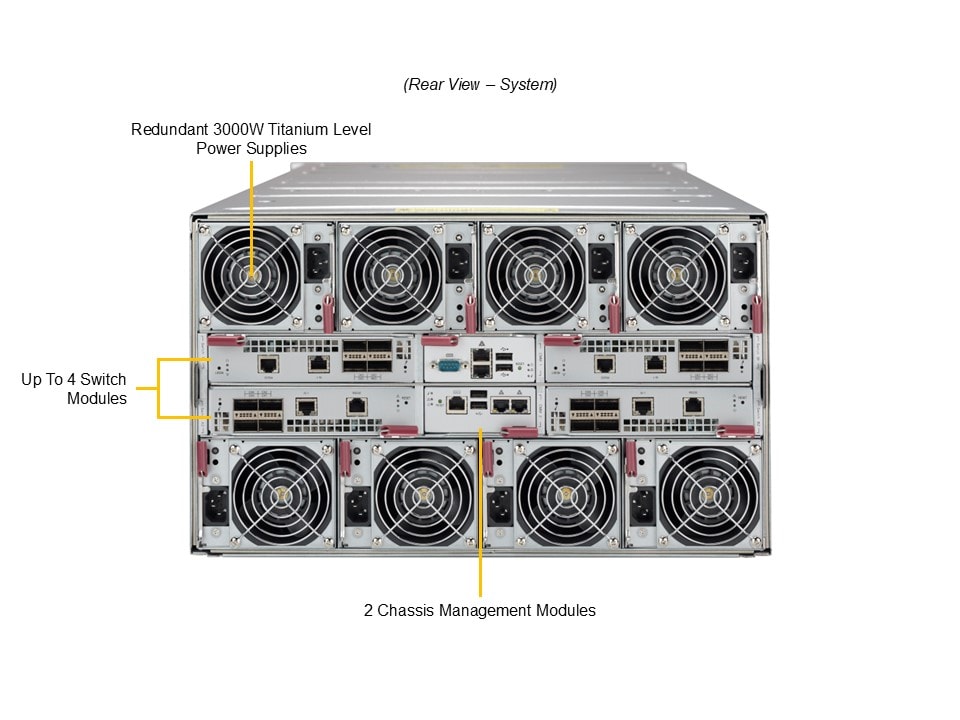

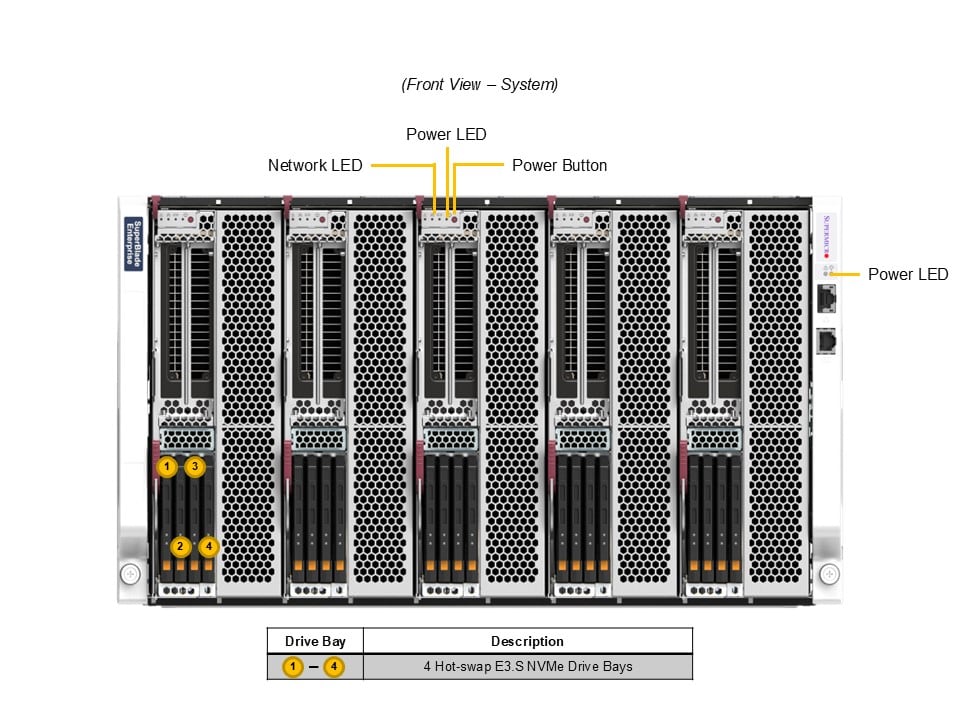

Views: | Angled View | Rear View | Front View |

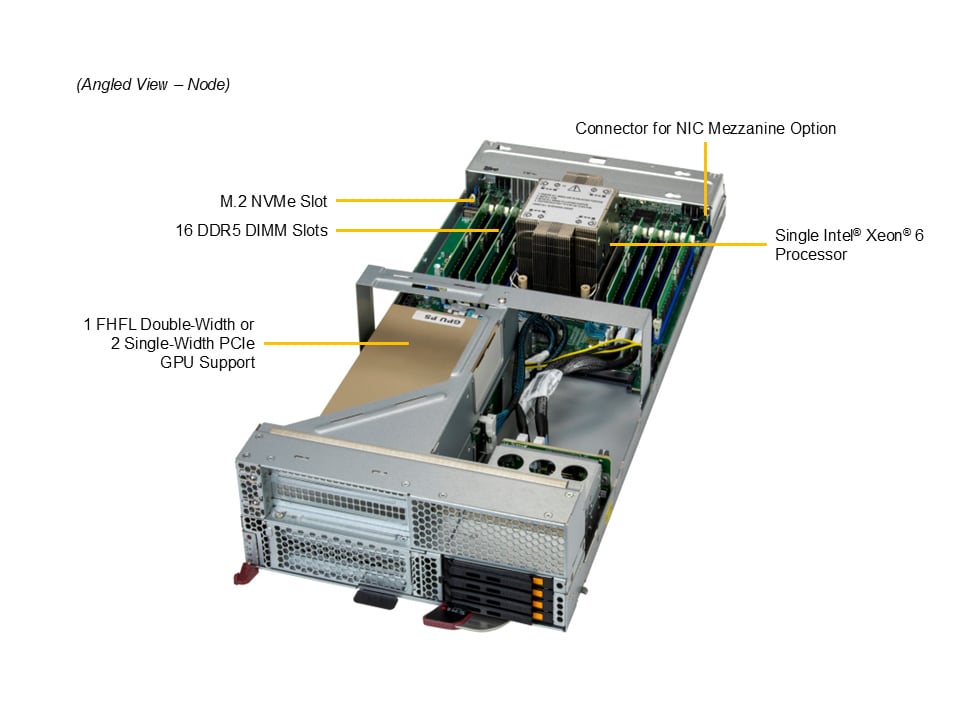

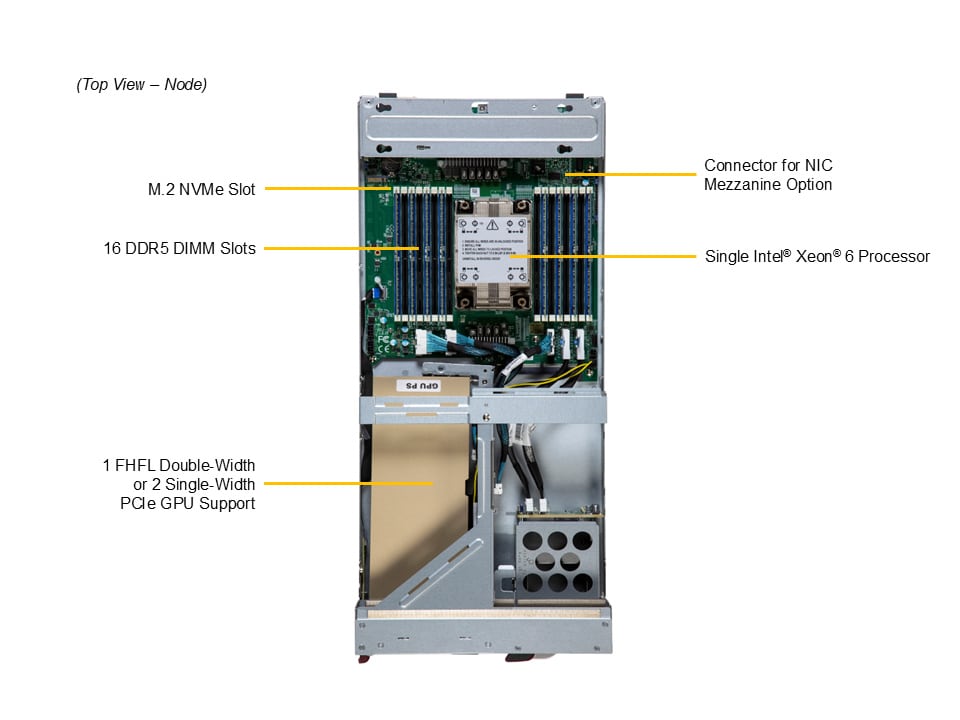

| Angled Node View | Top Node View |





Key Applications
  - Enterprise Applications
  - High Performance Computing
  - Engineering/scientific research
  - Cloud, virtualization, financial, EDA




Key Features

1. 35 servers per 42U rack
2. Single Socket E2 (LGA-4710), Intel® Xeon® 6 processors, up to 350W TDP
3. Supports 16x DDR5 ECC RDIMM/RDIMM 3DS (up to 6400MT/s 1DPC)
4. Support up to 4 E3.S drives per blade
5. Dual-port 25G Ethernet (LOM), additional dual-port 25G Ethernet via mezzanine card



Note: Complete system should include at least
1 CPU, 1 DIMM, & 1 HDD/SSD.

 Drivers & Utilities  BIOS / BMC  Manuals  Tested Memory

 Tested HDD  Tested AOC  Tested NVMe  Tested M.2 List   OS Certification Matrix Compatible GPU List  Quick-References Guide  Download Driver CD

NOTE: Please email to support@supermicro.com for more information about upgrading to latest BIOS/BMC





Product SKUs
SuperBlade Sled
  • SBI-612B-5NE34
Motherboard

Processor (per Node)
CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 double-width or 2 single-width GPU(s)

System Memory (per Node)
Memory Capacity
  • 16 DIMM slots (2DPC)
  • Up to 4TB 6400MT/s ECC DDR5 RDIMM

On-Board Devices (per Node)
Chipset
  • System on Chip
NVMe
  • NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Network Controllers
  • Dual 25G Ethernet
  • 1 Mezzanine expansion slot for 2-port 25G Ethernet

System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
Dimensions
Height
  • 14" (356mm)
Width
  • 1.75" (449mm) x2 (double width)
Depth
  • 32" (813mm)
Weight
  • 13.7 lbs (6.21 kg)
Available Colors
  • Metalic Silver with Black Drive Bays

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • UID
  • Network Activity LED
  • Fault LED

Expansion Slots (per Node)
PCIe
  • 2 PCIe Gen5 x16 slots, support 1 FHFL DW PCIe card or 2 SW PCIe cards

Drive Bays / Storage (per Node)
Hot-swap
  • 4 front hot-swap E3.S 1T NVMe drive bay(s)
M.2
  • 1 M.2 2280

Input / Output
TPM
  • 1 TPM Header

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:

       -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity:

       8% to 80% (non-condensing)
  • Non-operating Relative Humidity:

       8% to 90% (non-condensing)


Optional Parts List
  Part Number Qty Description
TPM security module

(optional, not included)
AOM-TPM-9670V
AOM-TPM-9671V
- TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
VROC AOC-VROCPREMOD
AOC-VROCSTNMOD
- Intel VROC Premium, RAID 0, 1, 5, 10
Intel VROC HW key (RSTe) standard upgrade module
Heatsink / Retention SNK-P0088P - 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
CPU Carrier SKT-1544H-0000-FXC
SKT-1544H-0000-LTS
SKT-1543H-0000-FXC
SKT-1543H-0000-LTS
- Socket E2 E2B Carrier, LGA4710, GNR-SP HCC/LCC& SRF-SP, DG1.0, HF
Socket E2, LGA4710-2, GNR-SP E2B Carrier, PC, Gray HSG, W/SHIM
Socket E2 E2A Carrier, LGA4710, GNR-SP XCC, DG1.0, Cool Gray, HF
Socket E2, LGA4710-2, GNR-SP E2A Carrier, PC, Gray HSG, W/O SHIM
Networking AOC-B25G-6X4D - Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN)
Networking AOC-B25G-6CVL - 25G DUAL PORT MEZZANINE CARD,Intel Columbiaville, E810-XXVAM2
Software SFT-DCMS-Single - DataCenter Management Package (per node license)
