SuperChassis 216BE1C4-R1K23LPBSuperChassis 216BE1C4-R1K23LPB

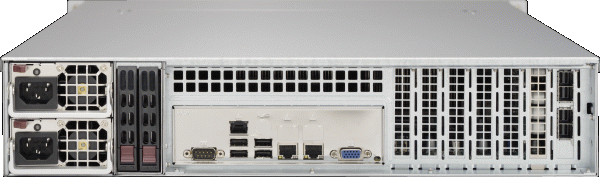

Key Features


  1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  2. 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay
  3. 24-port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
  4. 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
  5. 7 low-profile expansion slot(s)
  6. 3 x 8cm high-performance PWM fan(s)
    Optional 5 x 6cm 4pin high performance fan(s)
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 216BE1C4-R1K23LPB
Form Factor
  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 24.8" (630 mm)
Gross Weight
  • 53 lbs (24.04 kg)
Packaging (W x H x L)
  • 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm)
Available Color
  • Black
Expansion Slots
  • 7x Low-profile expansion slot(s)
Drive Bays
  • 24x 2.5" hot-swap SAS/SATA drive bay
  • Optional 2x 2.5" hot-swap drive bay
Backplane
  • 24-Port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 3x 8cm high-performance PWM fan(s)
  • Optional 5x 6cm 4pin high performance fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1200W with Input 200 - 240Vac
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 100A / Min: 0A (200Vdc - 240Vdc)
  • Max: 100A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT216-2824
  • O/P: 12V/100
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
