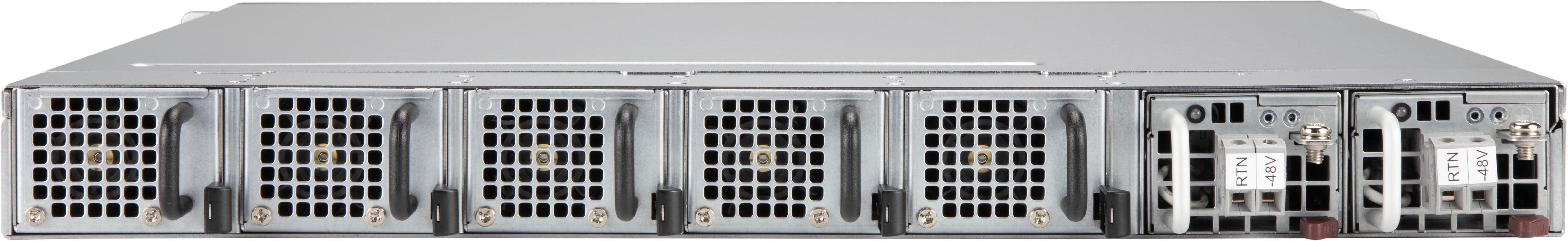

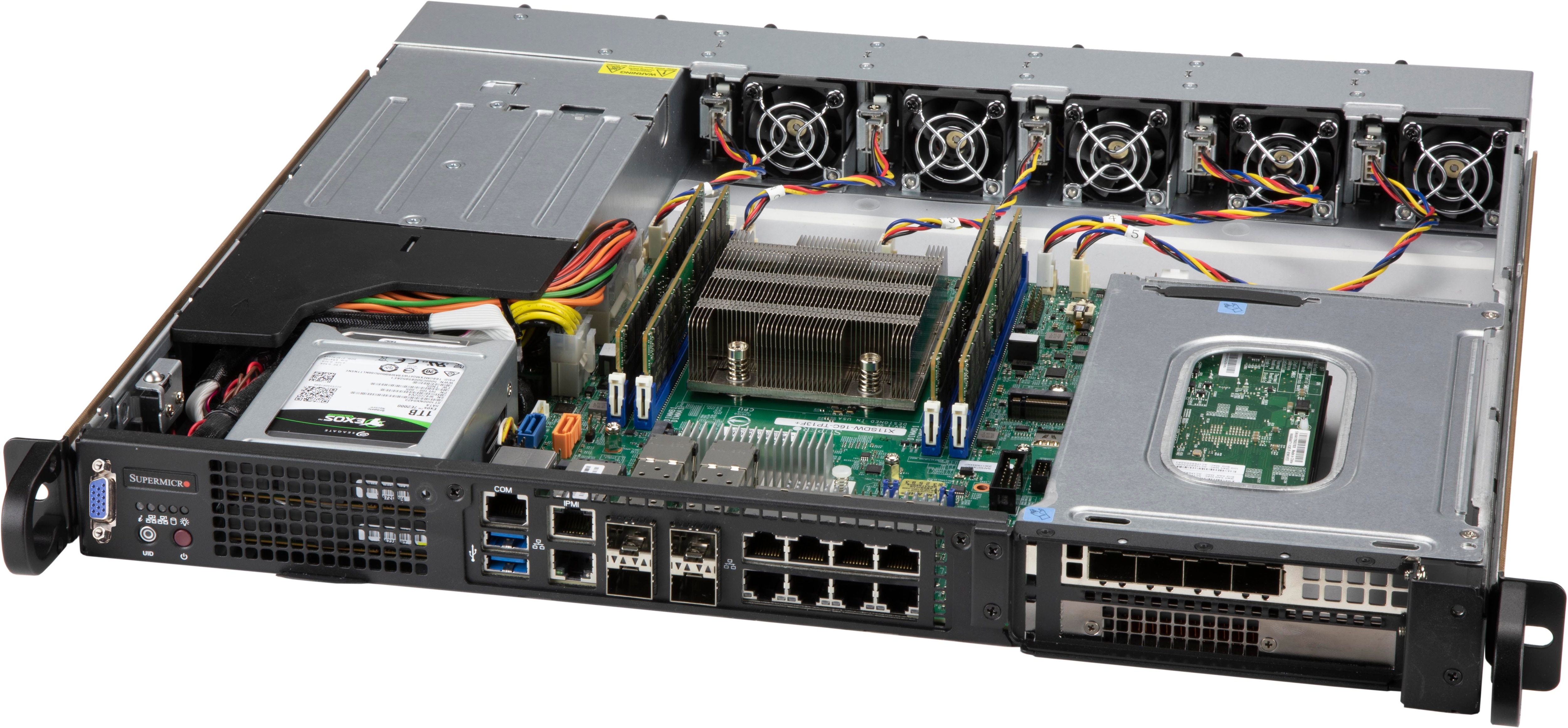

SuperChassis 515M-R601SuperChassis 515M-R601

Key Features


  1. Front I/O short depth resource optimized chassis
  2. Support Proprietary WIO MB size up to 8"x10"
  3. 600W Redundant DC power supplies Platinum Level Certified
  4. 2x 2.5" Internal Drive Bays
  5. Up to 2x Full-height AOC expansion slot
  6. Up to 5x 40x56mm high-efficiency fans, hot-swappable
  7. Support Service Tag for system information
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 515M-R601
Form Factor
  • Support Proprietary WIO MB size up to 8"x10"
Processor Support
  • Single Intel® and AMD processors
Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 15.7" (399 mm)
Gross Weight
  • 18 lbs (8.16 kg)
Packaging (W x H x L)
  • 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
Available Color
  • Black
Expansion Slots
  • Up to 2x Full-height expansion slot(s)
Drive Bays
  • Up to 2x 2.5" fixed drive bay with bracket
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 5x 40x56mm counter-rotation PWM fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 600W Redundant short depth DC48V input redundant power supply
Power Efficiency
  • 92%
Total Output Power and Input
  • 600W with Input -44 - -65Vdc
Dimensions (L x W x H)
  • 220 x 54.5 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 50A / Min: 0A (-44Vdc - -65Vdc)
+5Vsb
  • Max: 3A / Min: 0A
Power Distributor
  • PDB-PT515M-2424
  • O/P: 12V/65
  • +5V Max: 17A
  • +3.3V Max: 13A
  • -12V Max: 0A
Certification
  • Typical 90%+
Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Resources
Motherboard (for CSE-515M-R601)
Motherboard Name
X12SPW-TF-001X11SPW-TFX11SDW-4C-TP13F+X11SDW-16C-TP13F+X11SDW-14CN-TP13F+
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis Manual
Components
