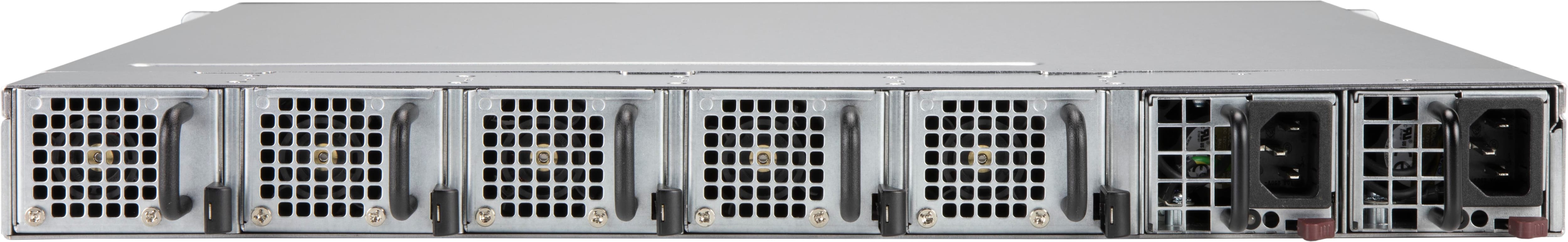

SuperChassis 515M-R804SuperChassis 515M-R804

Key Features


  1. Front I/O short depth resource optimized chassis
  2. Support Proprietary WIO MB size up to 8"x10"
  3. 800W Redundant AC power supplies Platinum Level Certified
  4. 2x 2.5" Internal Drive Bays
  5. Up to 2x Full-height AOC expansion slot
  6. Up to 5x 40x56mm high-efficiency fans, hot-swappable
  7. Support Service Tag for system information
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 515M-R804
Form Factor
  • Support Proprietary WIO MB size up to 8"x10"
Processor Support
  • Single Intel® and AMD processors
Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 15.7" (399 mm)
Gross Weight
  • 18 lbs (8.16 kg)
Packaging (W x H x L)
  • 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
Available Color
  • Black
Expansion Slots
  • Up to 2x Full-height, Half-length expansion slot(s)
Drive Bays
  • Up to 2x 2.5" fixed drive bay with bracket
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 3x 40x56mm counter-rotation PWM fan(s), hot-swappable
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
800W 1U redundant power supply
Power Efficiency
  • 94%
Total Output Power and Input
  • 800W with Input 230 - 240Vdc
  • 800W with Input 200 - 240Vac
  • 750W with Input 100 - 127Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 54.5 x 40.25 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 62.5A / Min: 0.5A (100Vac - 127Vac)
  • Max: 66.6A / Min: 0.5A (230Vdc - 240Vdc)
  • Max: 66.6A / Min: 0.5A (200Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT515M-2424
  • O/P: 12V/65
  • +5V Max: 17A
  • +3.3V Max: 13A
  • -12V Max: 0A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • UL/CB
Resources
Motherboard (for CSE-515M-R804)
Motherboard Name
X12SPW-TF-001X12SPW-TFX11SPW-TFX11SDW-4C-TP13F+X11SDW-16C-TP13F+X11SDW-14CNT-TP13FX11SDW-14CN-TP13F+
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis Manual
