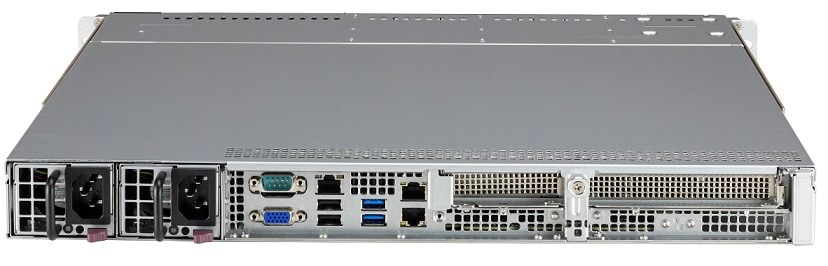

SuperChassis 813MF2TQC-R407RCBSuperChassis 813MF2TQC-R407RCB

Key Features


  1. 1U chassis, support motherboard sizes: Proprietary Micro ATX 9.6" x 9.6"
  2. 4 x 3.5" hot-swap SAS3/SATA drive bay
    SAS or enterprise SATA HDD only recommended
  3. Support up to 4x3.5"SAS3/SATA Storage Devices
  4. 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
  5. 1 full height expansion slot(s) , 1 low-profile expansion slot(s)
  6. 4 x 40x28mm PWM fan(s)
    Optional 2 x fans for AOC cooling
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 813MF2TQC-R407RCB
Form Factor
  • 1U chassis, support motherboard sizes: Proprietary Micro ATX 9.6" x 9.6"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 19.98" (507 mm)
Gross Weight
  • 29 lbs (13.15 kg)
Net Weight
  • 25.35 lbs (11.5 kg)
Packaging (W x H x L)
  • 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)
Available Color
  • Black
Expansion Slots
  • 1x Full-height expansion slot(s)
  • 1x Low-profile expansion slot(s)
Drive Bays
  • 4x 3.5" hot-swap SAS3/SATA drive bay
  • SAS or enterprise SATA HDD only recommended
Backplane
  • 4-Port 1U 12Gbps Backplane Support 4x3.5" SAS3/SATA HDD
Peripheral Drives
  • Optional 1x slim DVD-ROM drive bay
  • Optional 1x USB + COM port tray
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • 2 Network Activity LEDs
Systems Cooling
Fans
  • Optional 2x fans for AOC cooling
  • 4x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
Power Efficiency
  • 94%
Total Output Power and Input
  • 400W with Input 200 - 240Vdc
  • 400W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 54.5 x 40.25 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 33A / Min: 0A (100Vac - 240Vac)
+5Vsb
  • Max: 3A / Min: 0A
Power Distributor
  • PDB-PT813M-S2424
  • O/P: 12V/62
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Resources
Motherboard (for CSE-813MF2TQC-R407RCB)
Motherboard Name
X12STH-FX13SCH-F
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis Manual
