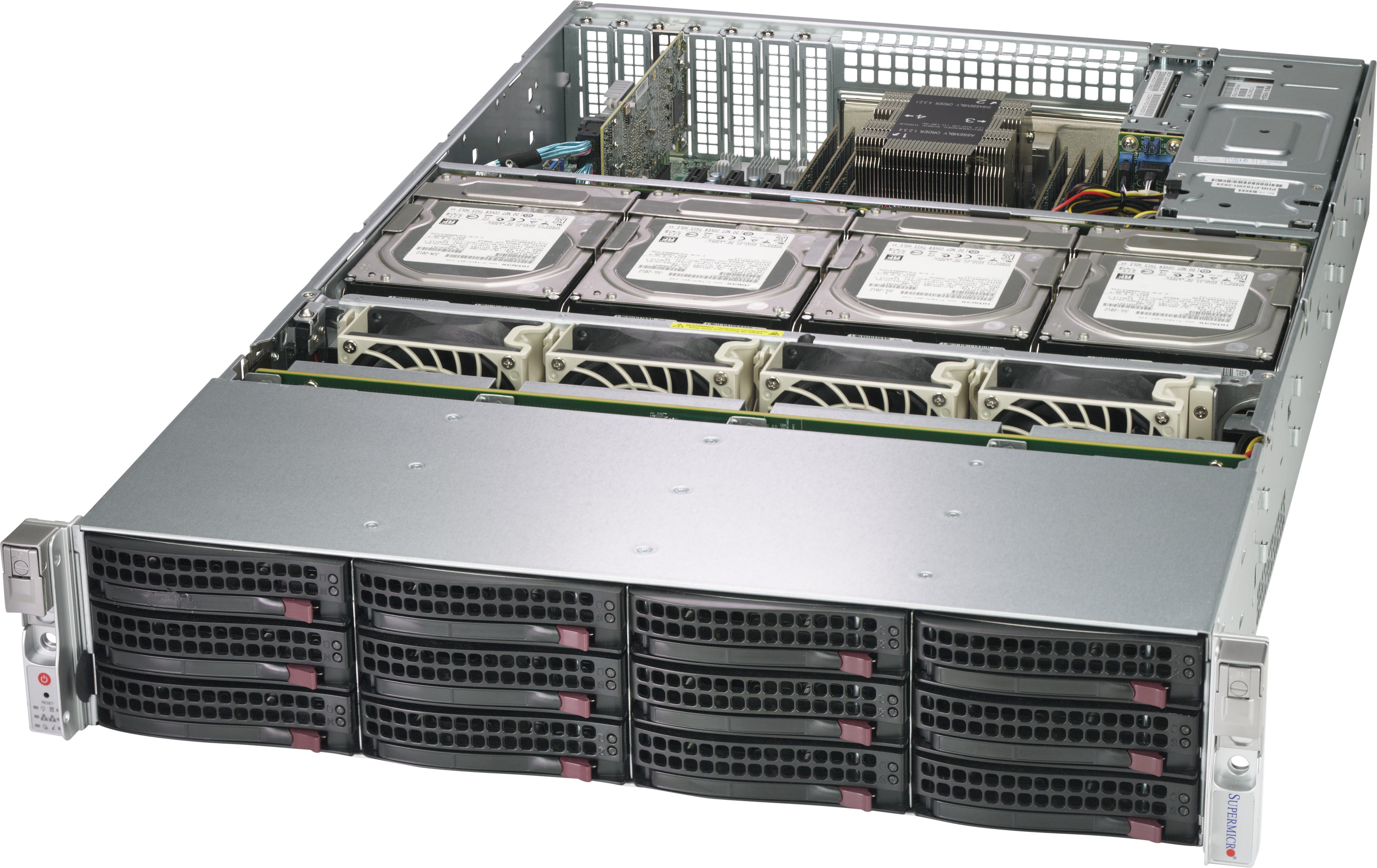

SuperChassis 829HAC12-R1K62LPBSuperChassis 829HAC12-R1K62LPB

Key Features


  1. 12x NVMe/ SAS3 Hybrid Drive Bays Provide Ultimate Flexibility
  2. Additional 4x 3.5" Hot-swap SAS3/ SATA3 HDD Bays with Rear 2x 2.5” SAS3/SATA3 HDD option
  3. Enhanced cooling design w/ 4x 8cm 13.5K RPM high-performance fans
  4. Redundant 1600W Titanium Level (96%+) high-efficiency supplies
  5. Optional cable management arm for hot-swap access
  6. 7x Low-profile, Half-length I/O expansion slots

Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 829HAC12-R1K62LPB
Form Factor
  • 2U chassis supports for maximum motherboard sizes - 13.68" x 13.4", E-ATX 12" x 13", ATX 12" x 10" motherboards
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.75" (705 mm)
Gross Weight
  • 62 lbs (28.12 kg)
Net Weight
  • 41.5 lbs (18.82 kg)
Packaging (W x H x L)
  • 25.9" (658 mm) x 10.8" (274 mm) x 39.3" (998 mm)
Available Color
  • Black
Expansion Slots
  • 7x Low-profile expansion slot(s)
Drive Bays
  • Optional 2x 2.5" hot-swap SAS3/SATA drive bay
  • 4x 3.5" hot-swap SAS3/SATA drive bay
  • 12x 3.5" hot-swap SAS3/SATA/NVMe drive bay hybrid
Backplane
  • 12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
  • 4-Port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs
  • HDD Fail LED
Systems Cooling
Fans
  • 4x 80x38mm hot-swap cooling fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 1600W Redundant Titanium AC Power Supply with PMbus 73.5x203x40mm
Power Distributor
  • PDB-PT829H-2824
  • O/P: 12V/120A
  • +5V Max: 45A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • N/A
Resources
Motherboard (for CSE-829HAC12-R1K62LPB)
Motherboard Name
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
