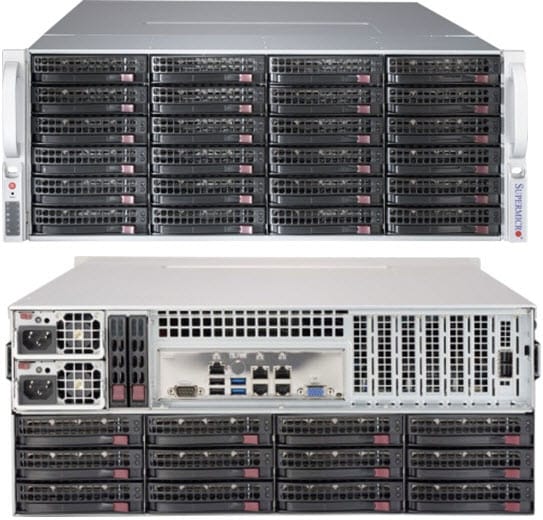

SuperChassis 847BE1C12-R1K68LPB4

Key Features


  1. 36x (24 front + 12 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
  2. Optional rear 2.5" removable HDD
  3. Redundant 1600W Titanium Level (1+1) power supplies with PMBus
  4. 7x low-profile expansion slots; 7x 8cm (middle) hot-swap 13.5Krpm cooling fans and adjustable air shroud
  5. E1C12: Single SAS3 (12Gbps) expander plus 12 x NVMe backplane(Front:8/ Rear:4)
  6. Mini SAS HD (SFF 8643) connectivity on backplane
  7. Palletized packaging for easy shipping and handling

Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 847BE1C12-R1K68LPB4
Form Factor
  • 4U chassis support for motherboard size 12" x 10", 13.68" x 13", 9.6" x 9.6"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.5" (699 mm)
Gross Weight
  • 118 lbs (53.52 kg)
Net Weight
  • 86 lbs (39 kg)
Packaging (W x H x L)
  • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color
  • Black
Expansion Slots
  • 7x Low-profile expansion slot(s)
Drive Bays
  • Optional 2x 2.5" hot-swap drive bay
  • 36x 3.5" hot-swap SAS/SATA drive bay with SES3
Backplane
  • 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
  • 24-Port 4U Expander Backplane Support up-to 16x 3.5" SAS3/SATA3 HDD/SSD and 8 x SAS3/SATA3/NVMe Storage Devices
Peripheral Drives
  • Optional 4x 2.5" internal fixed drive bay
  • Optional 2x 3.5" internal fixed drive bay
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 7x 80mm high-performance fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 800/1600W Single Output Power Supply Titanium Level
Power Efficiency
  • 96%
Total Output Power and Input
  • 1600W with Input 180 - 240Vac
  • 800W with Input 100 - 140Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A / Min: 0A (100Vac - 140Vac)
  • Max: 133A / Min: 0A (180Vac - 240Vac)
+5Vsb
  • Max: 1A / Min: 0A
Power Distributor
  • PDB-PT847-8824
  • O/P: 12V/135
  • +5V Max: 100A
  • +3.3V Max: 30A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CUL
