SuperChassis GS50-000RSuperChassis GS50-000R

Key Features

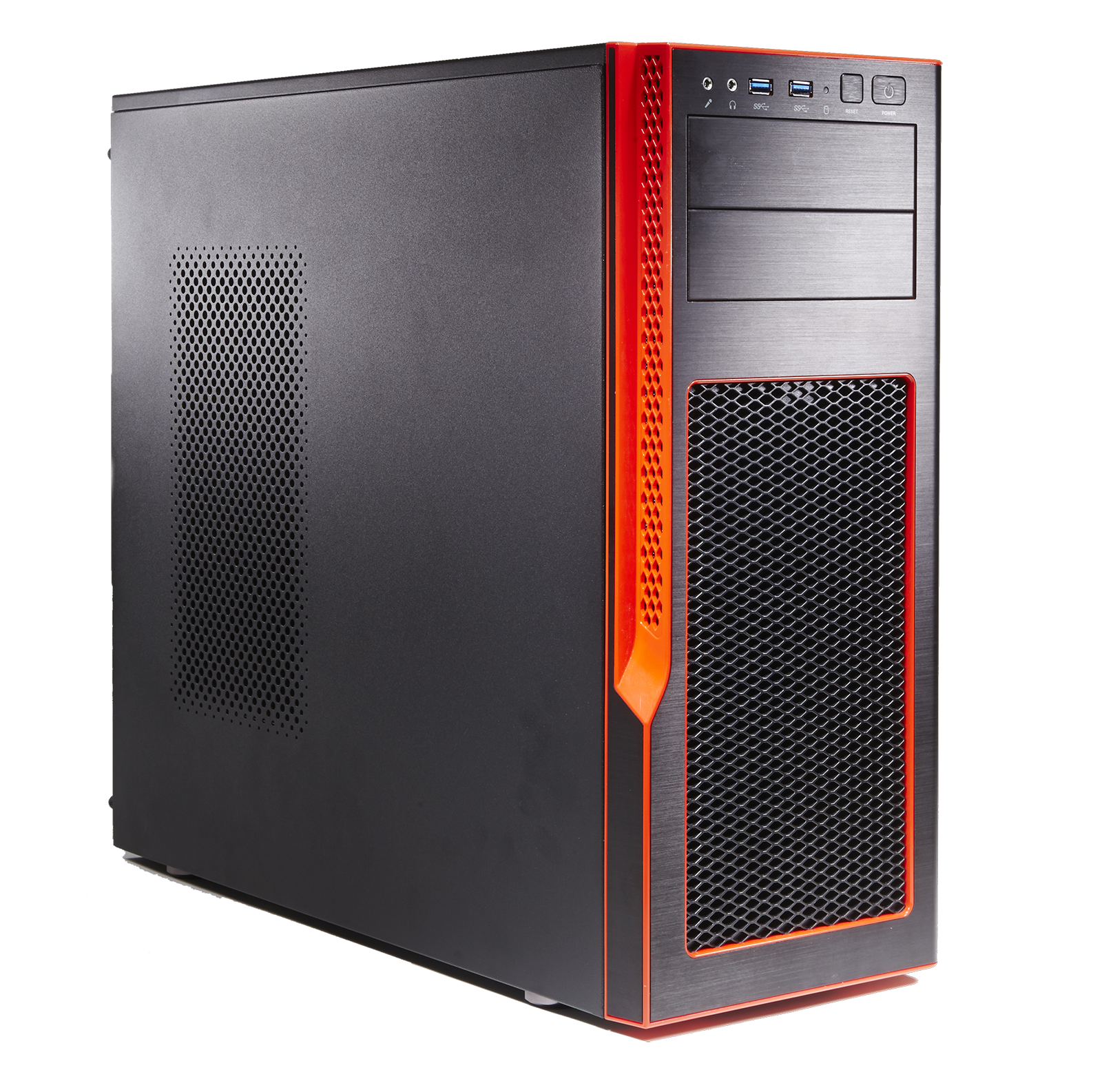

  1. Black anodized brushed aluminum fascia front panel with two USB 3.0 ports

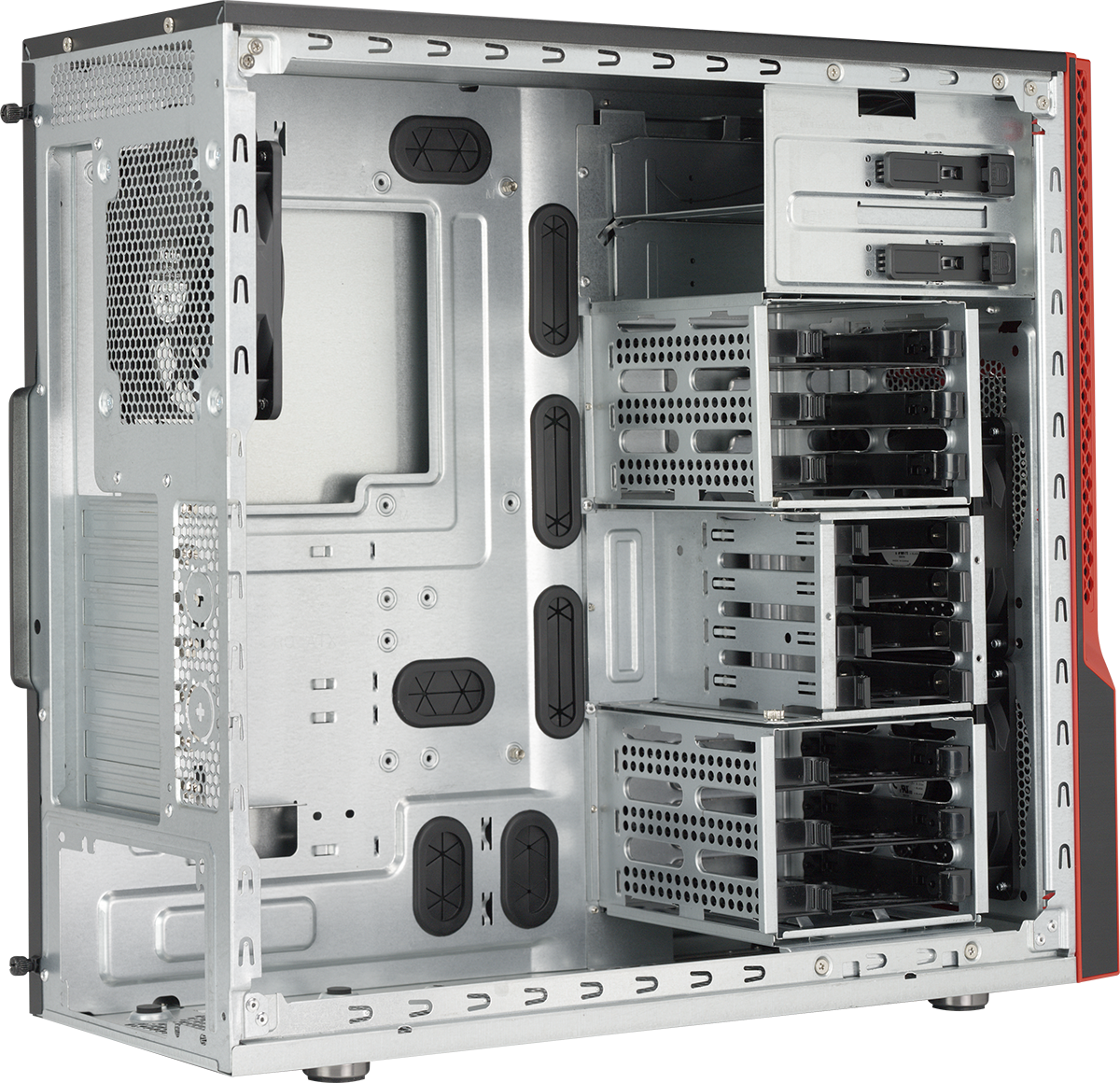

  2. Removable 3.5” and 2.5” HDD/SSD cages with tool-less trays for up to 10 drives
  3. Tool-less 5.25” device installation with trays to support 3.5” and 2.5” drives
  4. Cable management holes with rubber grommets for clean builds
  5. Removable magnetic dust filter
  6. One click front grille access
  7. Large motherboard tray cut-out for CPU cooler back-plates
  8. 3x 120mm PWM fans included

Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis GS50-000R
Form Factor
  • Mid-Tower chassis for motherboard support size ATX 12”x10” & Micro-ATX 9.6”x9.6”
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 18.1" (460 mm)
Width
  • 7.9" (200 mm)
Depth
  • 19.4" (493 mm)
Gross Weight
  • 24.2 lbs (10.98 kg)
Net Weight
  • 18.2 lbs (8.26 kg)
Packaging (W x H x L)
  • 14.2" (361 mm) x 24.9" (632 mm) x 24" (610 mm)
Available Color
  • Black / Red
Expansion Slots
  • 7x Full-height, Full-length expansion slot(s)
Drive Bays
  • 4x 2.5" fixed drive bay
  • 6x 3.5" fixed drive bay
Peripheral Drives
  • 2x standard 5.25" drive bay
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
Systems Cooling
Fans
  • 1x 12cm rear exhaust fan(s)
  • 2x 12cm front cooling fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Motherboard (for CSE-GS50-000R)
Motherboard Name
C7Z170-SQC7Z170-OCEC7Z170-MC7H170-M
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Components

SuperChassis GS50-000R
