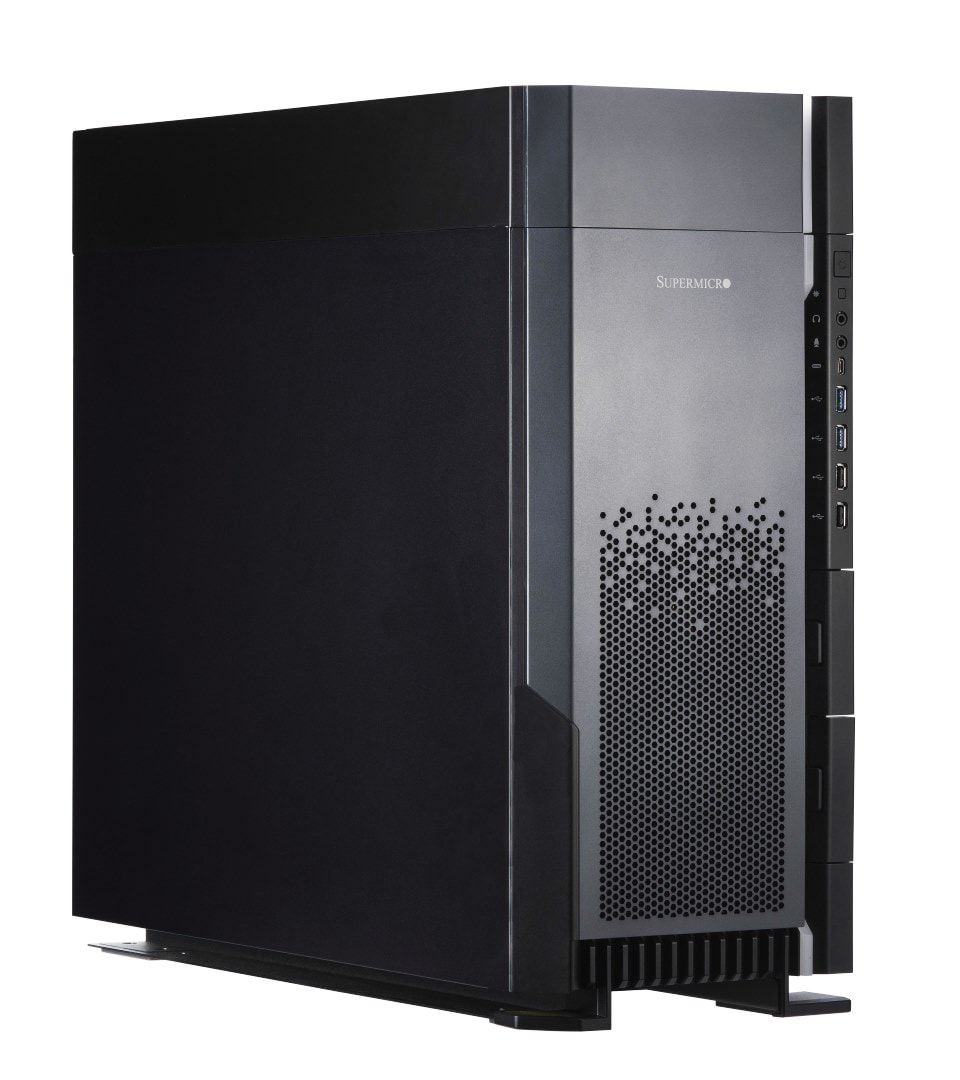

SuperChassis GS7A-2000B

Key Features


  1. 5U / Full Tower Chassis supports motherboard sizes – E-ATX/ATX/Micro ATX
  2. 8x Full-Height, Full-Length Expansion Slots
  3. Front I/O Ports: 2xUSB2.0 2x USB 3.0 1xType C Line out jack & Microphone jack
  4. PS2 2000W Multi-output PLATINUM power supply
  5. Kensington Lock Security
  6. 2x 5.25" Tool-less device installation
  7. Internal removable 4x3.5”HDD tool-less trays and external 2x2.5”HDD tool-less trays
  8. Front bezel and chassis bottom side with dust filter
  9. LED lighting bar
  10. 2x120mm PWM fans in front side 1x120mm PWM fan in rear side
  11. Optional side cover with glass
  12. Optional CPU liquid cooling module
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis GS7A-2000B
Form Factor
  • 5U (Full Tower) chassis support for motherboard size ATX 12" x 10", E. ATX 12" x 13"
Processor Support
  • Dual and Single Intel® Xeon® and AMD processors
Dimensions
Height
  • 21.06" (535 mm)
Width
  • 8.74" (222 mm)
Depth
  • 22.56" (573 mm)
Gross Weight
  • 39 lbs (17.74 kg)
Net Weight
  • 20 lbs (14.9 kg)
Packaging (W x H x L)
  • 14.6" (372 mm) x 27.8" (708 mm) x 28.5" (724 mm)
Available Color
  • Black
Expansion Slots
  • 8x Full-height, Full-length expansion slot(s)
Drive Bays
  • 4x 3.5" Internal drive bay
  • 2x 2.5" drive bay
Peripheral Drives
  • 2x standard 5.25" drive bay
Front Panel
Button
  • Power On/Off button
  • LED light bar ON/OFF
LED
  • Power status LED
Port
  • 2x Audio Jacks
  • 1x USB 3.0 Gen 1-Type-c
  • 2x USB 3.0 Gen 1-Type-A
  • 2x USB 2.0
Systems Cooling
Fans
  • 2x 12cm front cooling fan(s)
  • 1x 12cm rear exhaust fan(s)
System Monitoring
  • Optional Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
2000W PS2 Multi-output Power Supply
Power Efficiency
  • 92%
Dimensions (L x W x H)
  • 200 x 150 x 86 mm
Output Type
  • 24pin ATX
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Resources
Motherboard (for CSE-GS7A-2000B)
Motherboard Name
H13SRA-FH13SRA-TFX13SWA-TF
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis Manual
Components

SuperChassis GS7A-2000B

  1. Products
  2. Chassis
  3. 5U (Full Tower)
  4. SCGS7A-2000B

Certain products may not be available in your region
