SuperServer SSG-121E-NES24R (Complete System Only)

1U front-loading all-flash storage server with 24 E1.S NVMe drives and PCIe 5.0

SSG-121E-NES24R Main SSG-121E-NES24R Angle SSG-121E-NES24R Top SSG-121E-NES24R Front SSG-121E-NES24R Rear
Integrated Board: X13DSF-A
Learn more

Key Applications

  • Software-defined Storage
  • In-Memory Computing
  • Data Intensive HPC
  • Private & Hybrid Cloud
  • NVMe Over Fabrics Solution

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory
  3. Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)

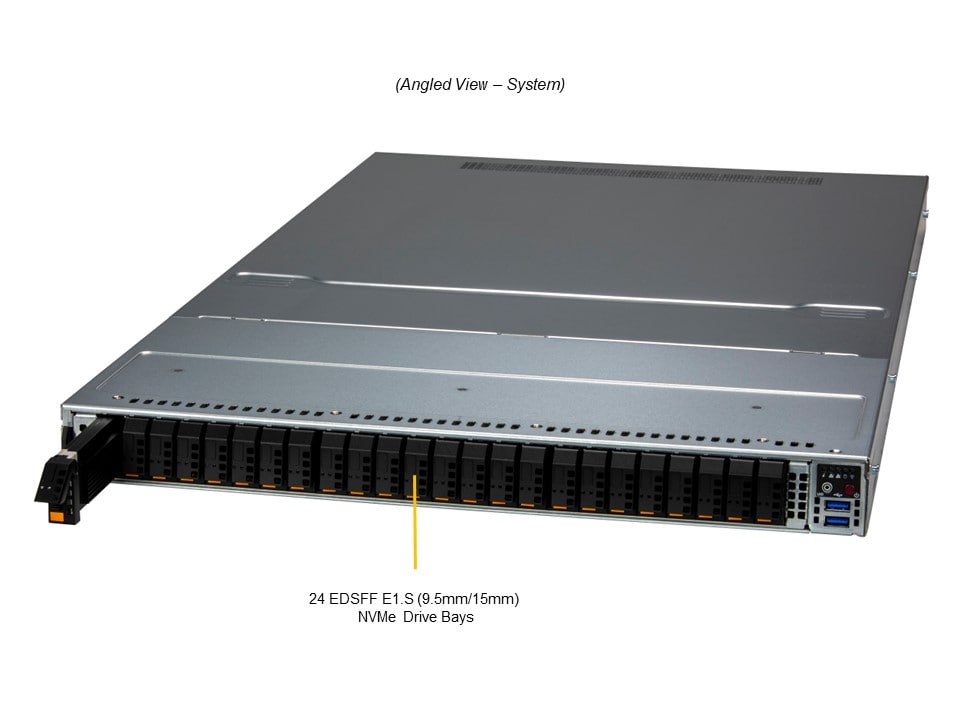

  4. 24x hot-swap E1.S (9.5mm or 15mm) NVMe drive bays
  5. Redundant Titanium 2000W Power Supplies
...
...
SSG-121E-NES24R
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-121E-NES24R
Motherboard
Super X13DSF-A
Processor
CPU
Note
  • Supports 145W - 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 3.0 ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-126ES2-R2K08P
Dimensions and Weight
Height
  • 1.7" (43.6 mm)
Width
  • 17.2" (438.4 mm)
Depth
  • 30.4" (773.25 mm)
Package
  • 7.87" (H) x 23.81" (W) x 40.55" (D)
Weight
  • Gross Weight: 68.74 lbs (31.2 kg)
  • Net Weight: 48 lbs (21.8 kg)
Available Color
  • Silver
Front Panel
LED
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)
Buttons
  • Power On/Off
Expansion Slots

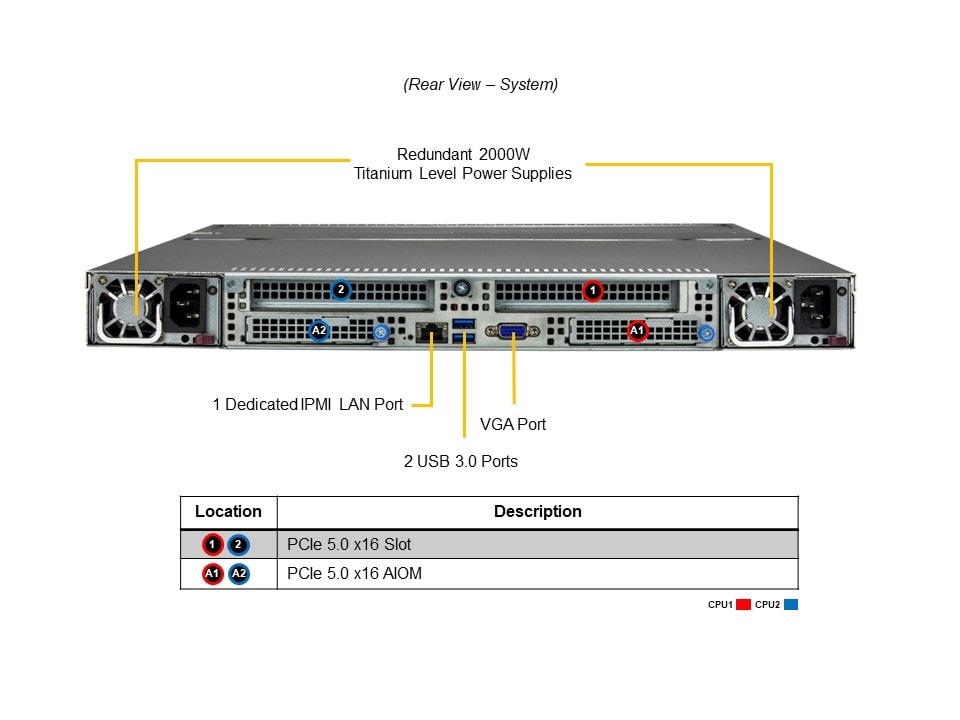

PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHFL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 8 Heavy Duty 4cm Fan(s)
Power Supply
2x 2000W
2x 2000W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Max: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
Environmental / Recycling
Recycle
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Network Cards AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
More - AOC Compatibility Matrix (Select Storage & X12)
Power Cord CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V

Storage SuperServer SSG-121E-NES24R (Complete System Only )
