SuperStorage 5029P-E1CTR12L

  Products  Systems   SuperStorage   [ 5029P-E1CTR12L ]




Integrated Board
Super X11SPH-nCTF

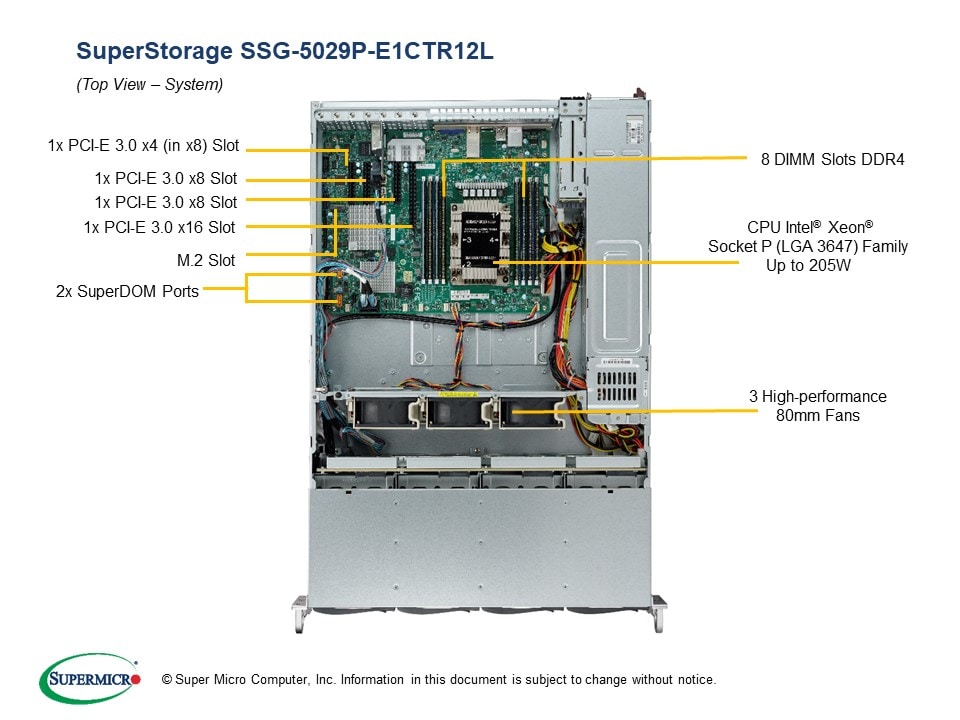

Views: | Angled View | Top View |

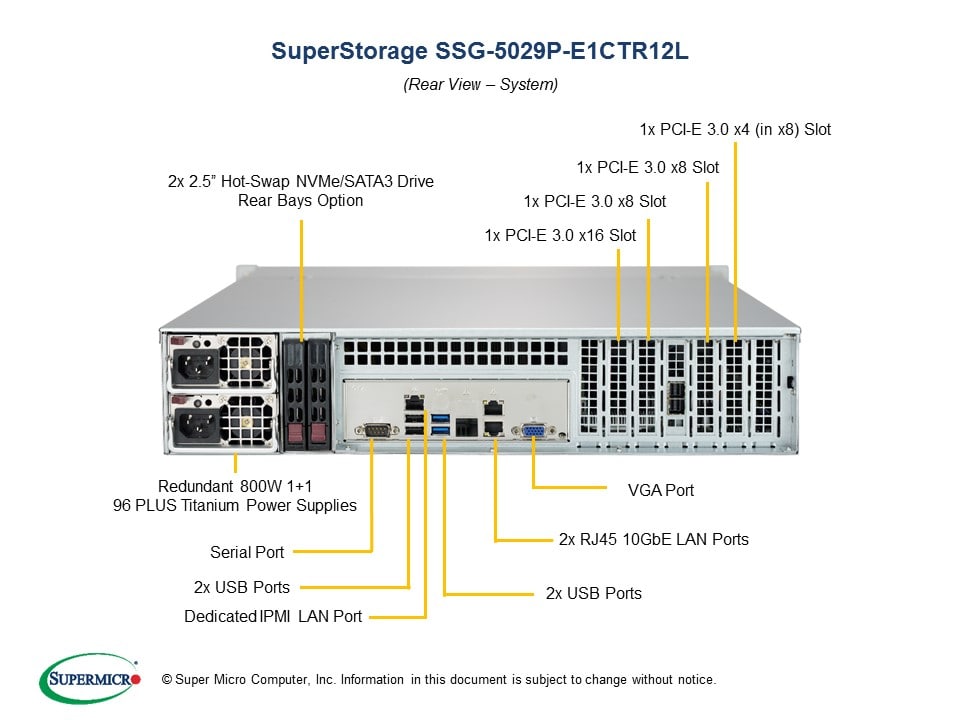

| Front View | Rear View |

 Key Applications
- Application and data serving
- Connectivity/Storage Compute Nodes
- High Availability Storage Appliance Platform

Key Features
1. Single Socket P (LGA 3647) supports
    2nd Gen Intel® Xeon® Scalable
    processor (Cascade Lake/Skylake)‡
2. 8 DIMMs; up to 2TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8,
    1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
4. 2x 10GBase-T with Intel® X557
5. 12 Hot-swap 3.5" SAS/SATA drive bays
    with SES3; 2 Hot-swap 2.5" NVMe/SATA
    (rear, optional)
6. SAS3 via Broadcom 3008 controller
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 3 High-performance 80mm PWM fans
9. 800W Redundant Power Supplies
    Titanium Level (96%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SSG-5029P-E1CTR12L
  • SuperStorage 5029P-E1CTR12L (Black)

Motherboard

Super X11SPH-nCTF

Processor
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
  • Support CPU TDP 70-205W*
Cores
  • Up to 28 Cores
Note * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C622 chipset
SATA
  • SATA3 (6Gbps) via C622 controller
  • RAID 0, 1, 5, 10 support
SAS
  • SAS3 (12Gbps) via Broadcom 3008
  • SW RAID 0, 1, 10
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X722 + X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • 8 USB 2.0 ports (2 rear + 6 headers)
VGA
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826BE1C-R802LPB

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.6" (648mm)
Package
  • 11.5" (H) x 26.5" (W) x 34" (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16
  • 1 PCI-E 3.0 x8
  • 1 PCI-E 3.0 x8
  • 1 PCI-E 2.0 x4 (in x8)
M.2
  • 1x M.2 Interface: PCI-E 3.0 x4 and SATA
  • Form Factor: 2280
  • Key: M-Key
  • Double Height Connector

Drive Bays / Storage
Hot-swap
  • 12 Hot-swap 3.5" SAS/SATA drive bays with SES3
Optional
  • 2 Hot-swap 2.5" NVMe/SATA drive bays (rear)

Backplane
SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink

System Cooling
Fans
  • 3 High-performance 80mm PWM fans

Power Supply (76mm Width)
800W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 240Vac
  • 800W: 200 – 240Vdc
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 800W: 100-240Vac / 50-60Hz
  • 800W: 200-240Vdc
+12V
  • Max: 66A / Min: 0A (100-240Vac)
  • Max: 66A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger
Certification Platinum Level Certified95%+
Titanium Level


Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11SPH-nCTF
CSE-826BE1C-R802LPB 		1
1		 Super X11SPH-nCTF Motherboard
2U Chassis
Add-on Card / Module AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH
Backplane BPN-SAS3-826EL1 1 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-SAST-0532 2 MINI SAS HD,12G,INT,50CM,30AWG
Cable 2 CBL-SAST-0568 2 MINI SAS HD,12G,INT,35CM,30AWG
Parts MCP-260-00109-0N 1 Standard I/O Shield for X11SPM-TF with EMI Gasket
Manual MNL-1991-QRG 1 5029P-E1CR12L Quick Reference Guide
Heatsink / Retention SNK-P0068PS 1 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
FAN 1 FAN-0158L4 3 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
Drive Tray(s) MCP-220-00075-0B 12 Black 3.5" HDD tray


Optional Parts List
  Part Number Qty Description
3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
Peripheral Drives MCP-220-82616-0N 1 Rear Window 12G 2x 2.5" HDD Module
Storage Controller card & cable AOC-S3108L-H8iR - Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
CacheVault BTR-TFM8G-LSICVM02 &
BKT-BBU-BRACKET-05		 - CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGN-i2S
AOC-STGF-i2S
AOC-STG-B4S
AOC-STGS-i2T
AOC-S25G-b2S
AOC-S25G-m2S		 -
-
-
-
-
-
-
-		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
NVMe Optional Parts
(Complete System with NVMe Drives)		 MCP-220-82619-0N
CBL-SAST-0819		 1
2		 Rear hot-swap 2.5" x2 NVMe drive kit
OCuLink v1.0 INT PCIe NVMe SSD, 65CM, 34AWG
Front Bezels MCP-210-82601-0B 1 Black front bezels
TPM security module AOM-TPM-9670V
AOM-TPM-9671V		 1
1		 TPM 2.0, vertical form factor
TPM 1.2, vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
