SuperServer SSG-620P-ACR12L

2U front-loading storage server with 12 hot-swap 3.5" hybrid SAS/SATA bays and PCIe 4.0

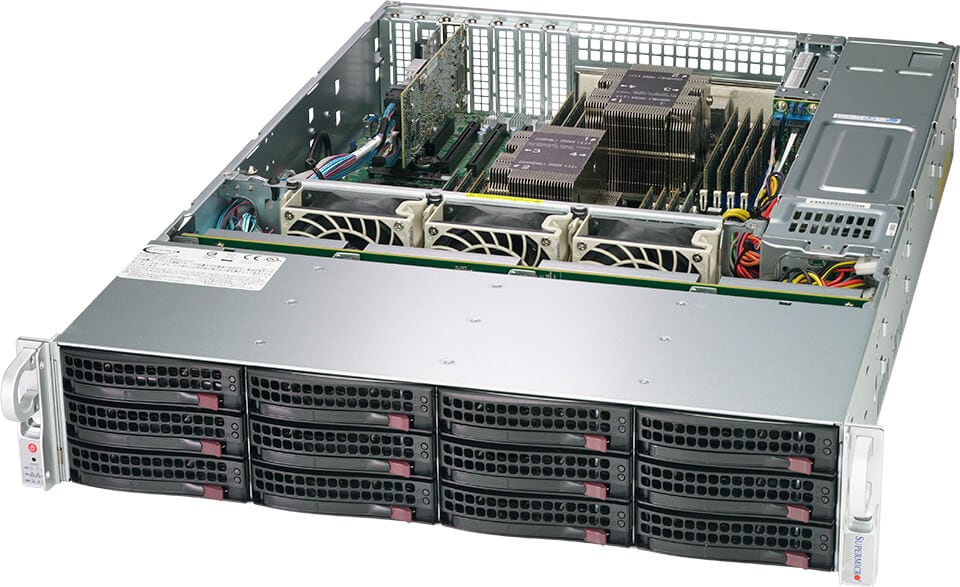

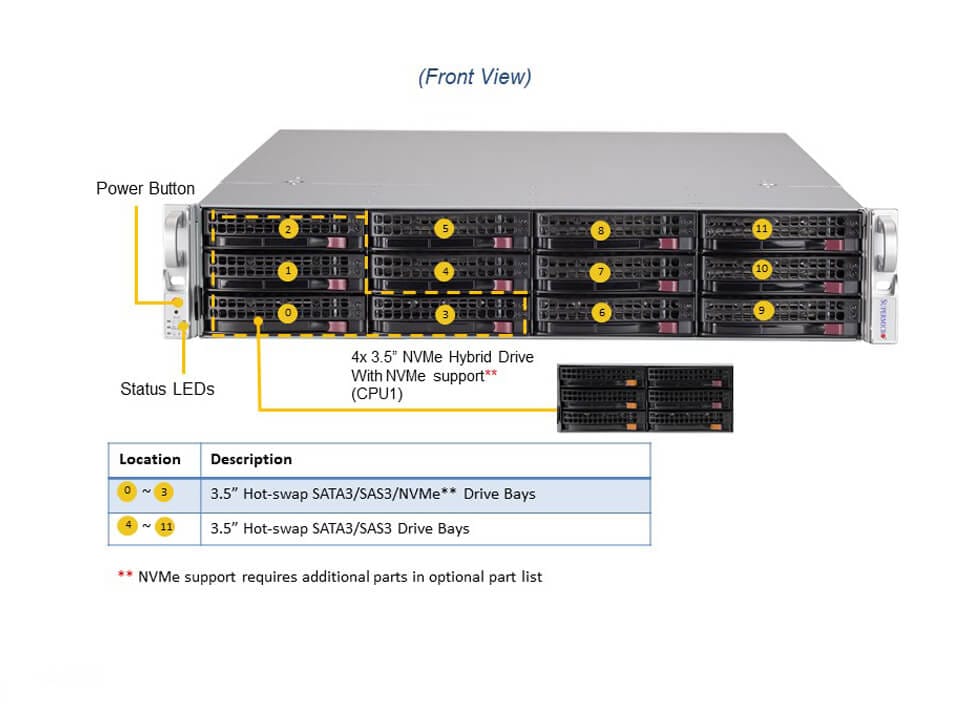

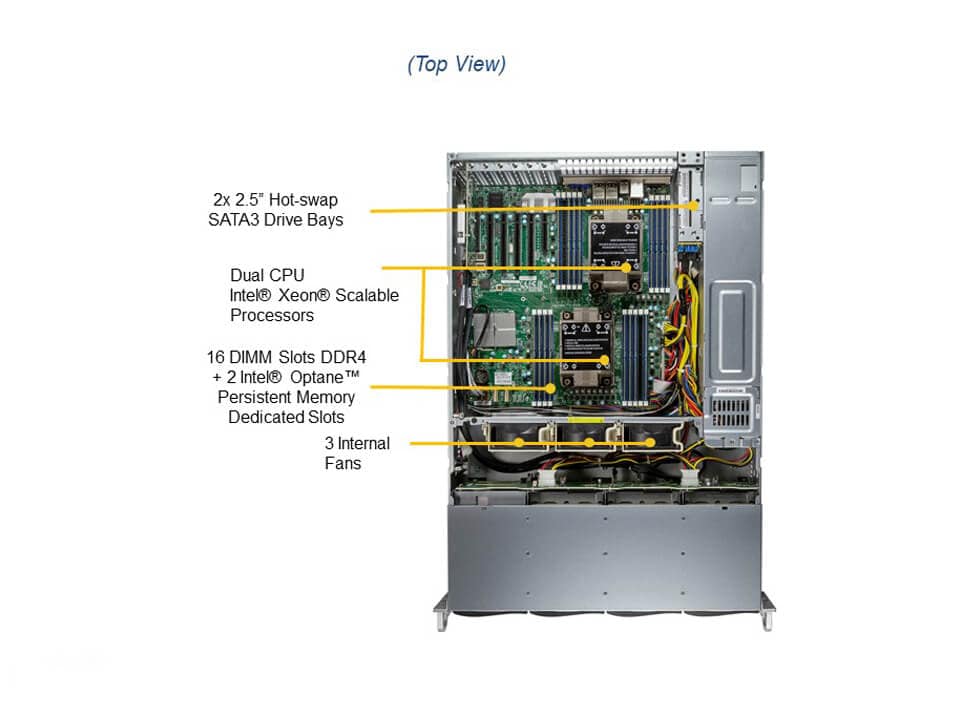

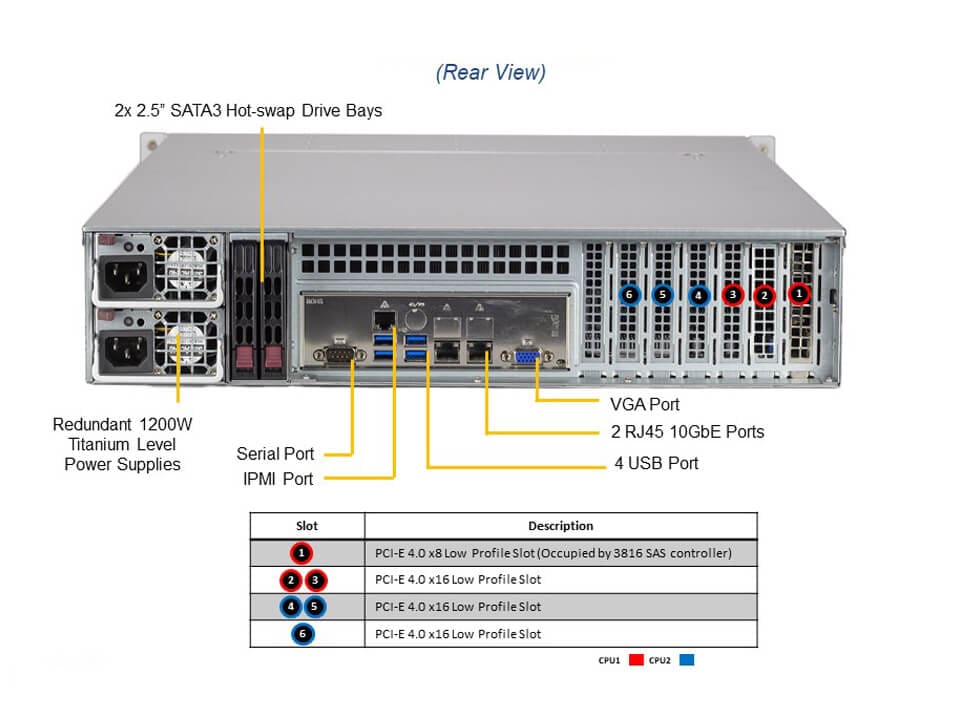

SSG-620P-ACR12L Main SSG-620P-ACR12L Angle SSG-620P-ACR12L Top SSG-620P-ACR12L Front SSG-620P-ACR12L Rear
Integrated Board: X12DPi-NT6
Learn more

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  3. 2x 10Gbe
  4. 12x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5" slots; onboard 1 M.2 NVMe
  5. 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
  6. Broadcom® 3816 Controller
...
...
SSG-620P-ACR12L
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-620P-ACR12L
Motherboard
Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W - 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSV-826BTS-R1K23LPBP2
Dimensions and Weight
Height
  • 3.5"
Width
  • 17.3"
Depth
  • 25.5"
Package
  • 12" (H) x 27" (W) x 35" (D)
Weight
  • Gross Weight: 61 lbs (27.7 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 14 bays
    • 8 front hot-swap 3.5" SAS/SATA drive bays
    • 4 front hot-swap 3.5" NVMe*/SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 3 Heavy Duty 8cm Fan(s)
Power Supply
2x 1200W
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)76 x 40 x 336 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPi-NT6

CSV-826BTS-R1K23LPBP2 		1

1 		Super X12DPi-NT6 Motherboard

2U Chassis
Add-on Card / Module AOC-S3816L-L16IT-P 1 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA - LP,122 HDD w/exp
Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor
Cable CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-SAST-1249-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),50CM,100 OHM,
CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
CBL-CDAT-0921-85 1 [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1069 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
SNK-P0078PC 1 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
*Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
*Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
*Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
*Fan FAN-0166L4 OR 3 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
FAN-0206L4 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Bezel MCP-210-82601-0B • - Black Front Bezel for 826 chassis
Converter Tray MCP-220-00043-0N • - Black hot-swap gen 4 3.5 to 2.5 HDD tray
IPASS Cable CBL-SAST-0388L-02 • - 30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB
Network Cards AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
More - AOC Compatibility Matrix (Select Storage & Generation)
NVMe Support MCP-220-00116-0B • 4 Black gen-5.5 tool-less 3.5-to-2.5 NVME converter drive tray,RoHS/REACH
CBL-SAST-1248-85 2 [NR] Slimline x8 (LE) to Slimline x8 (STR),46CM,85 OHM,RoHS
Power Cord CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Rear 3808 SAS Support CBL-SAST-1270-100 1 SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
AOC-S3808L-L8IT-O • 1 3808 SAS Controller
Rear 3908 SAS Support AOC-S3908L-H8IR-16DD-O 1 3908 SAS Controller
CBL-SAST-1270-100 1 SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
Toolless Converter Tray MCP-220-00118-0B • - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
TPM AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-O • 1 TPM 2.0, vertical form factor, provisioned for server

Storage SuperServer SSG-620P-ACR12L

Certain products may not be available in your region
