SuperServer SSG-640P-E1CR24H

4U front-loading storage server with 24 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 4.0

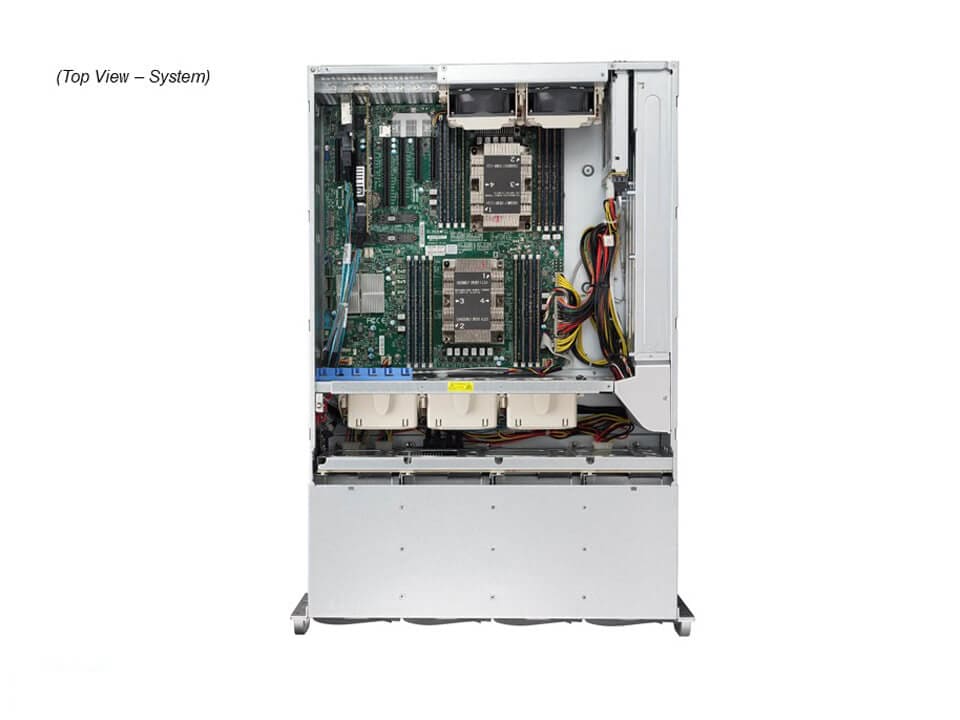

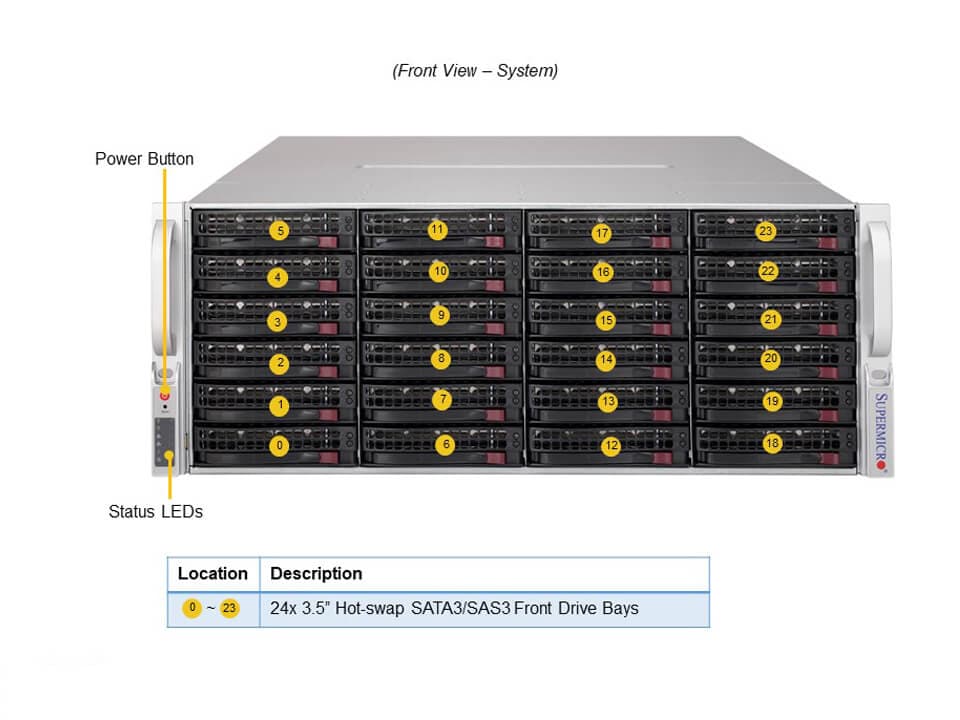

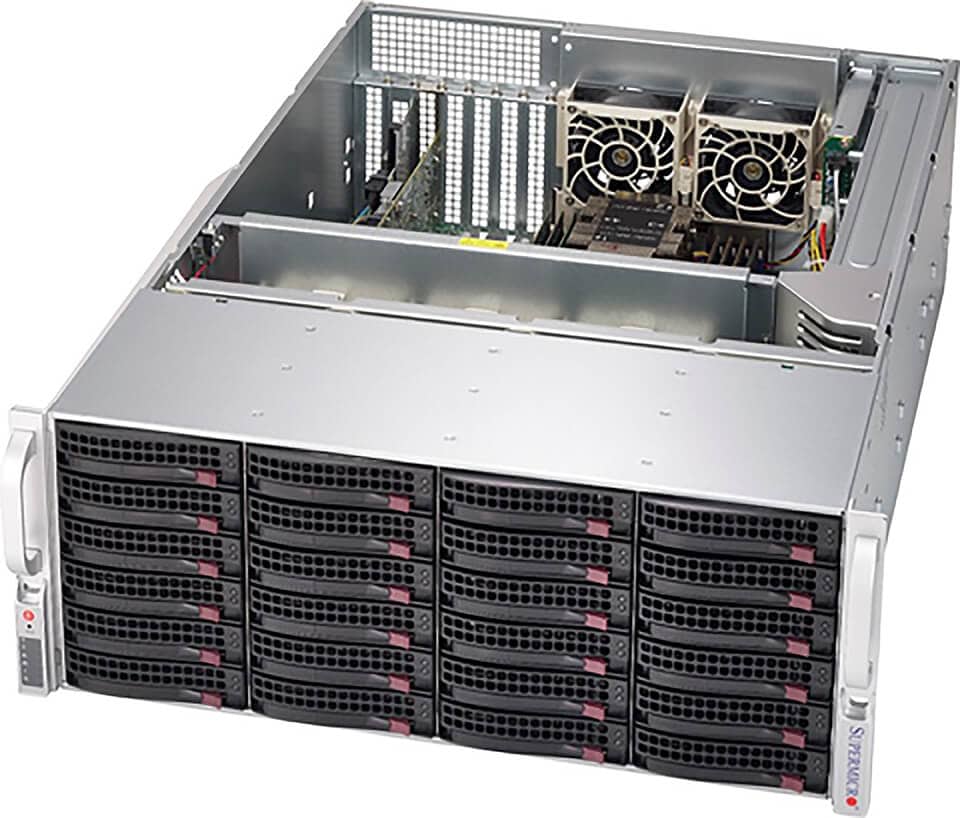

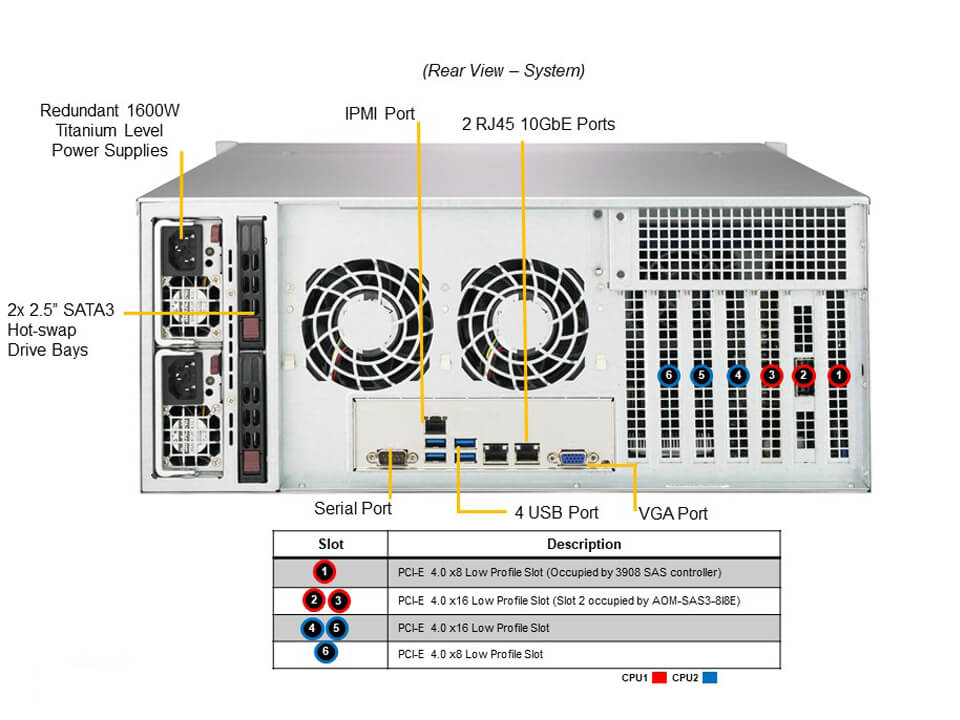

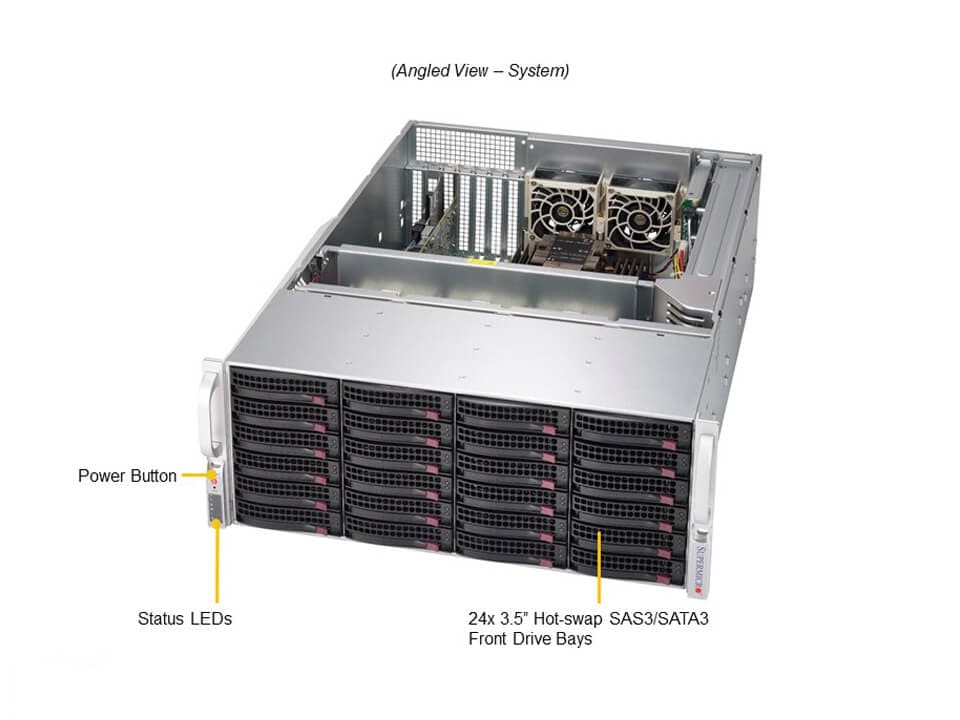

SSG-640P-E1CR24H Main SSG-640P-E1CR24H Angle SSG-640P-E1CR24H Top SSG-640P-E1CR24H Front SSG-640P-E1CR24H Rear
Integrated Board: X12DPi-NT6
Learn more

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  3. 2x 10Gbe
    Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  4. 24 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
  5. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 1200W Redundant Power Supplies Titanium Level (96%)
  7. HW RAID support via Broadcom® 3908
...
...
SSG-640P-E1CR24H
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-640P-E1CR24H
Motherboard
Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W - 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U
Model
Dimensions and Weight
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 26" (660 mm)
Package
  • 26.5" (H) x 34.3" (W) x 13.5" (D)
Weight
  • Gross Weight: 118 lbs (53.52 kg)
  • Net Weight: 86 lbs (39 kg)
Available Color
  • Black
Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
  • Unit Identification (UID) LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 26 bays
    • 24 front hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
  • View Drive Options
M.2
System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)
Power Supply
2x 1200W
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)76 x 40 x 336 mm
AC Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPi-NT6

CSE-846BE1C-R1K23B 		1

1 		Super X12DPi-NT6 Motherboard

4U Chassis
Add-on Card / Module AOC-S3908L-H8IR-P 1 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHS
AOM-SAS3-8I8E 1 8-port Mini SAS HD Int-to-Ext Cable Adapter w/FH Bracket
Backplane BPN-SAS3-846EL1-N8 1 24-Port 4U Exp. BPN Support up-to 16x3.5"HDD and 8XNVMe
Cable CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-PWEX-0645 2 Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm
CBL-SAST-0532 2 Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 2 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT846-2824 1 PDB with 23pairs input connector support SC846B
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
3916 Cache Protection BKT-BBU-BRACKET-05 or MCP-240-00203-0N • 1 Remote Mounting Bracket for LSI BBUs, can hold 2x BTR-CVPM05
BTR-CVPM05 • 1 or 2 Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender
Bezel MCP-210-84601-0B • - Black Front Bezel For SC846 Chassis
Converter Tray MCP-220-00043-0N • - Black hot-swap gen 4 3.5 to 2.5 HDD tray
External SAS Cable (FOR JBOD) CBL-SAST-0573 • - 1m External Mini SAS HD to External Mini SAS HD.28AWG
IPASS Cable CBL-SAST-0388L-02 • - 30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB
Network Cards AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
More - AOC Compatibility Matrix (Select Storage & Generation)
Power Cord CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Rear 3808 SAS Support AOC-S3808L-L8IT-O • 1 3808 SAS Controller
CBL-SAST-1270-100 1 SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
Rear 3908 SAS Support AOC-S3908L-H8IR-16DD-O 1 3908 SAS Controller
CBL-SAST-1270-100 1 SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
Toolless Converter Tray MCP-220-00118-0B • - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
TPM AOM-TPM-9670V-O • 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
