SuperServer SSG-640P-E1CR36L

4U front/rear-loading storage server with 36 hot-swap 3.5" SAS/SATA bays and PCIe 4.0

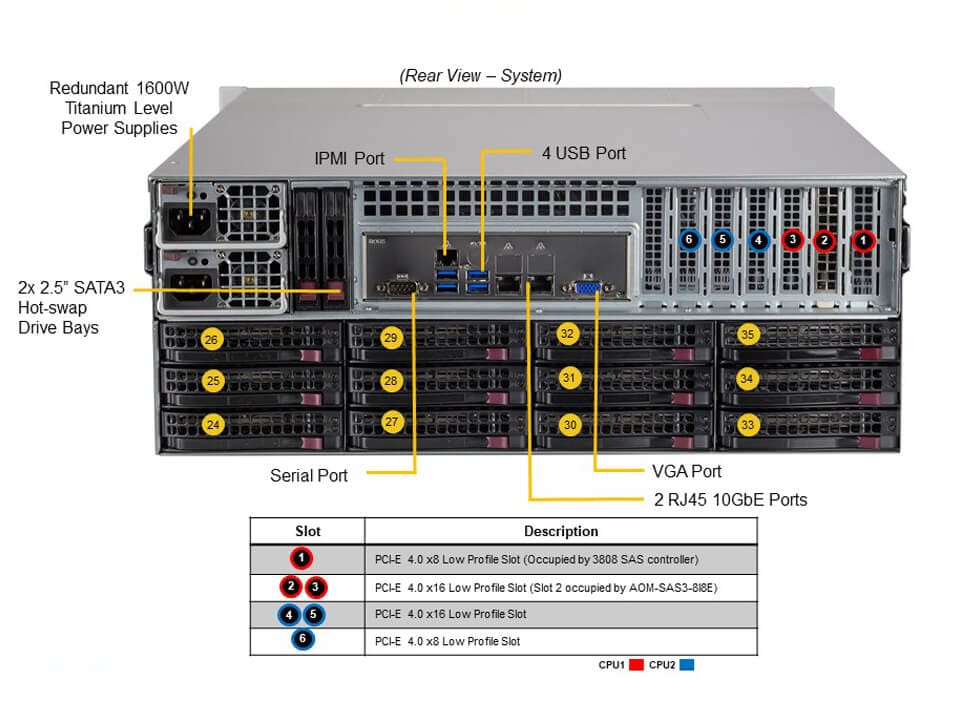

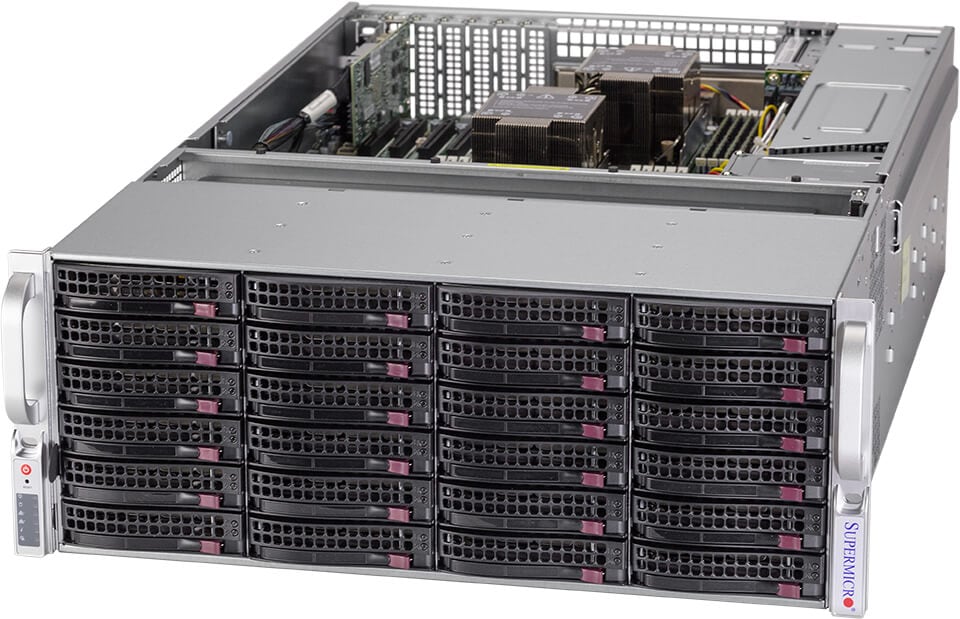

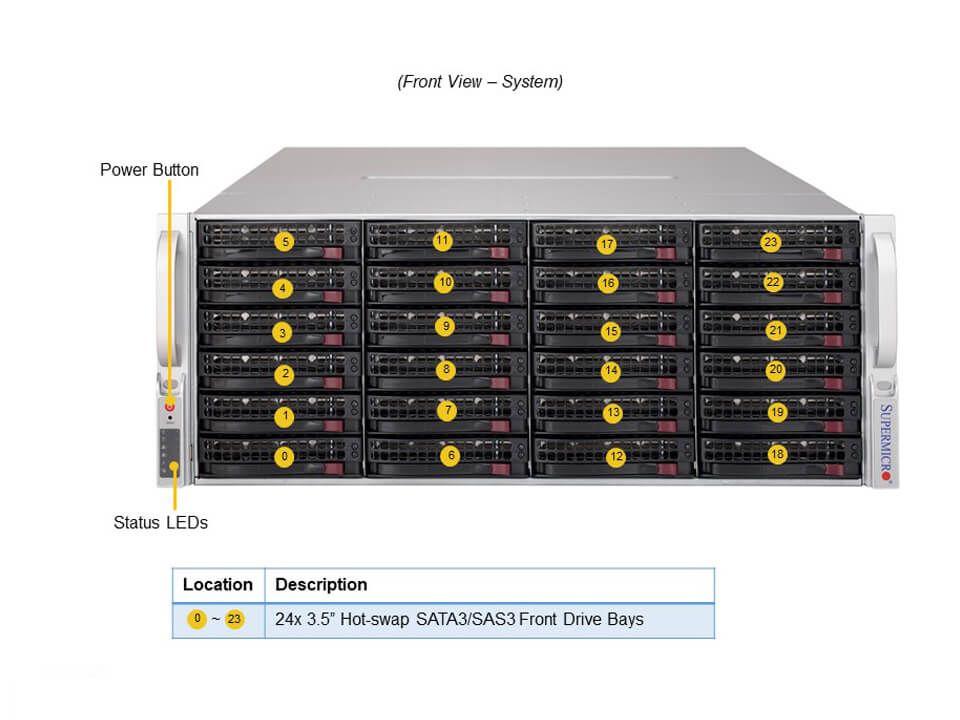

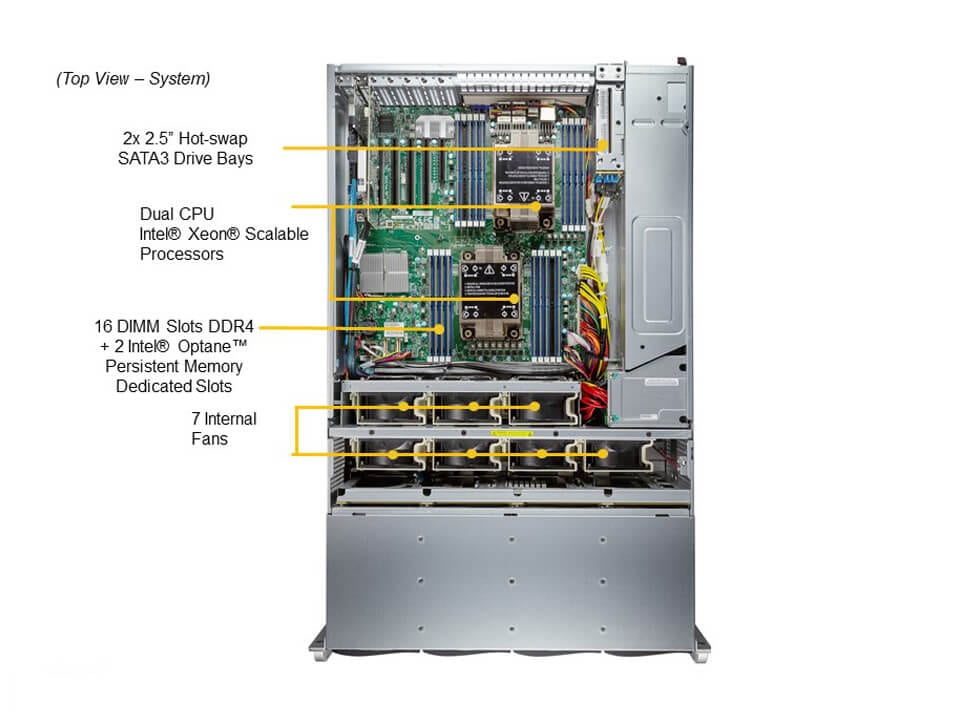

SSG-640P-E1CR36L Main SSG-640P-E1CR36L Angle SSG-640P-E1CR36L Top SSG-640P-E1CR36L Front SSG-640P-E1CR36L Rear
Integrated Board: X12DPi-NT6
Learn more

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Density Optimized Storage Building Block

Key Features

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  3. 2x 10Gbe
    Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  4. 36 3.5"/2.5" Hot-swap SAS3/SATA3 drives (4 Hybrid NVMe), 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
  5. 7x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 1600W Redundant Power Supplies Titanium Level (96%)
  7. HBA Controller support via Broadcom® 3808
...
...
SSG-640P-E1CR36L
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-640P-E1CR36L
Motherboard
Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W - 270W TDP CPUs (Air Cooled)
System Memory
Memory
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-847BTS-R1K68LPBP4
Dimensions and Weight
Height
  • 7"
Width
  • 17.2"
Depth
  • 27.5"
Package
  • 15" (H) x 27" (W) x 39" (D)
Weight
  • Gross Weight: 102.5 lbs (46.4 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 38 bays
    • 24 front hot-swap 3.5" SAS/SATA drive bays
    • 12 rear hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SAS*/SATA drive bays
  • (*SAS support may require additional storage controller and/or cables)
  • View Drive Options
M.2
System Cooling
Fans
  • 7 Heavy Duty 8cm Fan(s)
Power Supply
2x 1600W
2x 1600W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
AC Input100-140Vac
800W: 100-140Vac / 50-60Hz
180-240Vac
1600W: 180-240Vac / 50-60Hz
+12VMax: 66A / Min: 0A (100Vac-127Vac)
Max: 66A / Min: 0A (100Vac-140Vac)
Max: 133A / Min: 0A (180Vac-240Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
5V SBMax: 1A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPi-NT6

CSE-847BTS-R1K68LPBP4 		1

1 		Super X12DPi-NT6 Motherboard

4U Chassis
Add-on Card / Module AOC-S3808L-L8IT-P 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R
AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext Cable Adapter W/LP Bracket
Backplane BPN-SAS3-826EL1-N4 1 12-Port 2U BPN with EXP up to 8x3.5" SAS3 HDD& 4xNVMe
BPN-SAS3-846EL1-N8 1 24-Port 4U Exp. BPN Support up-to 16x3.5"HDD and 8XNVMe
Cable CBL-0296L 1 9" 4 PIN FAN PWS EXTENSION CORD, PBF
CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-SAST-0531 4 Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-0160L 2 US POWER CORD 16AWG, PB FREE
CBL-PWEX-1079 7 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,37CM,22AWG,5A/pin,RoHS
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
SNK-P0078PC 1 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
*Power Distributor PDB-PT847-8824 1 24pin standard output with 5V high current 100Amp power distributor board for SC847
*Fan FAN-0166L4 7 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
*Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
*Drive Tray(s) MCP-220-00075-0B 36 Black gen 5.5 hot-swap 3.5" HDD tray
MCP-220-84708-ASM 1 SC847B LP MB Tray assembly,HF,RoHS/REACH
*Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2" W
MCP-410-00007-0N 1 Rail screw bag
*Air Shroud MCP-310-49004-0N 1 SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Bezel MCP-210-84601-0B • - Black Front Bezel For SC846 Chassis
Converter Tray MCP-220-00043-0N • - Black hot-swap gen 4 3.5 to 2.5 HDD tray
External SAS Cable (FOR JBOD) CBL-SAST-0573 • - 1m External Mini SAS HD to External Mini SAS HD.28AWG
IPASS Cable CBL-SAST-0388L-02 • - 30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB
Network Cards AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
More - AOC Compatibility Matrix (Select Storage & Generation)
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Power Cord CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Rear 3808 SAS Support AOC-S3808L-L8IT-O • 1 3808 SAS Controller
CBL-SAST-1270-100 1 SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
Rear 3908 SAS Support AOC-S3908L-H8IR-16DD-O 1 3908 SAS Controller
CBL-SAST-1270-100 1 SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
Toolless Converter Tray MCP-220-00118-0B • - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
TPM AOM-TPM-9670V-O • 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
