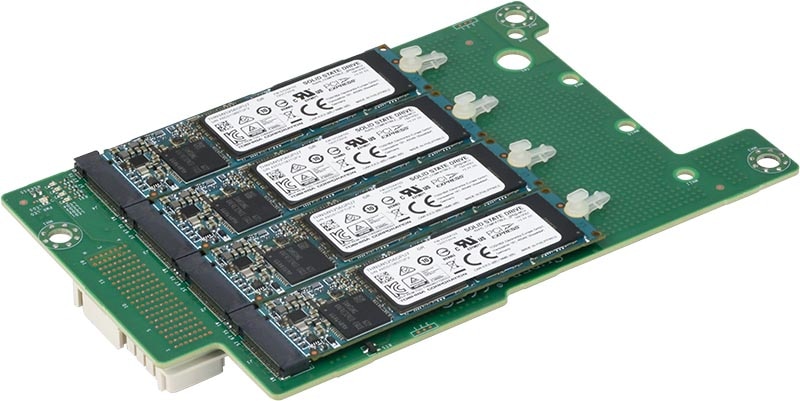

  • AOM-B-4M
Add-on ModuleSupermicro M.2 NVMe Storage Expansion Card

The Add-on-Module AOM-B-4M which accommodates 4x M.2 immediately provide additional capacity and increases the total available storage capacity for the blade server.
Key Features
  • Provides 4x M.2

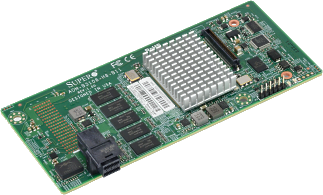

  • AOM-B3108-H8-B11
Add-on ModuleSupermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter

The Supermicro AOM-B3108-H8-B11 mezzanine RAID card is built on the Broadcom MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of supercar/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Compliance
  • RoHS Compliant 6/6, Pb Free
Key Features
  • Broadcom 3108 PCI-E SAS-3 controller
  • 12Gb/s per port
  • Supports up to 8 physical Devices
  • Supports RAID 0, 1, 5, 10
  • On board hardware IO Processor
  • 2GB 1866MHz DDR3 on-card cache
  • Advanced array configuration and management utilities
  • Automatically negotiates PCI-E link widths
  • Power management support
  • Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
  • Supports SSP, SMP, STP and SATA protocols
  • Optional Supercap/TFM Unit for cached data protection
    (BTR-TFM8G-LSICVM02);
    • Ambient operating temperature from 10°C - 55°C
  • OS Support : Windows XP, 2K3, 2K8, Vista, RedHat Enterprise and SUSE Linux
  • Supports fastpath(Free) and Cachecade
    (AOC-CHCD-PRO2-ESW)
Dimensions2.55" x 5.84"
Compatible Motherboards and Servers
Downloads
