SuperServer SYS-110C-FHN4T

Intel Single Socket LGA-1200 (Socket H5) support 10th Gen, 200W Low Noise AC-DC PWS, 1U edge platform

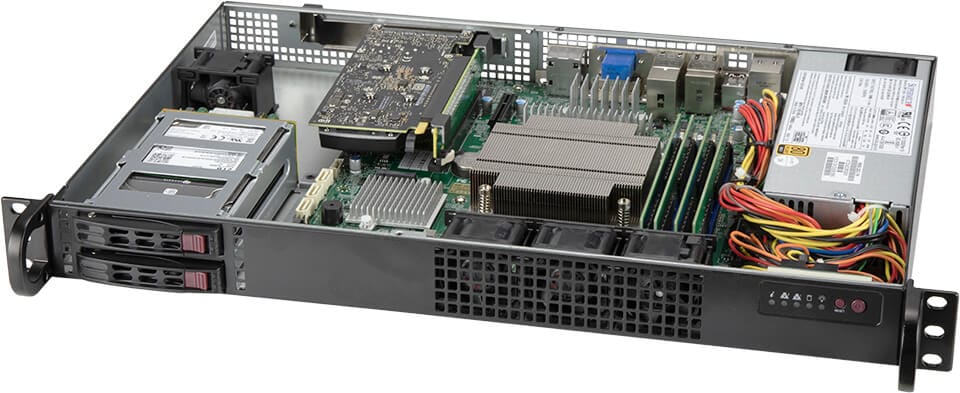

SYS-110C-FHN4T Main SYS-110C-FHN4T Angle SYS-110C-FHN4T Front SYS-110C-FHN4T Rear
Integrated Board: X12SCZ-TLN4F
Learn more

Key Applications

  • Compact 1U Network Security
  • Video Surveillance
  • Office Server, DVR/NVR
  • Digital Signage, POS

Key Features

  1. Single Socket LGA-1200 (Socket H5) support 10th/11th Gen. Core™ I & Xeon W-1200 processors
  2. 4x DIMMs; Up to 128GB Unbuffered ECC/non-ECC UDIMM
  3. 1x PCIe Gen3 x16 HHHL slot

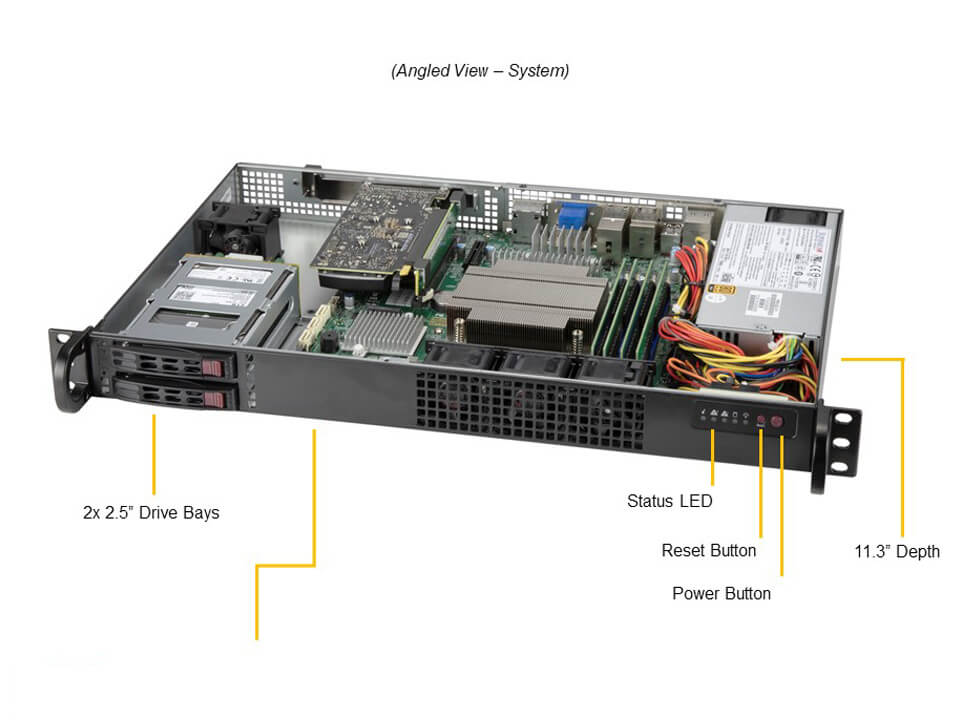

  4. 2 Hot-swap 2.5" SATA3 drive bays
  5. 4x 40x28mm 4-pin PWM fans
  6. 200W Low Noise AC-DC power supply with PFC
  7. Rear-access I/O: 2x 10GBased-T, 2x GbE, 1x Dedicated IPMI, 4x USB3.0, 1x VGA, 1x DVI-D, 2x DP
...
...
SYS-110C-FHN4T
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-110C-FHN4T
Motherboard
Super X12SCZ-TLN4F
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • 10th/11th Gen Intel® Core™ i9/i7/i5/i3, Intel® Xeon® W-1200 processors
Core Count
  • Up to 10C/20T; Up to 20MB Cache
Note
  • Supports 35W - 80W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 2933MT/s ECC DDR4 UDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Chipset
  • Intel® W480E
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
  • 2 RJ45 1 GbE LAN ports
USB
  • 4 Type-A ports
Video
  • 1 VGA port
  • 1 DVI-D port
  • 2 DisplayPort ports
DOM
  • 1 SuperDOM (Disk on Module) port
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-510FT-203B
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 11.3" (287 mm)
Package
  • 6.1" (H) x 25.4" (W) x 19.8" (D)
Weight
  • Gross Weight: 14.1 lbs (6.4 kg)
  • Net Weight: 10 lbs (4.54 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4x 4-PIN PWM 40x28mm Fan(s)
Power Supply
1x 200W
1x 200W Gold Level (91%) power supply
Dimension (WxHxL)76 x 40.3 x 192 mm
AC Input200W: 100-240Vac
200W: 100-240Vac / 50-60Hz
+12VMax: 16A / Min: 0.1A (100Vac-240Vac)
Max: 16A / Min: 0A (100Vac-240Vac)
5V SBMax: 2A / Min: 0A
Output Type20pin ATX
Certification  Gold Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (41°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SCZ-TLN4F

CSE-510FT-203B 		1

1 		Super X12SCZ-TLN4F Motherboard

1U Chassis
Cable CBL-0296L 1 9" 4 PIN FAN PWS EXTENSION CORD, PBF
CBL-0061L 2 7pin SATA (STR to STR), 31.5cm, Flat, PBF
Fan FAN-0065L4 1 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Parts MCP-150-00015-0B 1 Rubber pad, 3.0mm H, 10x10mm
MCP-260-00101-0B 1 1U I/O Shield for X11SSZ on SC510 with EMI Gasket
Rear Window MCP-240-00091-0N 2 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Air Shroud MCP-310-00097-0B 1 Air shroud for 4-DIMM size,HF,RoHS
Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
Heatsink / Retention SNK-P0049P 1 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
*Backplane BPN-SAS-510T 1 2-port 1U (SC510T) direct-attached backplane, support up to 2x 2.5-inch SAS/SATA HDD/SSD
*Power Supply PWS-203-1H 1 1U 200W Multi-output 80Plus Gold PWS
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
