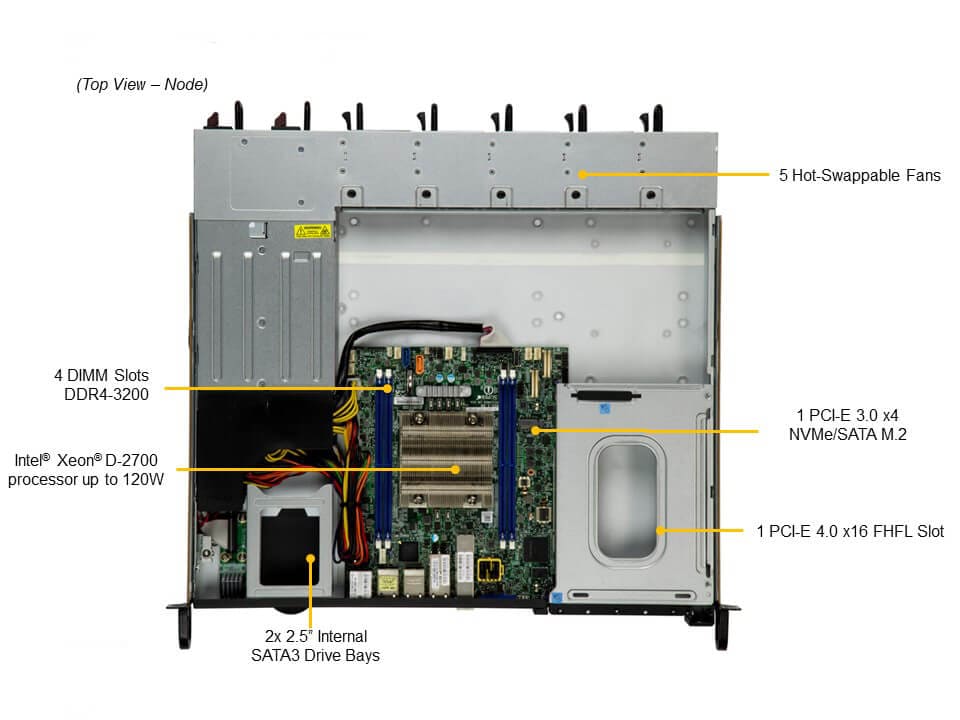

SuperServer SYS-110D-14C-FRAN8TP

Intel Xeon Processor, 14-Core, 800W redundant Platinum Level PWS, 1U edge platform

Key Applications

  • Intel® QuickAssist Technology
  • Networking Application, Firewall, uCPE, Telecom Application

Key Features

  1. Intel® Xeon® Processor D-2766NT, CPU TDP 97W
  2. Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, in 4 DIMM slots
  3. 2x Internal 2.5" drive bays(2x PCIe 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
  4. 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
  5. 1x M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
  6. 5x 40x56mm Hot-swap Counter-rotation PWM Fans
  7. Redundant 800 W, 100-240 Vac
...
...
SYS-110D-14C-FRAN8TP
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-110D-14C-FRAN8TP
Motherboard
Super X12SDV-14C-SPT8F
Processor
CPU
  • Single FCBGA-2579
  • Intel® Xeon® Processor D-2700 Series
Note
  • Supports up to 97W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (1DPC): Up to 256GB/512GB 2667MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® SoC
Network Connectivity
  • 4 RJ45 1GBASE-T with Intel® I350
  • 2 SFP28 25GbE with Intel® SoC
  • 2 RJ45 10GBASE-T with Intel® X550
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 4 RJ45 1 GbE LAN ports (Intel® I350)
  • 2 RJ45 10 GbE LAN ports (Intel® X550)
  • 2 SFP28 25 GbE LAN ports (Intel® SOC)
USB
  • 2 ports
Video
  • 1 VGA port
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515M-R000NP2
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 15.7" (399 mm)
Package
  • 7.9" (H) x 26.7" (W) x 23.8" (D)
Weight
  • Gross Weight: 29 lbs (13.15 kg)
  • Net Weight: 18 lbs (8.16 kg)
Available Color
  • Silver

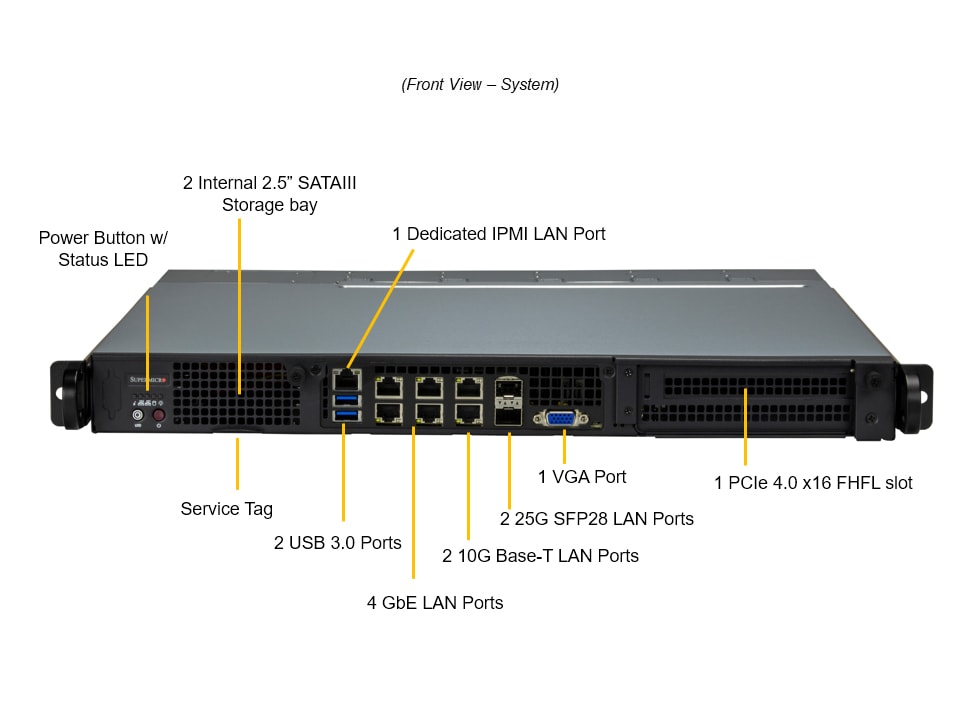

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 internal fixed 2.5" SATA drive bays
M.2
System Cooling
Fans
  • 5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s)
Power Supply
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SDV-14C-SPT8F

CSE-515M-R000NP2
1

1
Super X12SDV-14C-SPT8F Motherboard

1U Chassis
Cable CBL-0483L 2 7pin SATA (STR to STR), 29cm, PBF
CBL-OTHR-1214-24 7 FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
CBL-0191L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,50CM,PBF
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0207L4 5 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
Parts MCP-260-00099-0B 1 1U Black I/O Shield for A2SDi-TP8F with EMI Gasket
MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
Air Shroud MCP-310-51504-0B 1 Mylar Air Shroud for SC515M + X11 SDW
Manual MNL-2541-QRG 1 110D-4C/8C/16C/20C-FRA(D)N8TP Quick Reference Guide
Power Supply PWS-804P-1R 2 1U 800W 100-240VAC/50-60Hz, and DC240V input
Riser Card RSC-S-6G4 1 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
*Power Distributor PDB-PT515M-2424 1 1U support redundancy up to 800W for SC515M chassis with ATX
*Drive Tray(s) MCP-220-00137-0N 1 Dual 2.5 HDD bracket (bracket base follow std 2.5
*Rear Window MCP-240-51505-0N 1 Rear window for SC515M Redundant PWS chassis
*Front Panel MCP-280-80901-0N 1 SC809 FRONT CONTROL PANEL ASSY
*Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6
MCP-290-00108-0B 1 set Inner rail, front, short (quick) for 1U 17.2
*Fan Holder MCP-320-51501-0N 2 1U hot-swap 4056 dummy fan tray for SC515M (no venting hole)
MCP-320-51502-0N 1 1U hot-swap 4056 fan tray for FAN-0207L4 in SC515M (with venting hole)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
SlimSAS x8 to PCIe 2x SFF-8639&PWR,G4,55CM,85OHM,Ro CBL-SAST-0953-1 1 SlimSAS x8 to PCIe 2x SFF-8639&PWR,G4,55CM,85OHM,Ro
