Part Number |
Qty |
Description |

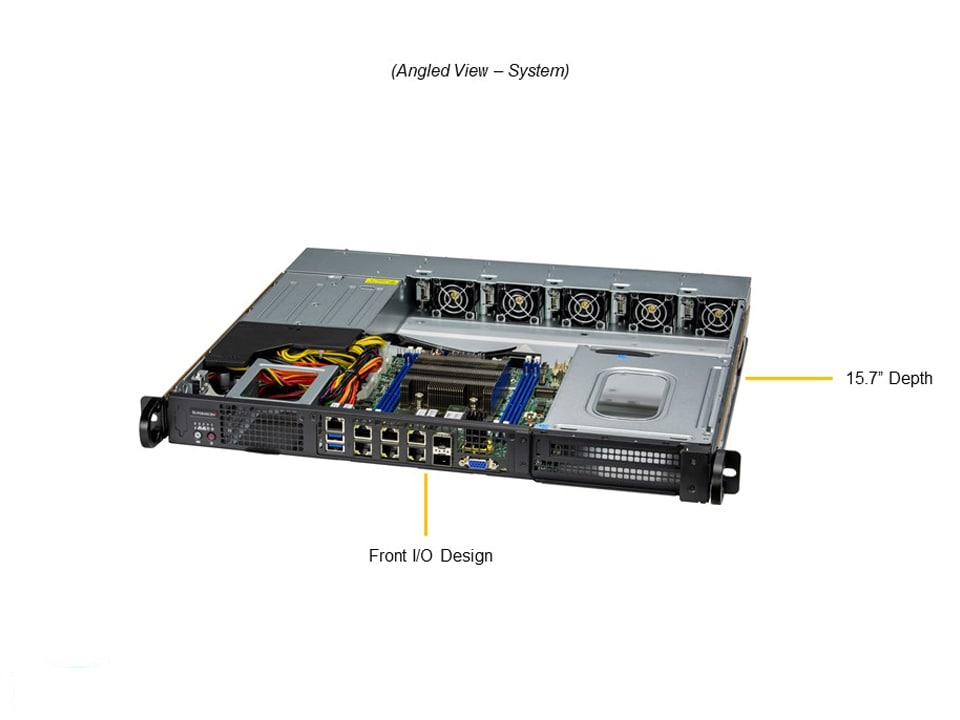

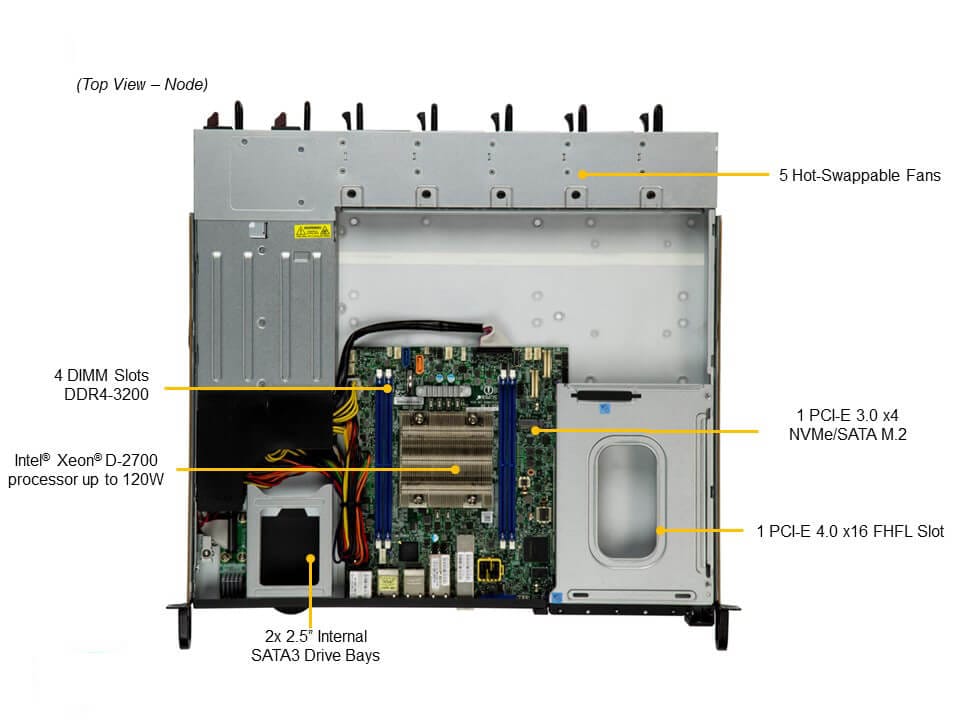

| Motherboard / Chassis |
MBD-X12SDV-8C-SPT8F
CSE-515M-R000NP2
|
1
1
|
Super X12SDV-8C-SPT8F Motherboard
1U Chassis
|
|
Cable
|
CBL-0483L |
2 |
7pin SATA (STR to STR), 29cm, PBF |
| CBL-OTHR-1214-24 |
7 |
FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS |
| CBL-0191L |
1 |
FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,50CM,PBF |
| CBL-PWCD-0160-IS |
2 |
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
|
Fan
|
FAN-0207L4 |
5 |
40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan |
|
Parts
|
MCP-260-00099-0B |
1 |
1U Black I/O Shield for A2SDi-TP8F with EMI Gasket |
| MCP-260-00078-0B |
1 |
1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black |
|
Air Shroud
|
MCP-310-51504-0B |
1 |
Mylar Air Shroud for SC515M + X11 SDW |
|
Manual
|
MNL-2541-QRG |
1 |
110D-4C/8C/16C/20C-FRA(D)N8TP Quick Reference Guide |
|

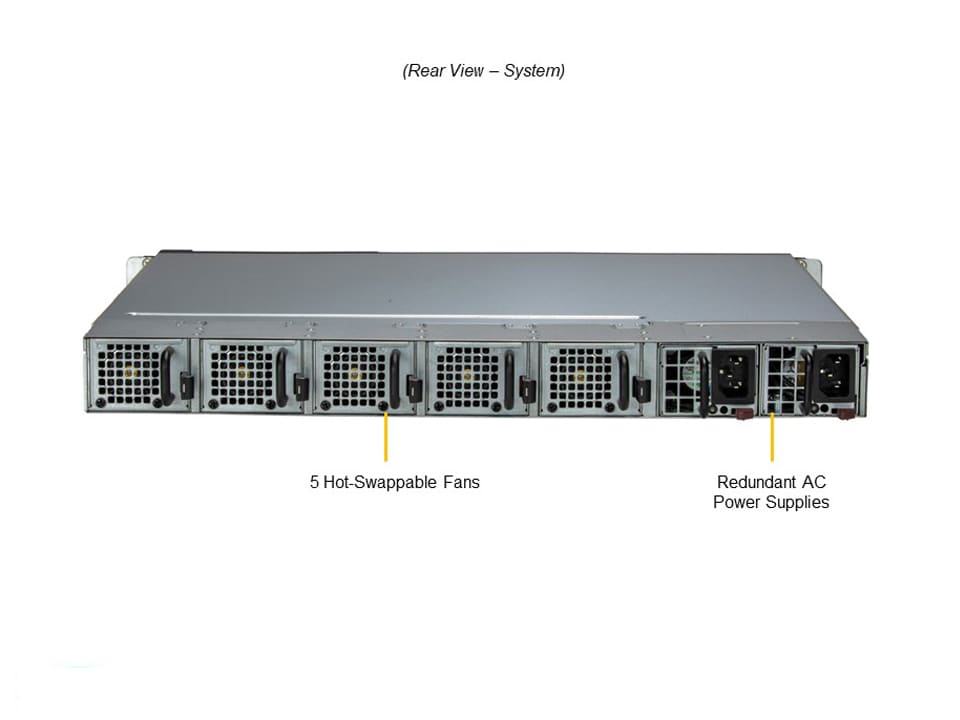

Power Supply
|
PWS-804P-1R |
2 |
1U 800W 100-240VAC/50-60Hz, and DC240V input |
|
Riser Card
|
RSC-S-6G4 |
1 |
1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro |
|
*Power Distributor
|
PDB-PT515M-2424 |
1 |
1U support redundancy up to 800W for SC515M chassis with ATX |
|
*Drive Tray(s)
|
MCP-220-00137-0N |
1 |
Dual 2.5 HDD bracket (bracket base follow std 2.5 |
|
*Rear Window
|
MCP-240-51505-0N |
1 |
Rear window for SC515M Redundant PWS chassis |
|

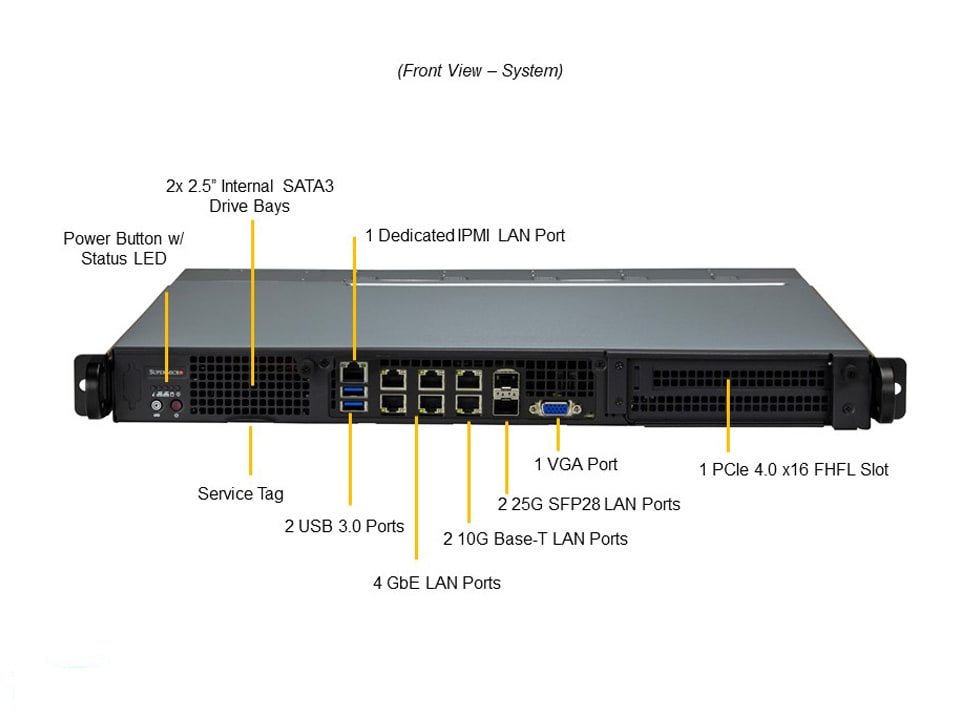

*Front Panel
|
MCP-280-80901-0N |
1 |
SC809 FRONT CONTROL PANEL ASSY |
|
*Rail Set
|
MCP-290-00102-0N |
1set |
Outer rail, quick-release type, 25.6 |
| MCP-290-00108-0B |
1 set |
Inner rail, front, short (quick) for 1U 17.2 |
|
*Fan Holder
|
MCP-320-51501-0N |
2 |
1U hot-swap 4056 dummy fan tray for SC515M (no venting hole) |
| MCP-320-51502-0N |
1 |
1U hot-swap 4056 fan tray for FAN-0207L4 in SC515M (with venting hole) |
Notes:
- Parts with * are inside the chassis
- Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
|
