SuperServer SYS-110P-FRDN2T

Intel Xeon Socket P+ (LGA-4189) support 3rd Gen, 600W -48 Vdc redundant PWS, 1U edge platform

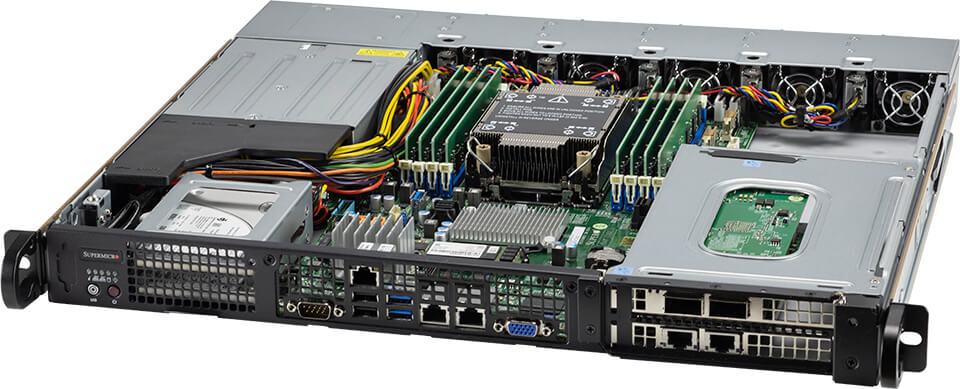

SYS-110P-FRDN2T Main SYS-110P-FRDN2T Angle SYS-110P-FRDN2T Top SYS-110P-FRDN2T Front SYS-110P-FRDN2T Rear
Integrated Board: X12SPW-TF
Learn more

Key Applications

  • Multi-Access Edge Computing
  • Flex-RAN, Open-RAN vBBU
  • Artificial Intelligence (AI) on Edge, Machine Learning (ML)

Key Features

  1. Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors

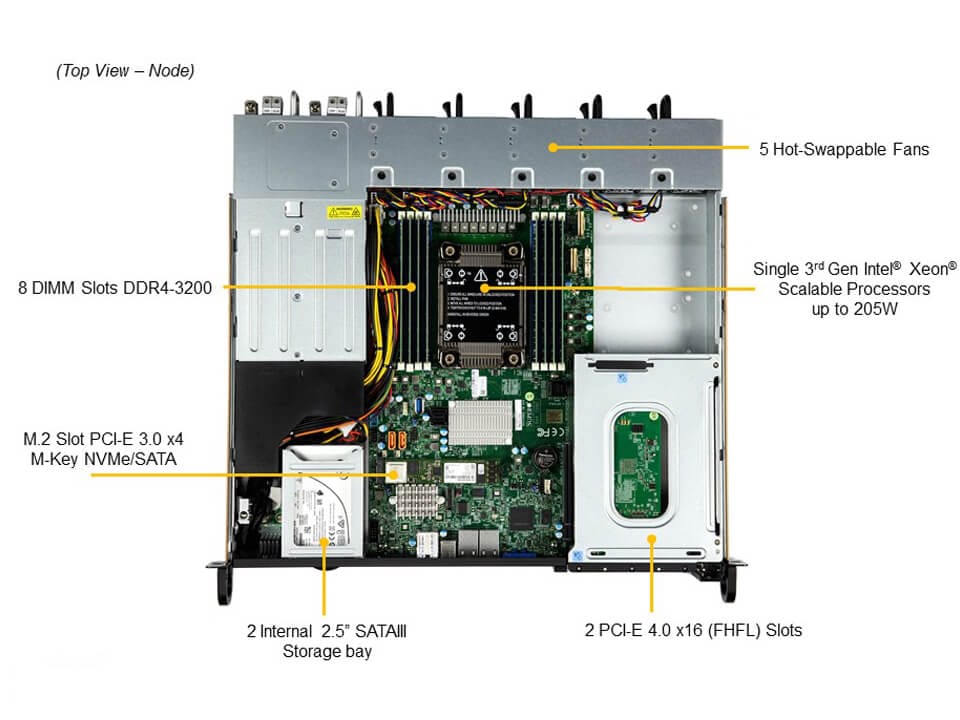

  2. 8x DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
  3. 2x PCIe Gen4 x16 FHFL slot
  4. 2x 2.5" drive bays; 1x M.2 NVMe OR 1x M.2 SATA3

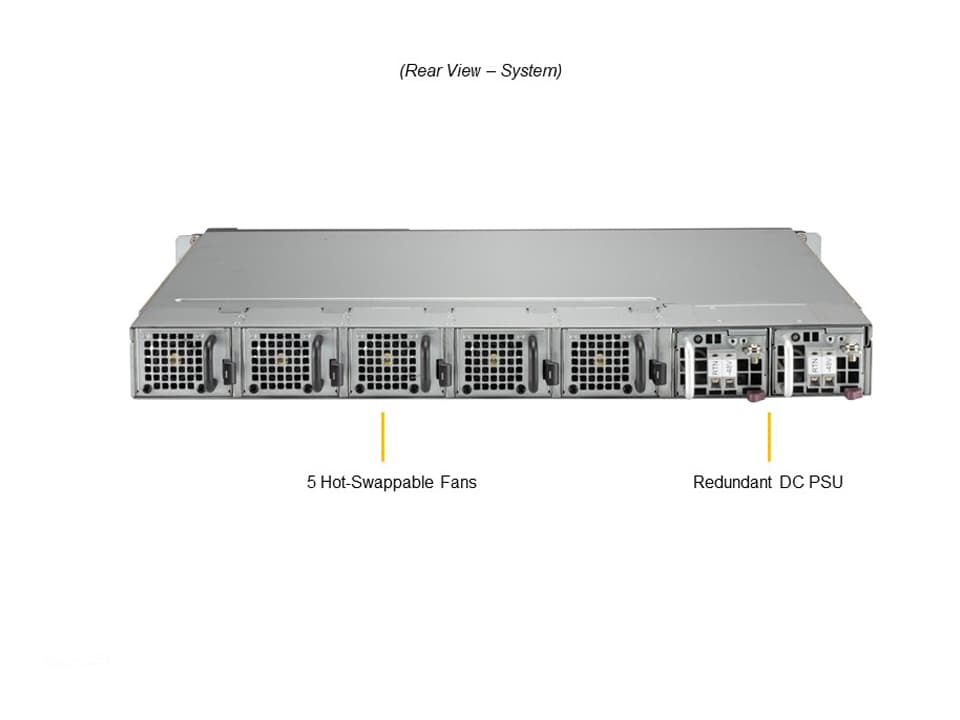

  5. 5x hot-swappable counter rotated fans with optimal fan speed control
  6. Redundant 600W DC Power Supplies

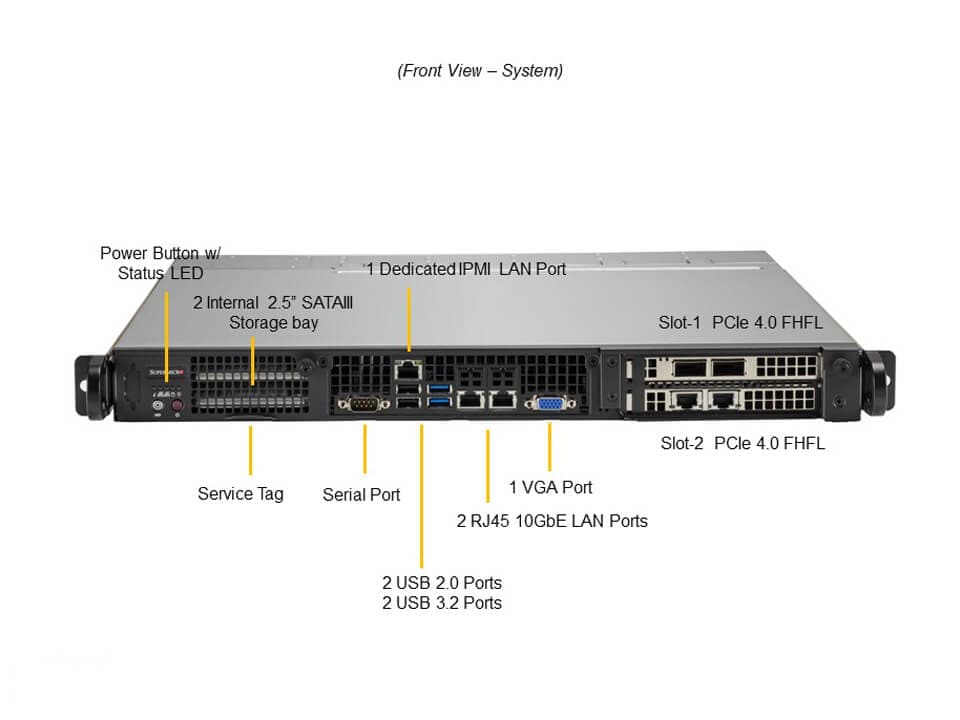

  7. Front-access I/O: 2x 10GBase-T, 1x Dedicated IPMI, 2x USB3.0, 2x USB2.0, 1x COM, 1x VGA
...
...
SYS-110P-FRDN2T
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-110P-FRDN2T
Motherboard
Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache
Note
  • Supports 85W - 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports
USB
  • 2 USB 3.0 Type-A ports
  • 2 USB 2.0 Type-A ports
Video
  • 1 VGA port
Management
Software
Power configurations
  • ACPI Power Management
  • Power-on mode for DC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
Chassis
Form Factor
  • 1U
Model
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 15.7" (399 mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 18 lbs (8.16 kg)
Available Color
  • Black
Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 5 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
1x 600W
1x 600W Redundant Typical 90%+ Level (92%) power supply
Dimension (WxHxL)54.5 x 40 x 220 mm
Total Output Power
AC Input600W: -44--65Vdc
+12VMax: 50A / Min: 0A
Max: 50A
5V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPW-TF

CSE-515M-R601 		1

1 		Super X12SPW-TF Motherboard

1U Chassis
Cable CBL-0483L 2 7pin SATA (STR to STR), 29cm, PBF
CBL-OTHR-1214-24 2 FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
CBL-PWCD-0974 2 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
Fan FAN-0207L4 2 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
Air Shroud MCP-310-51507-0B 1 Mylar Air Shroud for SC515M + X11SPW/X12SPW
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 1 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-601D-1R 2 -48V DC input, 12V and 5Vsb 600W output for 1U redundancy
*Power Distributor PDB-PT515M-2424 1 1U support redundancy up to 800W for SC515M chassis with ATX
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
TPM security module AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
