SuperServer SYS-110P-FRN2T

Intel Xeon Socket P+ (LGA-4189) support 3rd Gen, 800W redundant Platinum Level PWS, 1U edge platform

Key Applications

Multi-Access Edge Computing
Flex-RAN, Open-RAN vBBU
Artificial Intelligence (AI) on Edge, Machine Learning (ML)

Key Features

Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors

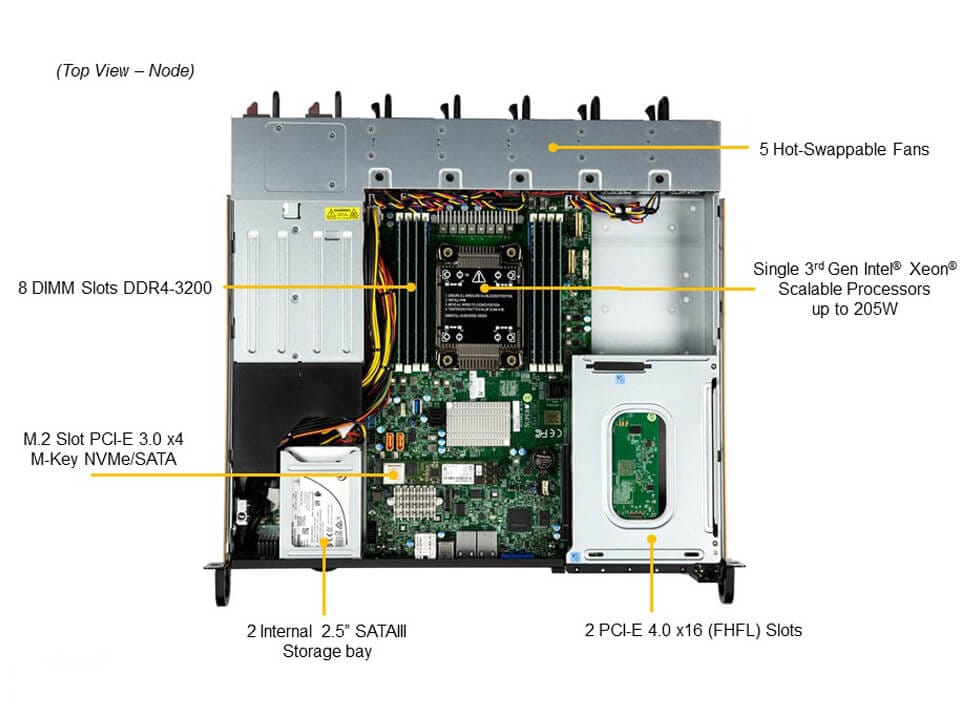

8x DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
2x PCIe Gen4 x16 FHFL slot
2x 2.5" drive bays; 1x M.2 NVMe OR 1x M.2 SATA3

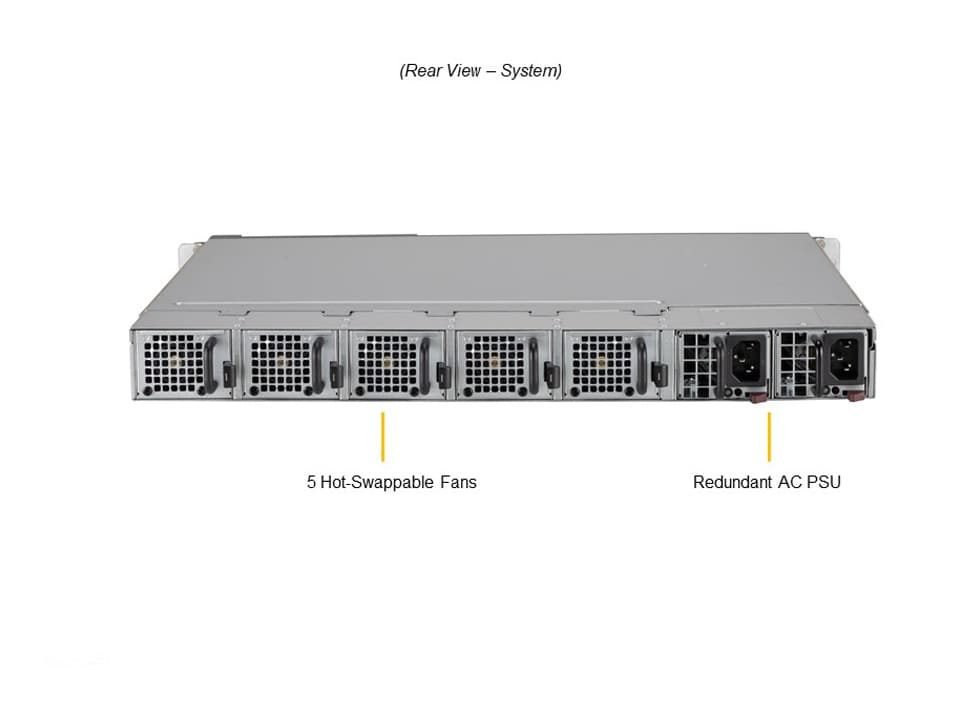

5x hot-swappable counter rotated fans with optimal fan speed control
Redundant 800W AC Power Supplies

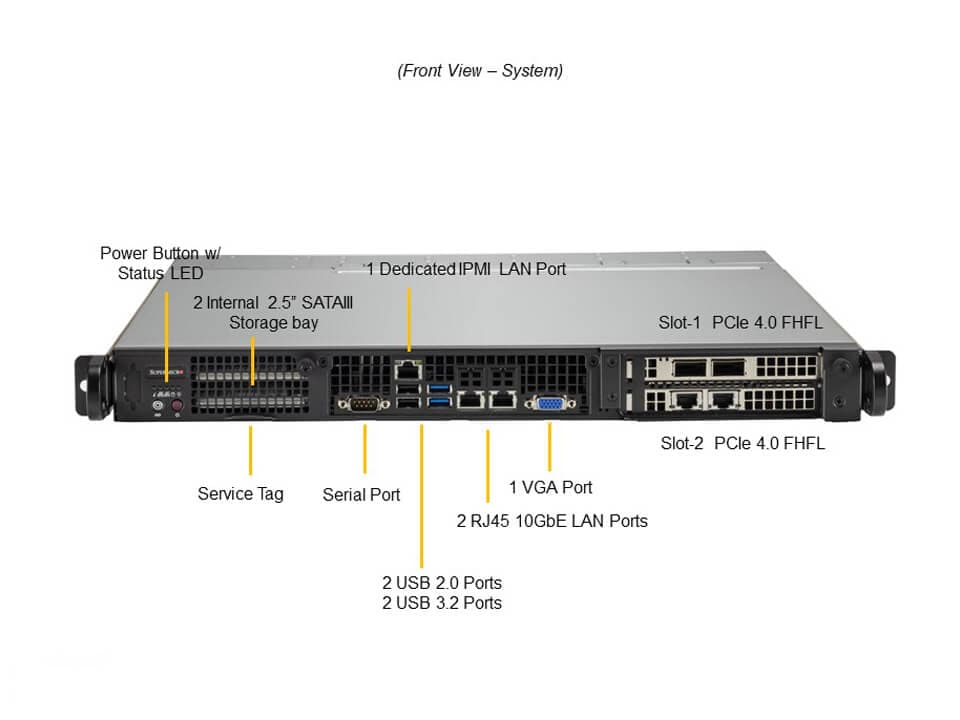

Front-access I/O: 2x 10GBased-T, 1x Dedicated IPMI, 2x USB3.0, 2x USB2.0, 1x COM, 1x VGA

...

...

SYS-110P-FRN2T

Compare

Specifications

Product SKUs
SuperServer SYS-110P-FRN2T

Motherboard
Super X12SPW-TF

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 32C/64T; Up to 48MB Cache
Note	Supports 85W - 205W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GBASE-T with Intel® X550 View AOC Options

Input / Output
LAN	2 RJ45 10 GbE LAN ports
USB	2 USB 3.0 Type-A ports 2 USB 2.0 Type-A ports
Video	1 VGA port

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support, PEPI

Chassis
Form Factor	1U
Model	CSE-515M-R804

Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)

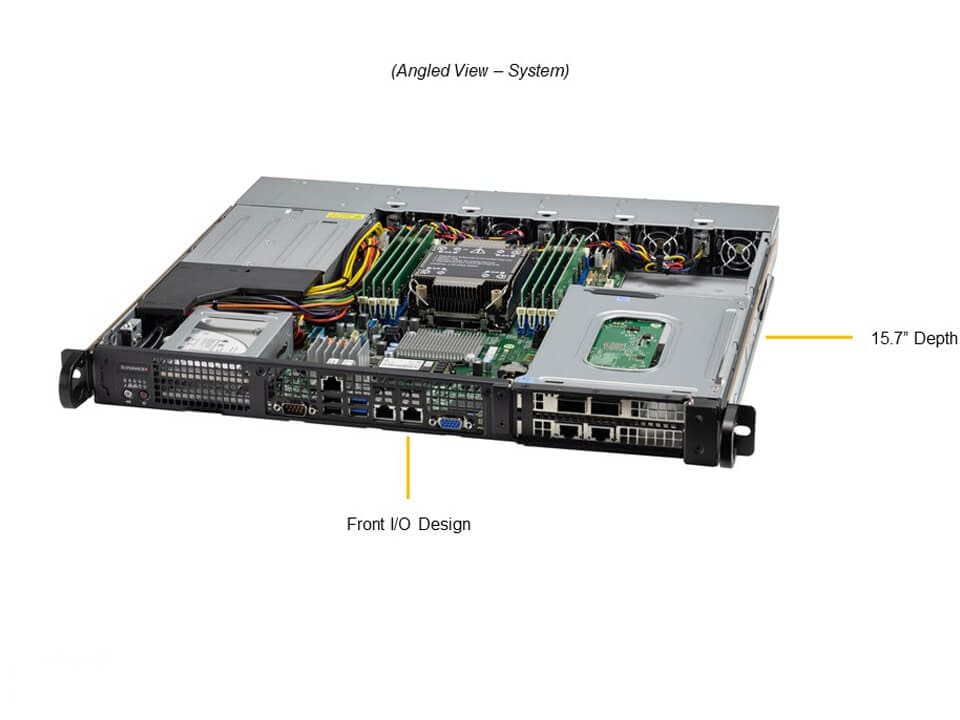

Depth	15.7" (399 mm)
Package	8" (H) x 27" (W) x 24" (D)
Weight	Gross Weight: 18 lbs (8.16 kg)
Available Color	Black

Front Panel
LED	Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED
Buttons	Power On/Off button System Reset button

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 4.0 x16 FHFL slots View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 2 bays 2 internal fixed 2.5" SATA drive bays View Drive Options
M.2	1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110) View M.2 Options

System Cooling
Fans	5 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

Power Supply

1x 800W

1x 800W Redundant Platinum Level (94%) power supply

Dimension (WxHxL)	54.5 x 40.25 x 220 mm
AC Input	100-127Vac 750W: 100-127Vac / 50-60Hz 200-240Vac 800W: 200-240Vac / 50-60Hz 230-240Vdc 800W: 230-240Vdc / 50-60Hz
+12V	Max: 62.5A / Min: 0.5A (100Vac-127Vac) Max: 62.5A / Min: 0A (100Vac-127Vac) Max: 66.6A / Min: 0.5A (200Vac-240Vac) Max: 66.6A / Min: 0A (200Vac-240Vac) Max: 66.6A / Min: 0.5A (230Vdc-240Vdc) Max: 66.6A / Min: 0A (230Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Resources & Downloads

Parts List

Standard Parts (Parts Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X12SPW-TF CSE-515M-R804	1 1	Super X12SPW-TF Motherboard 1U Chassis
Cable	CBL-0483L	2	7pin SATA (STR to STR), 29cm, PBF
Cable	CBL-OTHR-1214-24	2	FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
Fan	FAN-0207L4	2	40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
Air Shroud	MCP-310-51507-0B	1	Mylar Air Shroud for SC515M + X11SPW/X12SPW
Riser Card	RSC-W-66G4	1	1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
Heatsink / Retention	SNK-P0077V	1	X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply	PWS-804P-1R	2	1U 800W 100-240VAC/50-60Hz, and DC240V input
*Power Distributor	PDB-PT515M-2424	1	1U support redundancy up to 800W for SC515M chassis with ATX
Notes: Parts with * are inside the chassis Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
	Part Number	Qty	Description
TPM security module	AOM-TPM-9671V	-	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
TPM security module	AOM-TPM-9670V	-	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
