SuperServer SYS-110P-FWTR

Intel Xeon Socket P+ (LGA-4189) 3rd Gen, 800W redundant PWS, 1U edge platform

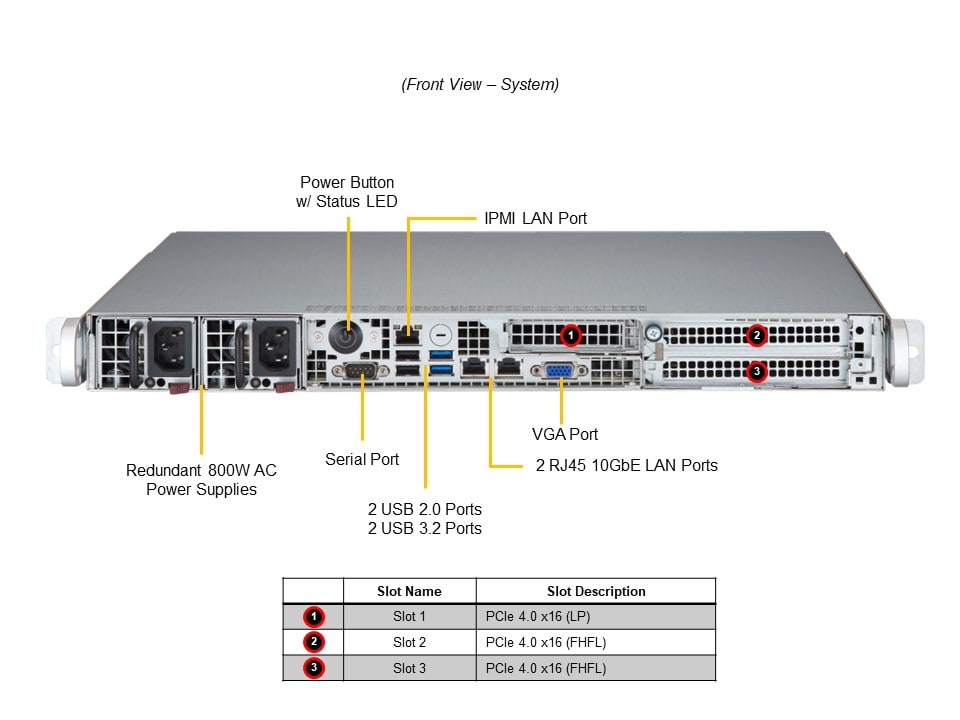

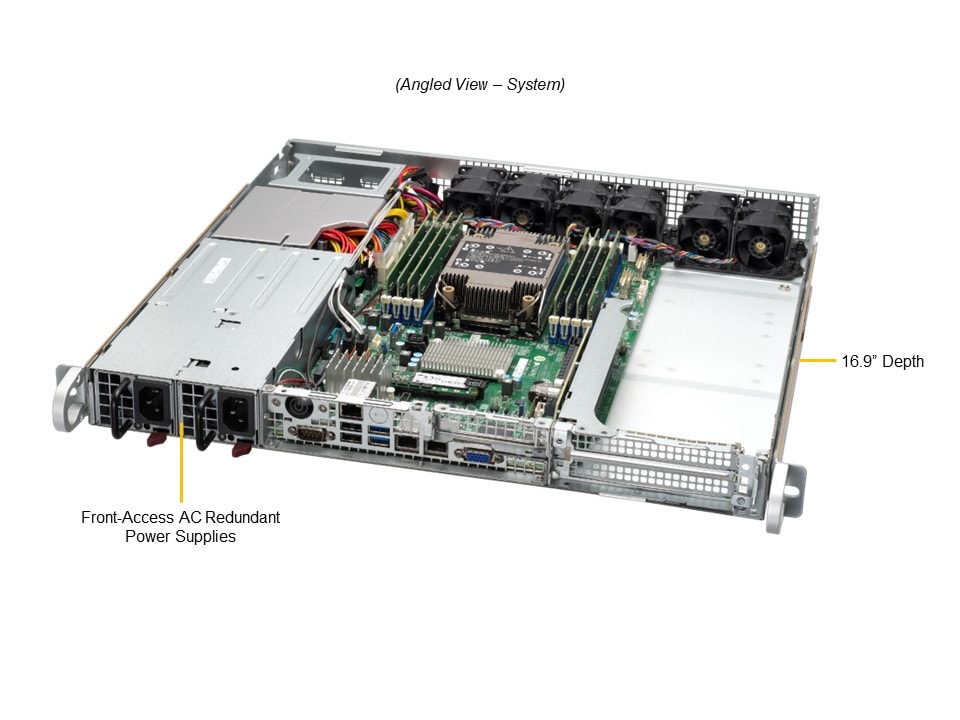

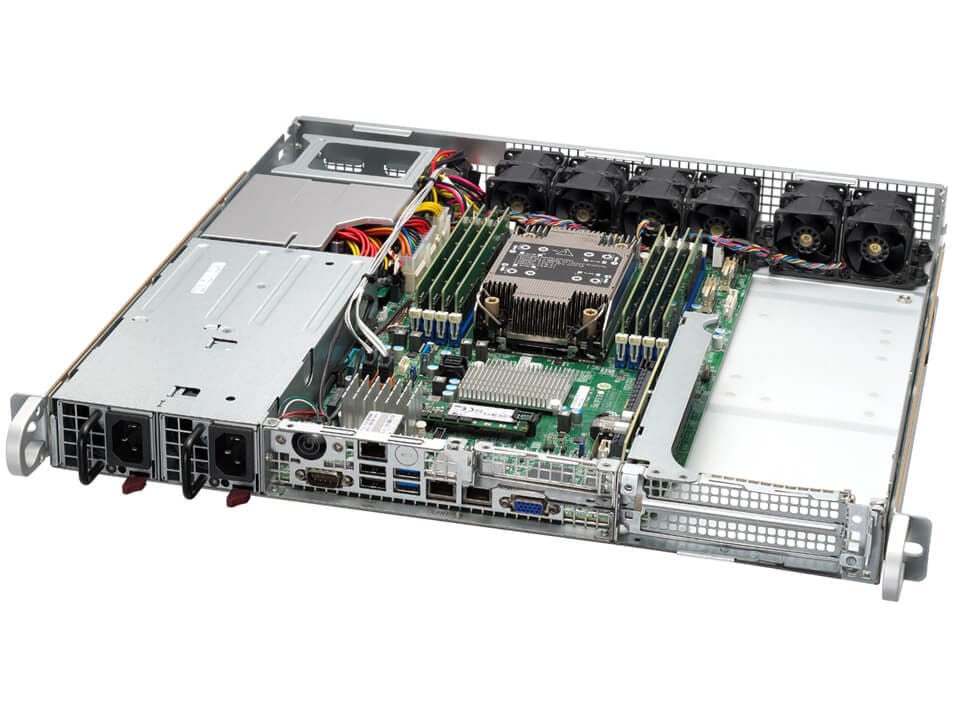

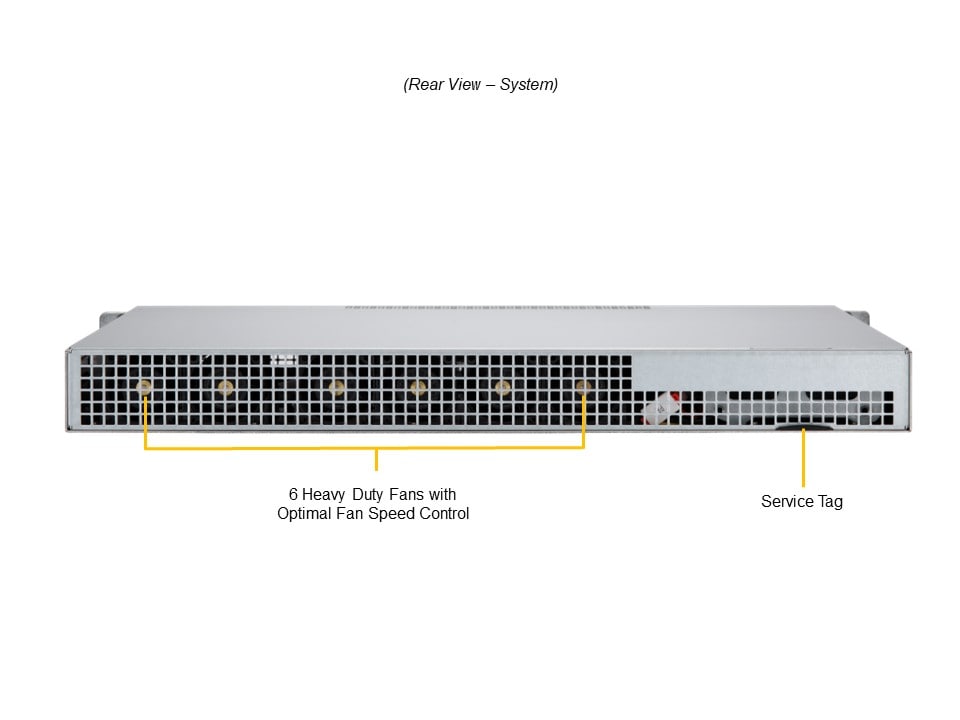

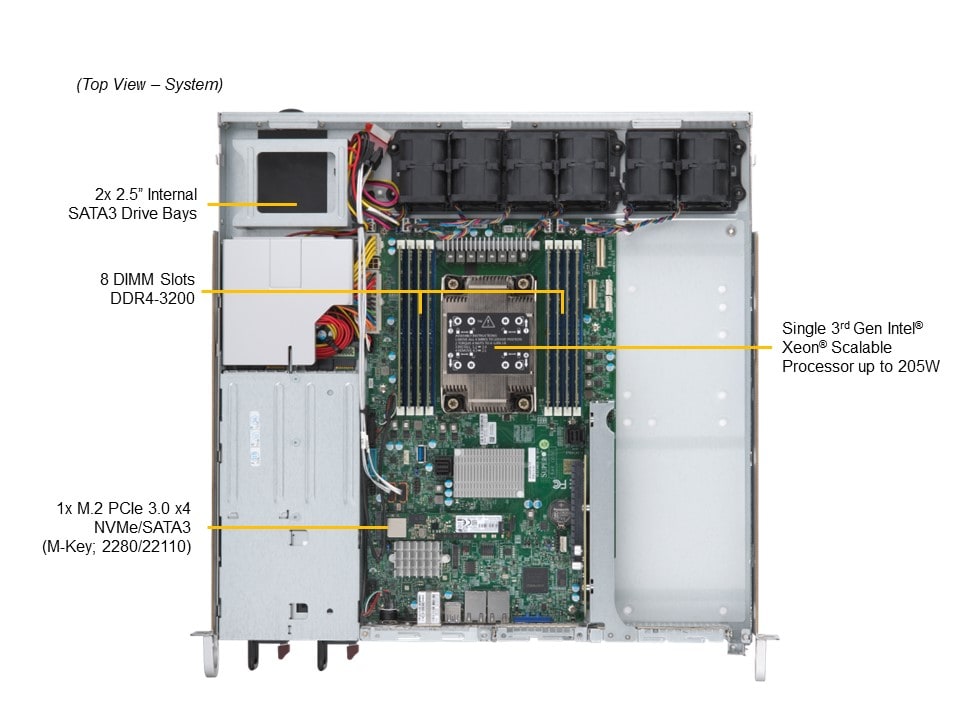

SYS-110P-FWTR Main SYS-110P-FWTR Angle SYS-110P-FWTR Top SYS-110P-FWTR Front SYS-110P-FWTR Rear
Integrated Board: X12SPW-TF
Learn more

Key Applications

  • Multi-Access Edge Computing
  • Flex-RAN, Open-RAN vBBU
  • Artificial Intelligence (AI) on Edge
  • DU of 5G Application
  • Satellite Communication

Key Features

  1. Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
  2. 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
  3. 2x 2.5" drive bays; 1 M.2 NVMe OR 1 M.2 SATA3
  4. 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
  5. 800W Redundant Power Supplies Level (94%+)
...
...
SYS-110P-FWTR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-110P-FWTR
Motherboard
Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache
Note
  • Supports 85W - 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2048GB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Intel® X550-AT2)
USB
  • 2 USB 2.0 Type-A ports
  • 2 Type-A ports
Video
  • 1 VGA port
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515B-R801W
Dimensions and Weight
Height
  • 1.7" (44.5 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 16.9" (429.3 mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 15 lbs (6.8 kg)
  • Net Weight: 10 lbs (4.54 kg)
Available Color
  • Silver
Front Panel
LED
  • LAN1 activity
  • LAN2 activity
  • Power status
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 6 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPW-TF

CSE-515B-R801W
1

1
Super X12SPW-TF Motherboard

1U Chassis
Cable CBL-0082L 1 Y SPLIT SATA POWER ADAPTER, PB FREE
CBL-0483L 2 7pin SATA (STR to STR), 29cm, PBF
Fan FAN-0167L4 2 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
Manual MNL-2406-QRG 1 110P-FWTR Quick Reference Guide
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
RSC-WR-6 1 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V OR 1 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
SNK-P0077P 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-804S-1R 2 800W 100-240Vac input, Platinum, base module PWS-804P-1R
*Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
1U WIO supporting bracket for SC515B AOC(AOC-P3IMB-M-P2) MCP-120-51501-0N 1 1U WIO supporting bracket for SC515B AOC(AOC-P3IMB-M-P2)
