SuperServer SYS-111E-FDWTR-OS1

1U Short-depth front I/O System with 2x 10G ports, 2x 2.5" drive bays, DC redundant PSU, and OpenBMC support

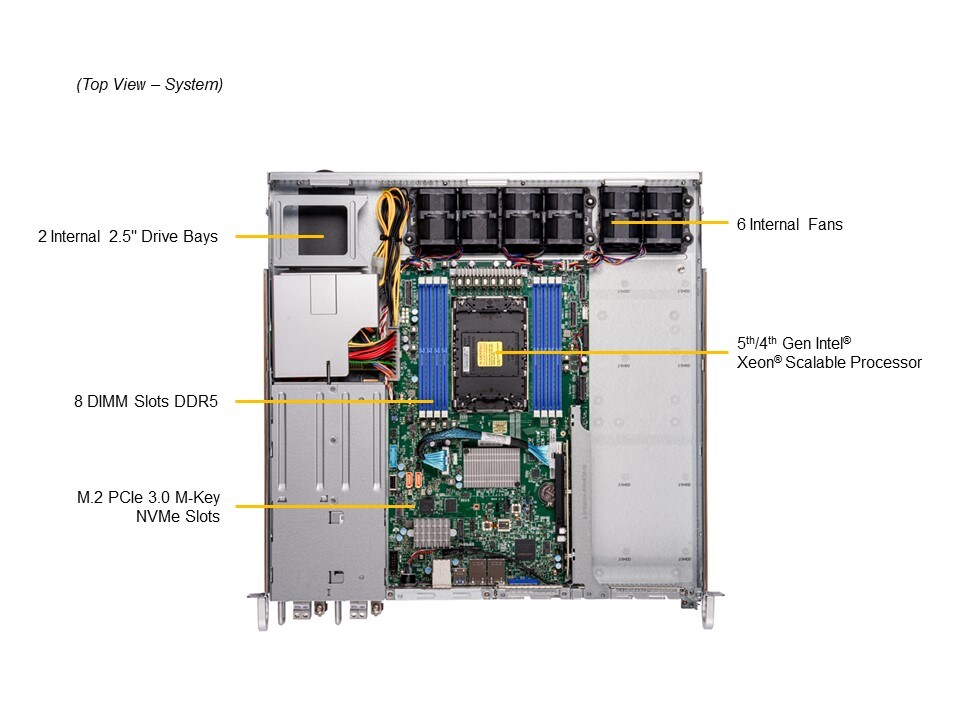

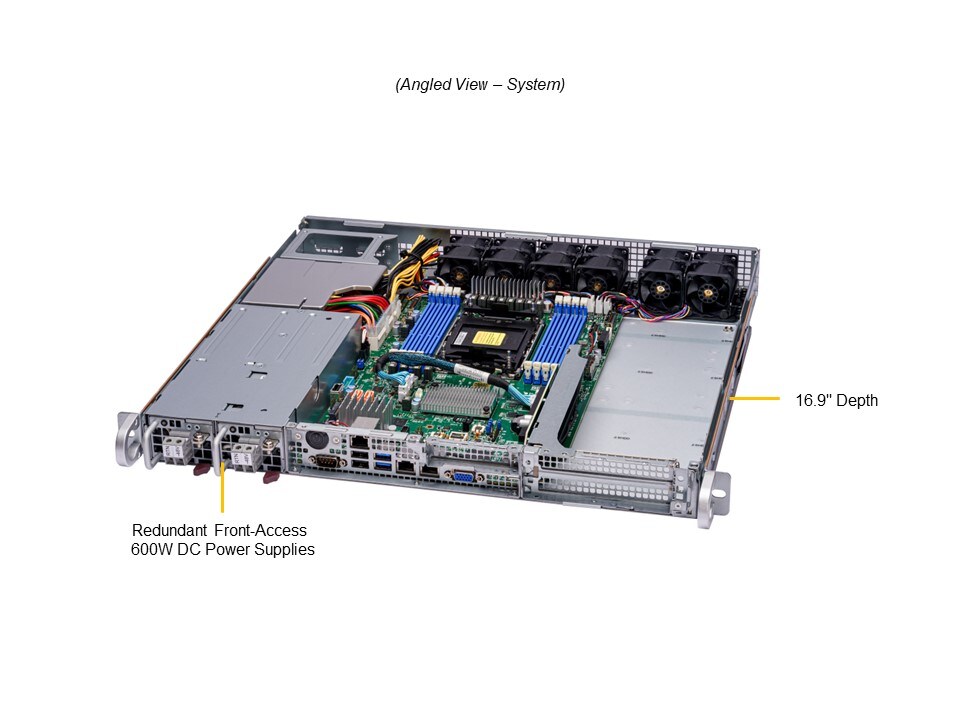

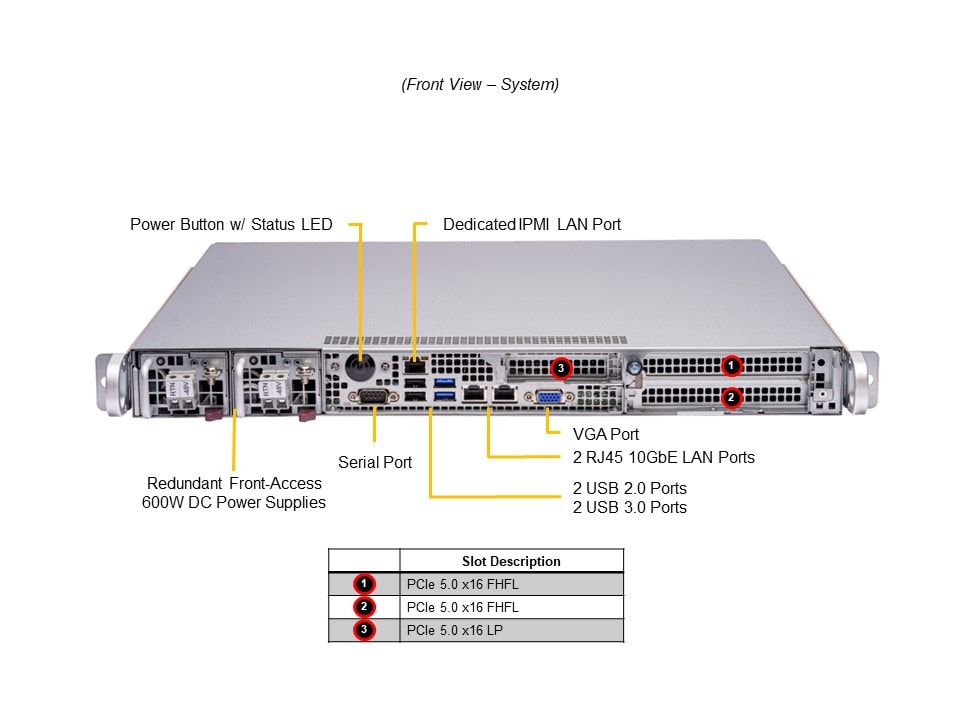

SYS-111E-FDWTR-OS1 Main SYS-111E-FDWTR-OS1 Angle SYS-111E-FDWTR-OS1 Top SYS-111E-FDWTR-OS1 Front SYS-111E-FDWTR-OS1 Rear
Integrated Board: X13SEW-TF-OS1
Learn more

Key Applications

  • Multi-Access Edge Computing
  • Flex-RAN, Open-RAN vBBU
  • Artificial Intelligence (AI) on Edge
  • DU of 5G Application
  • Satellite Communication
  • Support Supermicro Openbmc

Key Features

  1. Support 5th and 4th Gen Intel® Xeon® Scalable processors
  2. 8 DIMMs; Up to 2TB 3DS ECC DDR5-5600 RDIMM
  3. 2x 2.5" drive bays; 1 M.2 NVMe (PCIe 3.0 x2 from PCH)
  4. 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
  5. 600W DC Redundant Power Supplies Level
...
...
SYS-111E-FDWTR-OS1
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-111E-FDWTR-OS1
Motherboard
Super X13SEW-TF-OS1
Processor
CPU
Core Count
  • Up to 32C/64T; Up to 60MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support(Port 8 to 9)
Chipset
  • Intel® C741
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550-AT2
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Intel® X550-AT2)
USB
  • 2 USB 2.0 Type-A ports(front)
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 VGA port(Front)
TPM
  • 1 TPM header
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
Chassis
Form Factor
  • 1U
Model
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 16.9" (429 mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 14.99 lbs (6.8 kg)
  • Net Weight: 10.01 lbs (4.54 kg)
Available Color
  • No Paint
Front Panel
LED
  • Fan Fail/System Over Heat LED
  • Power LED
Buttons
  • Power On/Off button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 LP slot
    • 2 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 internal fixed 2.5" SATA drive bays
M.2
  • 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
System Cooling
Fans
  • 6 heavy duty with optimal speed control and 40x40x65mm Fan(s)
Power Supply
2x 600W
2x 600W Redundant (1 + 1) Typical 90%+ Level (96%) power supplies
Dimension (WxHxL)54.5 x 40 x 220 mm
Total Output Power
AC Input600W: -44--65Vdc / 50-60Hz
+12VMax: 50A / Min: 0A
Max: 50A
5V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Parts List
Optional Parts List
Part Number Qty Description
AOC supporting bracket MCP-120-51501-0N 1 1U WIO supporting bracket for SC515B AOC(AOC-P3IMB-M-P2)
Fan FAN-0163L4 • 6 Required when supports a 350W CPU
TPM security module AOM-TPM-9670V-O • 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
