SuperServer SYS-111E-FWTR

1U Short-depth front I/O System with 2x 10G ports, 2x 2.5" drive bays and AC redundant PSU

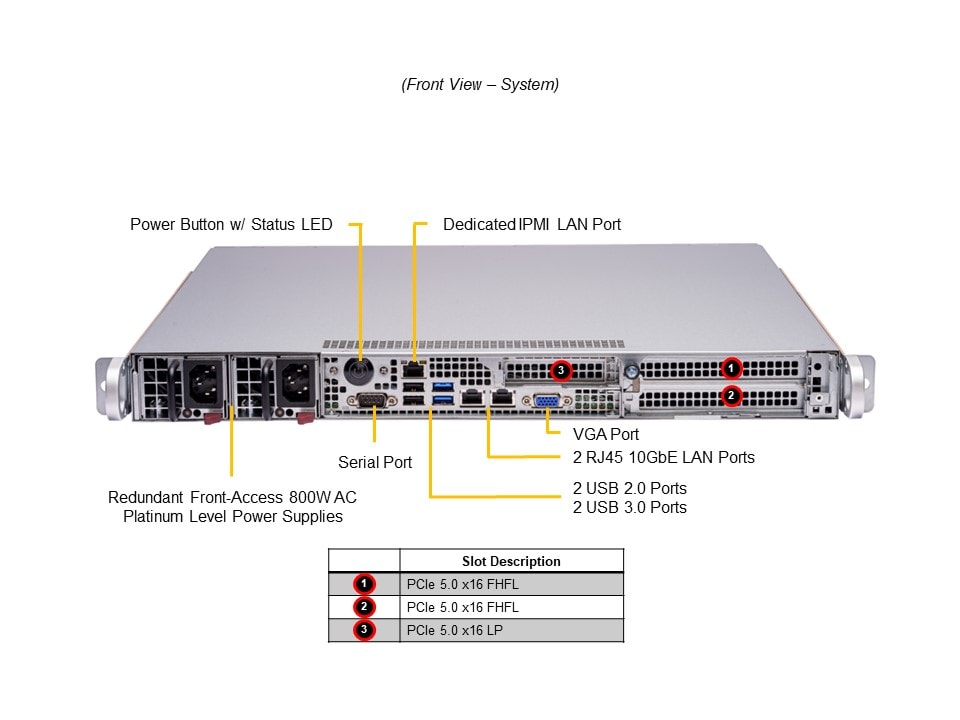

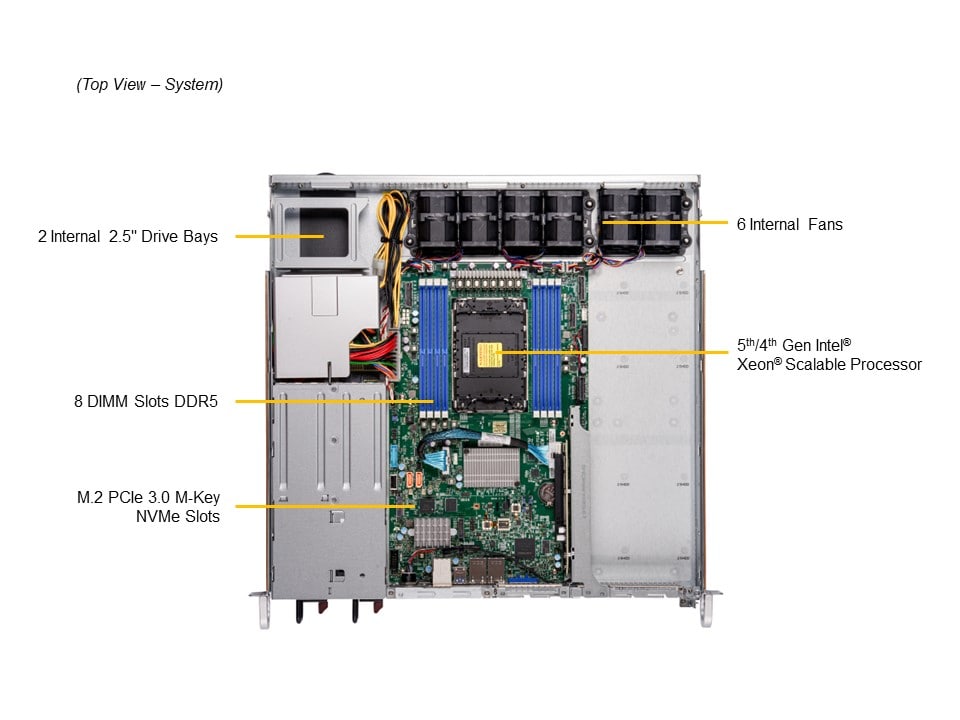

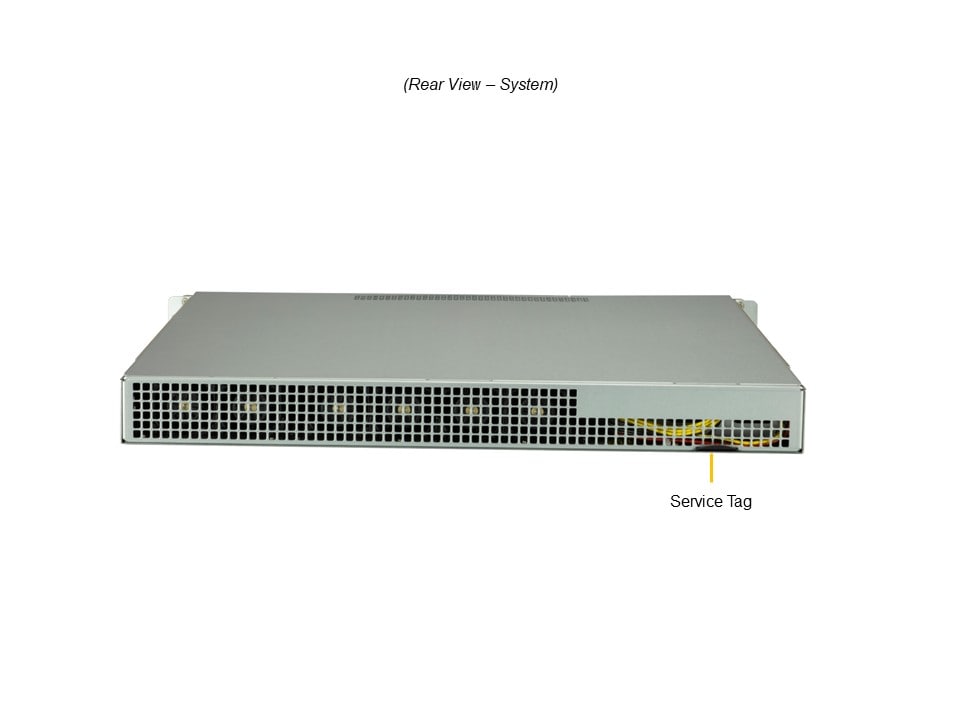

SYS-111E-FWTR Main SYS-111E-FWTR Angle SYS-111E-FWTR Top SYS-111E-FWTR Front SYS-111E-FWTR Rear
Integrated Board: X13SEW-TF
Learn more

Key Applications

  • Multi-Access Edge Computing
  • Flex-RAN, Open-RAN vBBU
  • Artificial Intelligence (AI) on Edge
  • DU of 5G Application
  • Satellite Communication

Key Features

  1. Support 5th and 4th Gen Intel® Xeon® Scalable processors
  2. 8 DIMMs; Up to 2TB 3DS ECC DDR5-5600 RDIMM
  3. 2x 2.5" drive bays; 1 M.2 NVMe (PCIe 3.0 x2 from PCH)
  4. 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
  5. 800W AC Redundant Power Supplies Level
...
...
SYS-111E-FWTR
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-111E-FWTR Standard version with PWS-804P-1R (Platinum Level)
SuperServer SYS-111E-FWTR-EU European version with PWS-862S-1R (Titanium Level)
Motherboard
Super X13SEW-TF
Processor
CPU
Core Count
  • Up to 32C/64T; Up to 60MB Cache
Note
  • Supports 85W - 350W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Intel® X550-AT2)
USB
  • 2 USB 2.0 Type-A ports
  • 2 USB 3.2 Gen1 Type-A ports
Video
  • 1 VGA port
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515B-R801W
Dimensions and Weight
Height
  • 1.7" (44.5 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 16.9" (429.3 mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 15 lbs (6.8 kg)
  • Net Weight: 10 lbs (4.54 kg)
Available Color
  • Silver
Front Panel
LED
  • LAN1 activity
  • LAN2 activity
  • Power status
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 6 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
2x 800W
2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)54.5 x 40.25 x 220 mm
AC Input100-127Vac
750W: 100-127Vac / 50-60Hz
200-240Vac
800W: 200-240Vac / 50-60Hz
230-240Vdc
800W: 230-240Vdc / 50-60Hz
+12VMax: 62.5A / Min: 0.5A (100Vac-127Vac)
Max: 62.5A / Min: 0A (100Vac-127Vac)
Max: 66.6A / Min: 0.5A (200Vac-240Vac)
Max: 66.6A / Min: 0A (200Vac-240Vac)
Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
Max: 66.6A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SEW-TF

CSE-515B-R801W 		1

1 		Super X13SEW-TF Motherboard

1U Chassis
Cable CBL-0082L 1 Y SPLIT SATA POWER ADAPTER, PB FREE
CBL-0483L 2 7pin SATA (STR to STR), 29cm, PBF
CBL-MCIO-1218M5 OR 1 MCIO x8 (STR to STR),18CM,85OHM,RoHS
CBL-MCIO-1218M5-1 MCIO x8 (STR to STR),18CM,85OHM,RoHS
Fan FAN-0167L4 2 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
Manual MNL-2570-QRG 1 111E-FWTR/FDWTR Quick Reference Guide
Riser Card RSC-W-66G5 1 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
RSC-WR-6G5+ 1 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoH
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0087P 1 1U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
*Power Supply PWS-804S-1R 2 800W 100-240Vac input, Platinum, base module PWS-804P-1R
*Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
AOC supporting bracket MCP-120-51501-0N 1 1U WIO supporting bracket for SC515B AOC(AOC-P3IMB-M-P2)
Fan FAN-0163L4 • 6 Required when supports a 350W CPU
TPM security module AOM-TPM-9670V-O • 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
